Hydro:Evolved User Manual

From the MISCELLANEOUS menu, scroll and select Enable Construction Box.

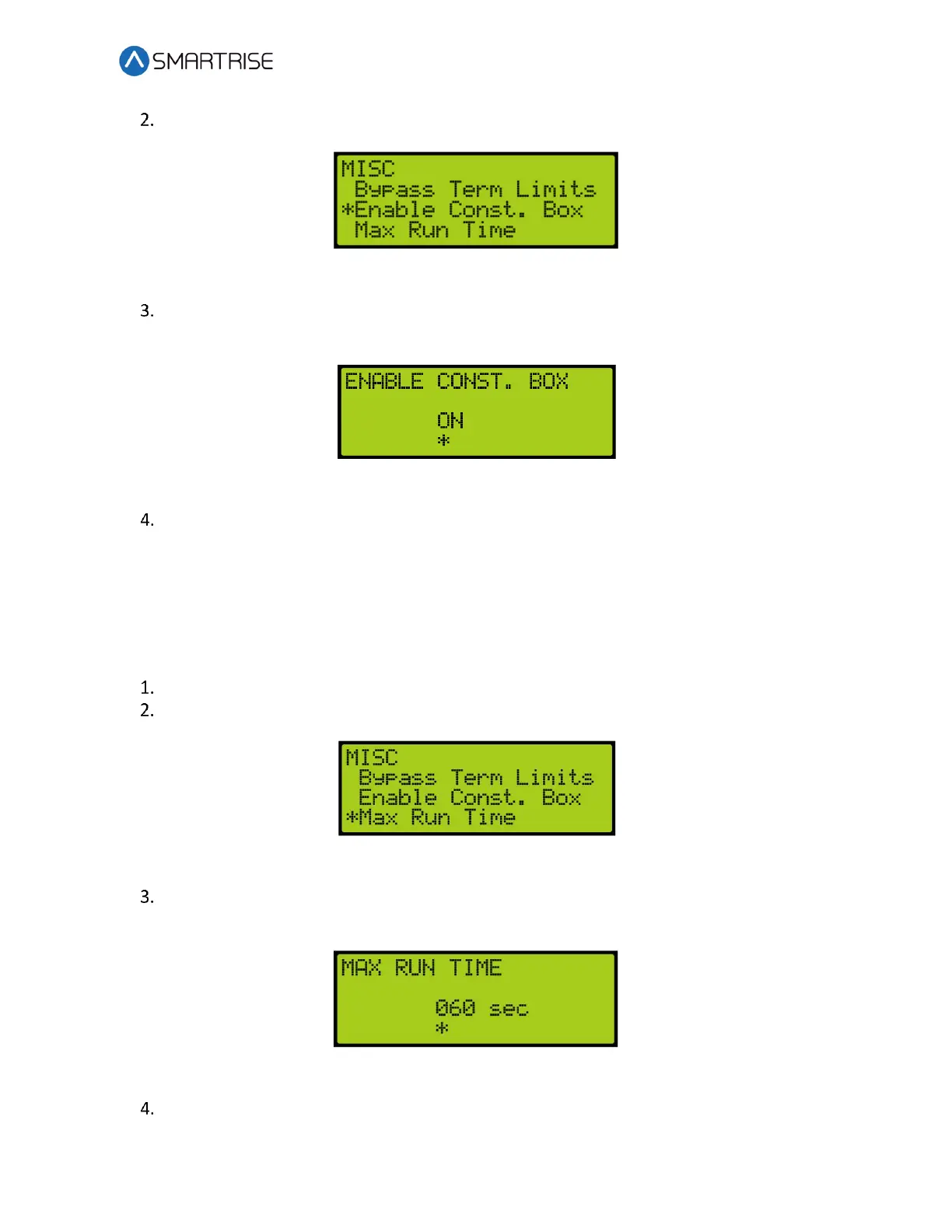

Figure 373: MISCELLANEOUS Menu – Enable Construction Box

From the ENABLE CONSTRUCTION BOX menu, scroll and select ON to enable the

construction box.

Figure 374: ENABLE CONSTRUCTION BOX Menu

Scroll right and press Save.

27.3 Maximum Run Time

The maximum run time is the maximum time that the car can run floor to floor.

The following procedure describes how to set the maximum run time.

Navigate to MAIN MENU | SETUP | MISCELLANEOUS. See Figure 57.

From the MISCELLANEOUS menu, scroll and select Maximum Run Time.

Figure 375: MISCELLANEOUS Menu – Max Run Time

From the MAXIMUM RUN TIME menu, set the maximum time the car runs before a fault

occurs.

Figure 376: MAXIMUM RUN TIME Menu

Scroll right and press Save.
