32 Status
The status of each functionality can be viewed to determine which functions are active.
32.1 Input Status
The Input status displays the status for the configured inputs to the MR board.
The following procedure describes how to view the input status.
Navigate to MAIN MENU | STATUS | INPUTS. See Figure 44.
From the INPUTS BY FUNCTION menu, scroll and select the type of input.

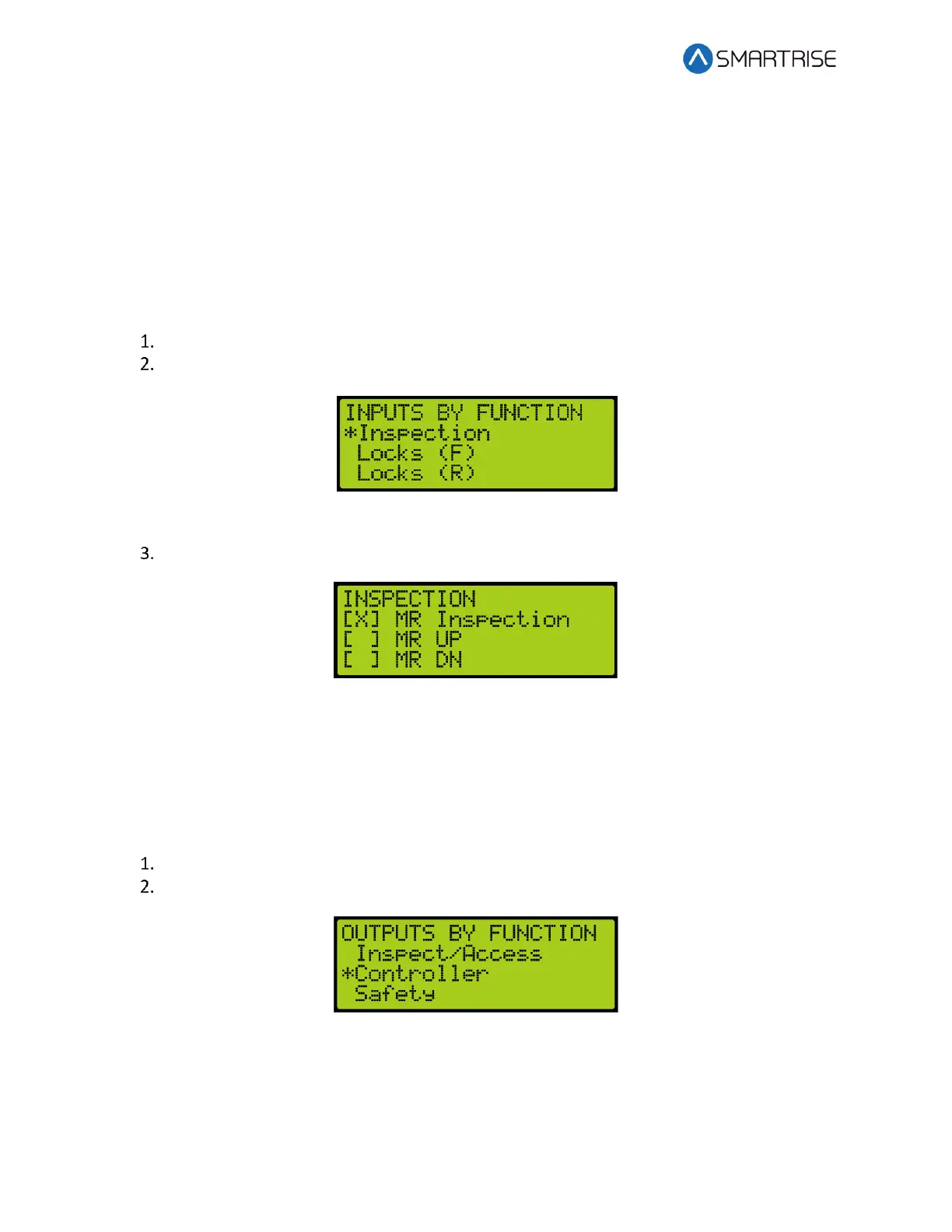

Figure 527: INPUTS BY FUNCTION Menu –Inspection
From the INSPECTION menu, view the status of the configured input.
Figure 528: INSPECTION Menu
32.2 Output Status
The Output status displays the status for the configured outputs from the MR board.
The following procedure describes how to view the output status.
Navigate to MAIN MENU | STATUS | OUTPUTS. See Figure 44.
From the OUTPUTS BY FUNCTION menu, scroll and select the type of output.
Figure 529: OUPTUS BY FUNCTION Menu –Controller
