Hydro:Evolved User Manual

11.3 Test Buffer Speed

The test buffer speed is the set speed during buffer tests.

• If the speed is set equal to contract speed, the car will move in high speed.

• If the speed is anything else than contract speed, the car will move at leveling speed.

NOTE: Maximum speed is 200 fpm.

The following procedure describes how to set the test buffer speed.

Navigate to MAIN MENU | SETUP | SPEEDS. See Figure 55.

From the SPEEDS menu, scroll and select Test Buffer Speed.

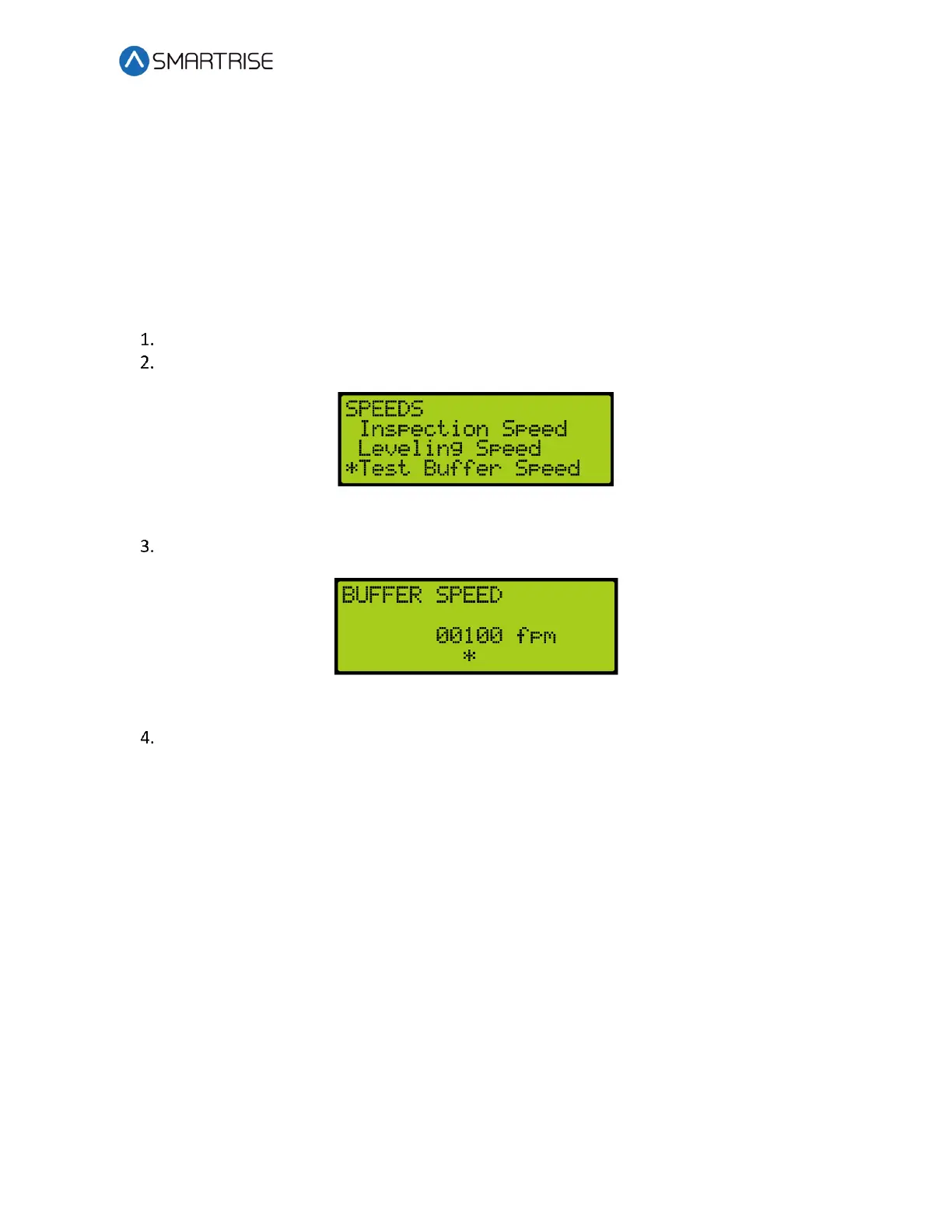

Figure 118: SPEEDS Menu – Test Buffer Speed

From the BUFFER SPEED menu, set the speed when leveling a car to a floor.

Figure 119: BUFFER SPEED Menu

Scroll right and press Save.
