Hydro:Evolved User Manual

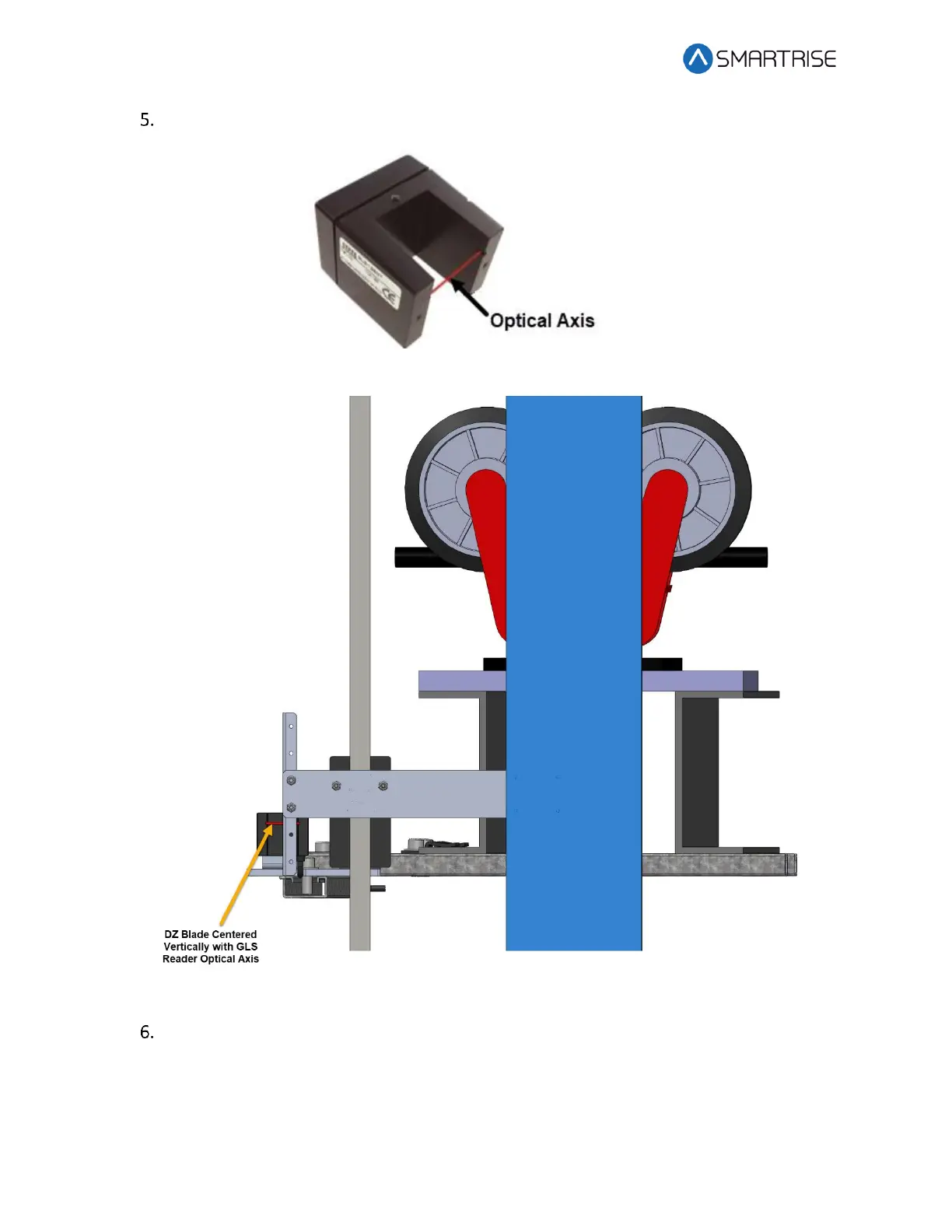

Verify that the DZ blade is vertically centered with the GLS Reader optical axis.

Figure 95: Optical Axis

Figure 96: Tape Clip Assembly Placement (Rear View)

Are there any bolts or obstructions preventing the Tape Clip Assembly to be placed

where needed?

a. If there are bolts or other obstructions, remove the two screws, washers and nuts

securing the DZ blade and adjust the blade up or down. Go to step 7.

b. If there are no obstructions, go to step 9.
