Hydro:Evolved User Manual

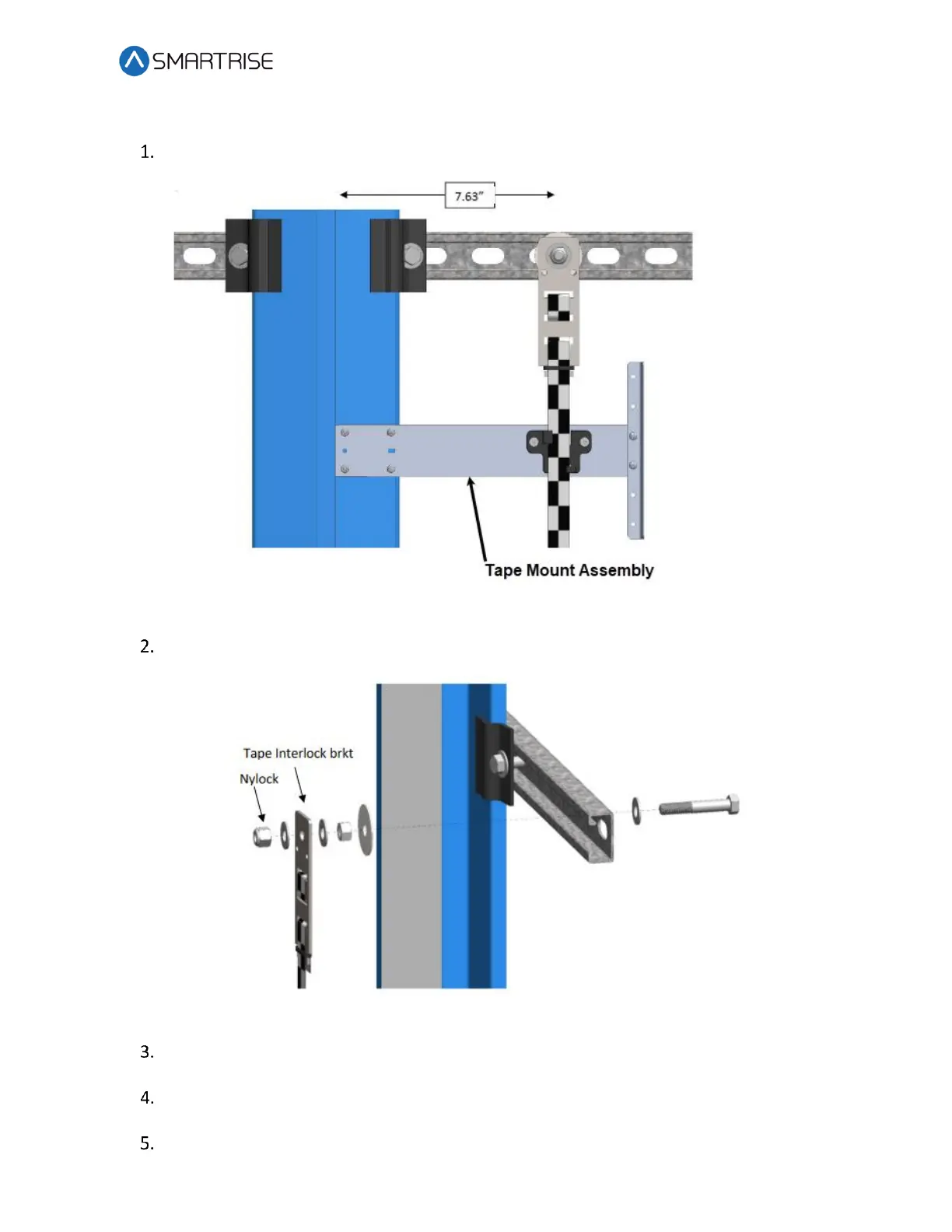

The following procedure describes how to install the Upper Tape Mount Assembly.

Affix an 18” length of Unistrut to the top of the guide rail.

Figure 89: Upper Tape Unistrut Installation

Loosely attach the hardware to the Upper Tape Mount Assembly.

Figure 90: Hardware

Position the Upper Tape Mount assembly 7.63” from the wheel surface of the guide rail

to the center of the 3/8” bolt. See Figure 89.

Temporarily affix a Tape Clip Assembly to the guide rail and onto the tape to verify

location.

Tighten the first hex nut to secure the assembly in place.
