Hydro:Evolved User Manual

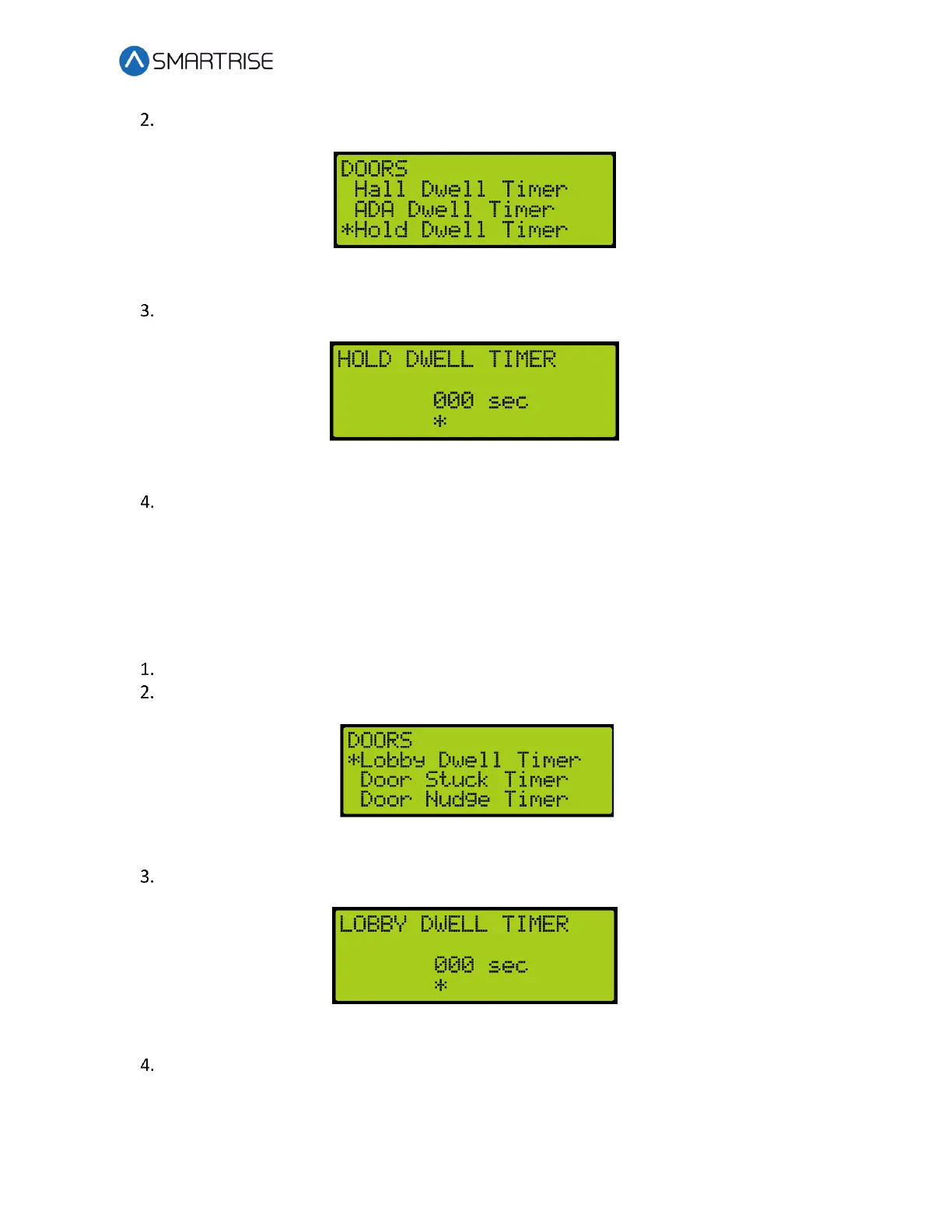

From the DOORS menu, scroll and select Hold Dwell Timer.

Figure 188: DOORS Menu – Hold Dwell Timer

From the HOLD DWELL TIMER menu, set the time the doors stay open.

Figure 189: HOLD DWELL TIMER Menu

Scroll right and press Save.

14.6 Lobby Dwell Timer

The lobby dwell timer is the time the doors stay open when the car answers calls in the lobby.

The following procedures describe how to set the lobby dwell timer.

Navigate to MAIN MENU | SETUP | DOOR SETUP. See Figure 55.

From the DOORS menu, scroll and select Lobby Dwell Timer.

Figure 190: DOORS Menu – Lobby Dwell Timer

From the LOBBY DWELL TIMER menu, set the time the doors stay open.

Figure 191: LOBBY DWELL TIMER Menu

Scroll right and press Save.
