Hydro:Evolved User Manual

27.13.1 Default Floors

The user has the option to restore the original learned floors.

The following procedure describes how to select default floors.

Navigate to MAIN MENU | SETUP | MISCELLANEOUS. See Figure 57.

From the MISCELLANEOUS menu, scroll and select Default.

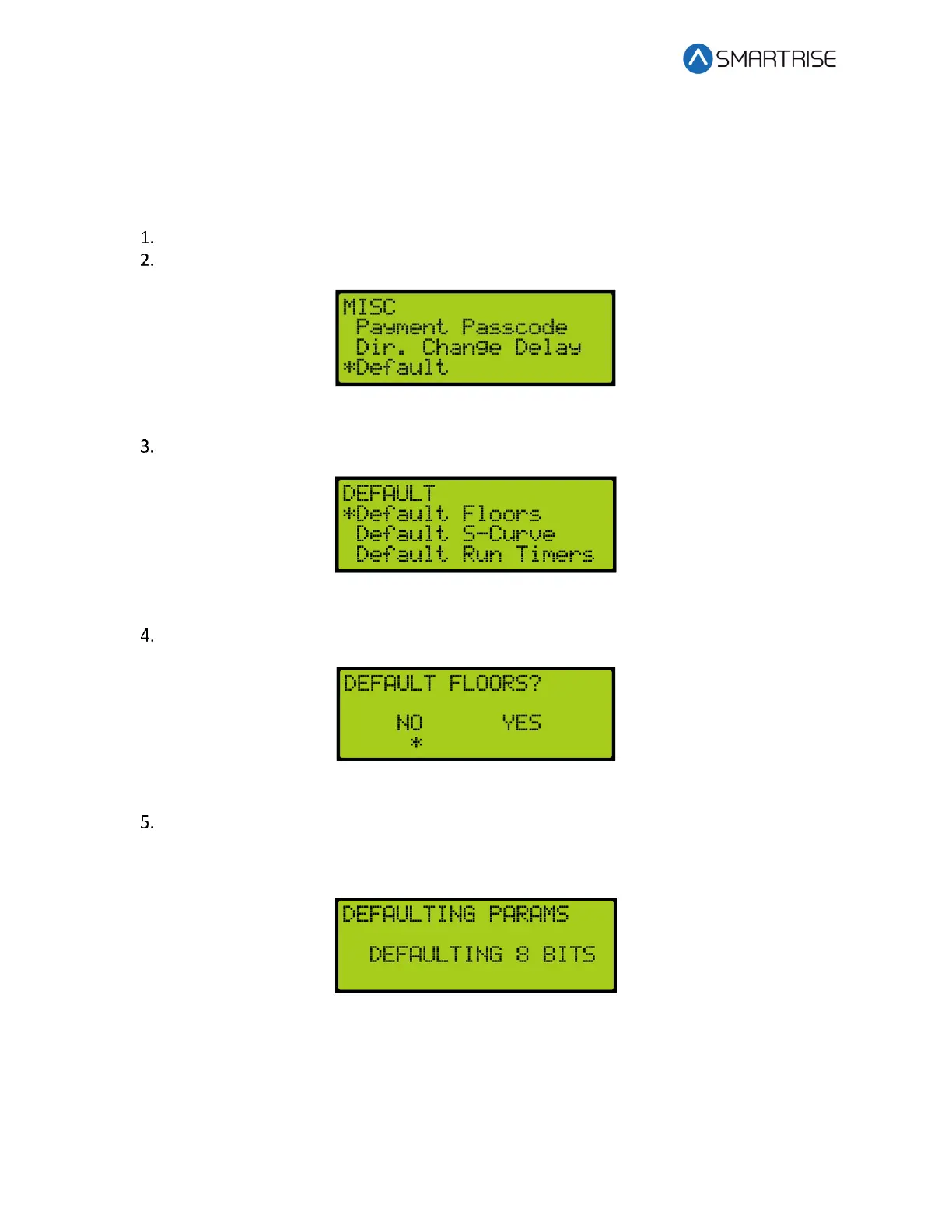

Figure 409: MISCELLANEOUS Menu – Default

From the DEFAULT menu, scroll and select Default Floors.

Figure 410: DEFAULT Menu – Default Floors

From the DEFAULT FLOORS menu, select if restoring original learned floors.

Figure 411: DEFAULT FLOORS? Menu

From the DEFAULT FLOORS? menu, select Yes to default floors.

NOTE: If not defaulting floors, select NO to back out.

Only the Learned floor values are defaulted as shown in the figure below.

Figure 412: DEFAULTING PARAMETERS Menu
