38.9.1 Motion Status
The motion status displays the current motion of the car, the start and stop condition, and the
type of profile.
The following procedure describes how to view the status of the motion for the car.
Navigate to MAIN MENU | DEBUG | Module Statuses. See Figure 65.
From the MODULE STATUS menu, scroll and select Motion Status.

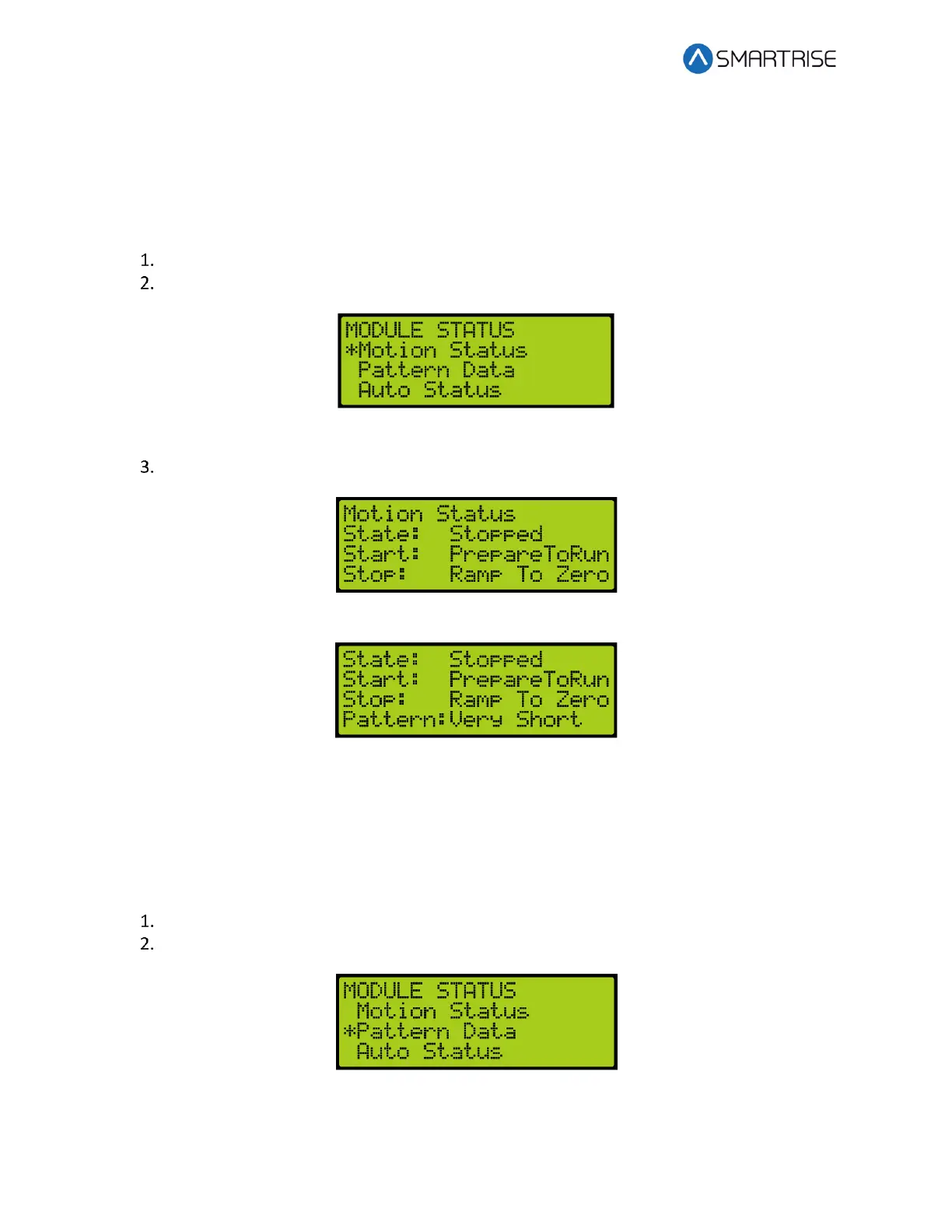

Figure 607: MODULE STATUS Menu – Motion Status
From the Motion Status menu, scroll and view the Motion Status information.
Figure 608: Motion Status Menu Part 1 of 2
Figure 609: Motion Status Menu Part 2 of 2
38.9.2 Pattern Data
The pattern data is the information used to determine traffic.
The following procedure describes how to view the pattern data for the car.
Navigate to MAIN MENU | DEBUG | Module Statuses. See Figure 65.
From the MODULE STATUS menu, scroll and select Pattern Data.
Figure 610: Module Status Menu – Pattern Data
