Hydro:Evolved User Manual
October 2022 © 2022 Smartrise Engineering, Inc. All Rights Reserved Page 73
6.2 Construction Mode
All connections regarding safety are functional during Construction Mode.
See the Hydro:Evolved Soft Starter Startup Manual provided with your controller to show how
to wire the Construction Box.
6.3 Soft Starter Setup
The soft starter is connected to the Valve board and the motor.
The three common I/O to the soft starter are:
• Neutral – The Neutral signal comes through the fault contactor to the soft starter to
control the torque to the motor.
• SM (Start Motor) – The SM signal comes from the Valve board to enable the soft starter
to activate. The soft starter then provides a ramp up voltage to the motor.
• SS Fault – The soft start outputs a fault notification to the MR board when a fault occurs
within the soft starter.
See Hydro:Evolved sheet 8 Soft Starter for wiring information.
7 Inspection Mode
Prior to running on inspection operation, all connections need to be made from the MR to the
CT and CT to COP. See the Hydro:Evolved Controller sheet 5 MR Board, sheet 13 Traveler/Safety
String, sheet 13 CT board and sheet 17 COP Board for wiring information.
7.1 Standard Modes of Inspection
Machine room inspection is available using the MR INSPECTION switch. The car can be run from
the UP and DOWN buttons located on the MR board. This form of inspection is overridden by
the Hoistway Access and CT Inspection.

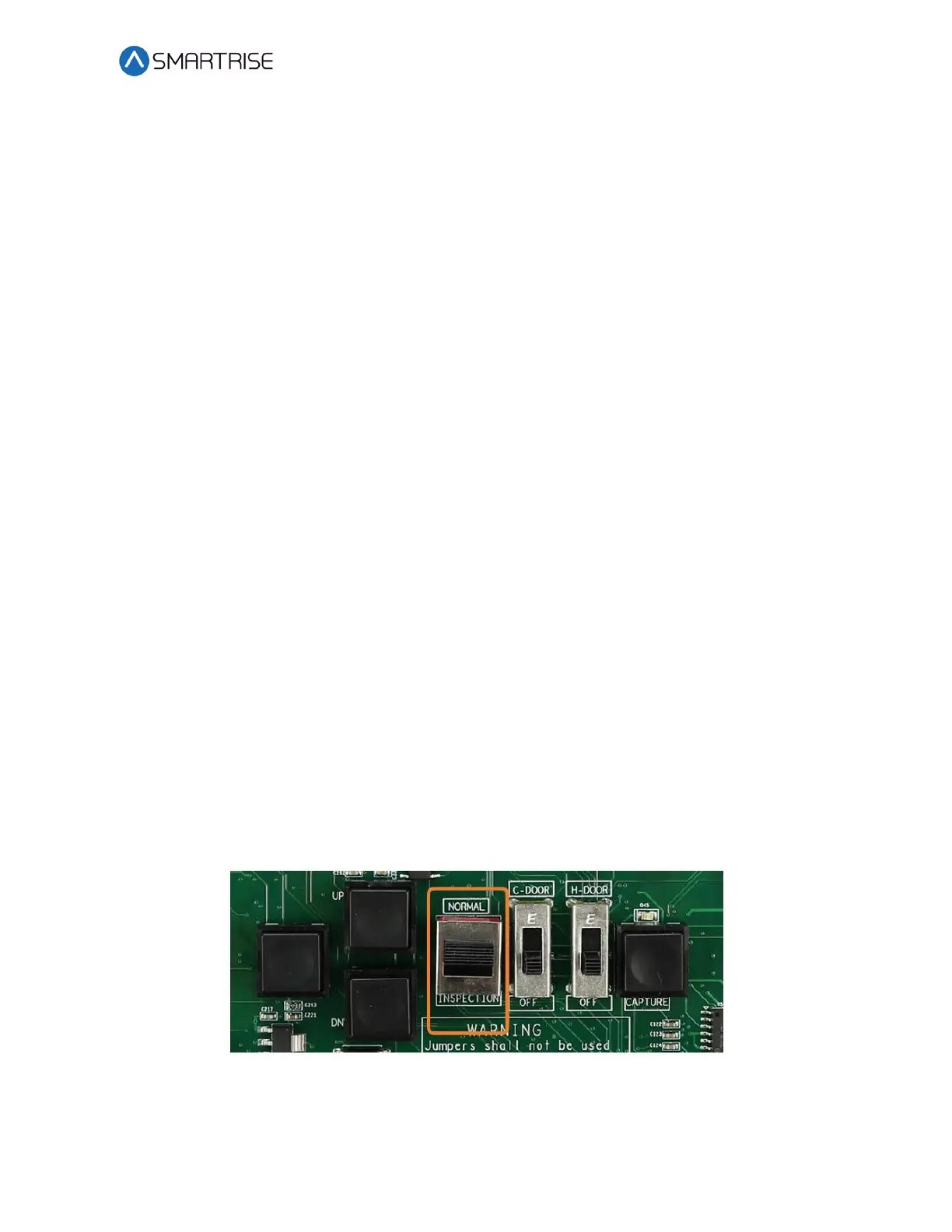

Figure 75: MR INSPECTION Switch
