Hydro:Evolved User Manual
October 2022 © 2022 Smartrise Engineering, Inc. All Rights Reserved Page 167

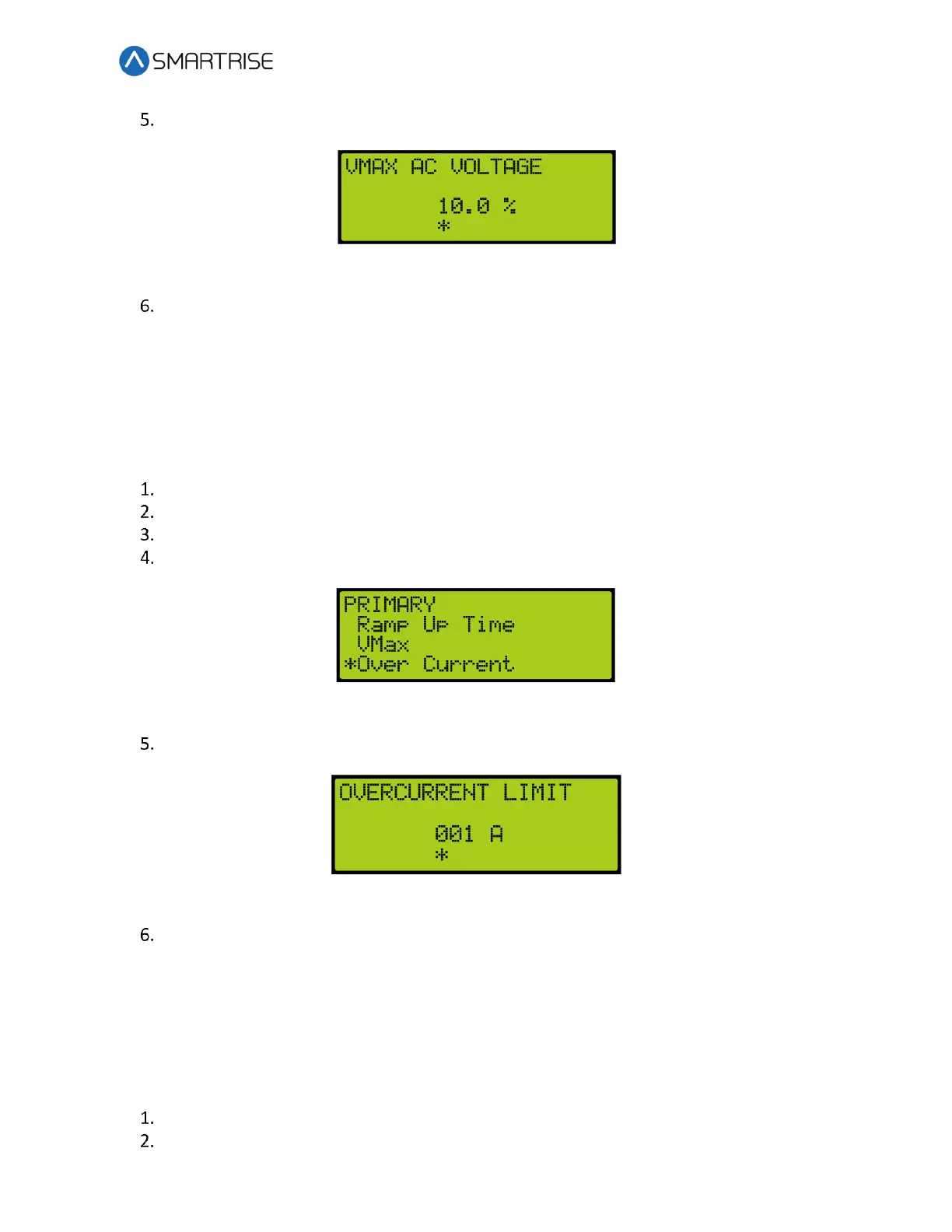

From the VMAX AC VOLTAGE menu, set the percentage of the maximum voltage.
Figure 289: VMAX AC VOLTAGE Menu
Scroll right and press Save.
18.3.2.3 Over Current
Current limitations are set to prevent the motor from overheating. See the manufacturers Soft
Starter User Manual for more information.
The following procedure describes how to set the overcurrent limit.
Navigate to MAIN MENU | SETUP | HYDRO. See Figure 60.
From the HYDRO SETUP menu, scroll and select Soft Starter. See Figure 282.
From the SOFT STARTER menu, scroll and select Primary. See Figure 285.
From the PRIMARY menu, scroll and select Over Current.
Figure 290: PRIMARY Menu – Over Current
From the OVERCURRENT menu, enter the maximum current allowed.
Figure 291: OVERCURRENT Menu
Scroll right and press Save.
18.3.2.4 Over Temperature
When an over temperature condition occurs, the soft starter goes into recovery mode. This will
in turn shut down the motor to prevent internal damage to the motor.
The following procedure describes how to set the over temperature limit.
Navigate to MAIN MENU | SETUP | HYDRO. See Figure 60.
From the HYDRO SETUP menu, scroll and select Soft Starter. See Figure 282.
