Hydro:Evolved User Manual

9.5 Lower Tape Mount Assembly

See Figure 88 for the location of the Lower Tape Mount Assembly.

The following procedure describes how to install the Lower Tape Mount Assembly.

Affix an 18” length of Unistrut to the bottom of the guide rail.

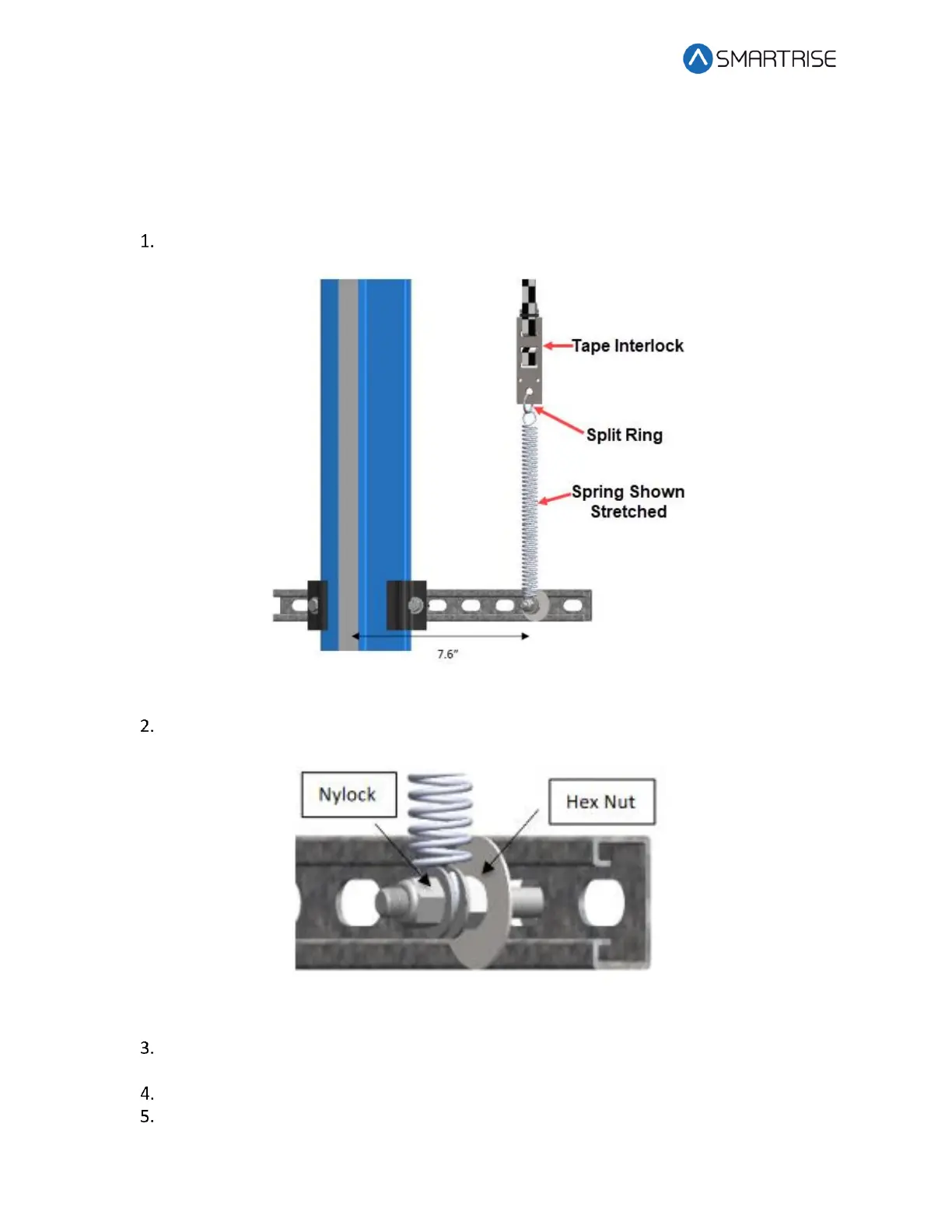

Figure 98: Lower Tape Mount Assembly

Loosely attach the hardware to the Lower Tape Mount Assembly.

Figure 99: Hardware to Lower Tape Mount Assembly

Position the Lower Tape Mount Assembly 7.6” from the surface of the guide rail to the

center of the 3/8” bolt. See Figure 98.

Tighten the first hex nut to secure the Lower Tape Mount Assembly in place.

Thread the Nylock nut onto the bolt until the two flat washers located on each side of

the spring are just touching the spring loop. This nut does not need to be tightened.
