back. To address this situation, the car’s destination offset has to be adjusted. The offset
destinations cause the car to stop its run shy of the ON position in order to compensate for the
movement that occurs after the leveling valve is cut.
18.4.3.1 Destination Offset
The destination offset determines when to cut the leveling valves, when the car is leveling
towards the destination landing. This is the sliding distance after the leveling valves are cut and
the car comes to a stop to the destination landing.
If the car has a proper steady state leveling time but still overshoots the learned floor position
and stops outside the dead zone and relevels, set the destination offset up or destination offset
down depending on which direction the car is moving.
Perform the following procedure to set the up or down offset.
Navigate to MAIN MENU | SETUP | HYDRO. See Figure 60.
From the HYDRO SETUP menu, scroll and Destination Offset Up or Down. The values are
set after determing how far the cars have overshot the landing.

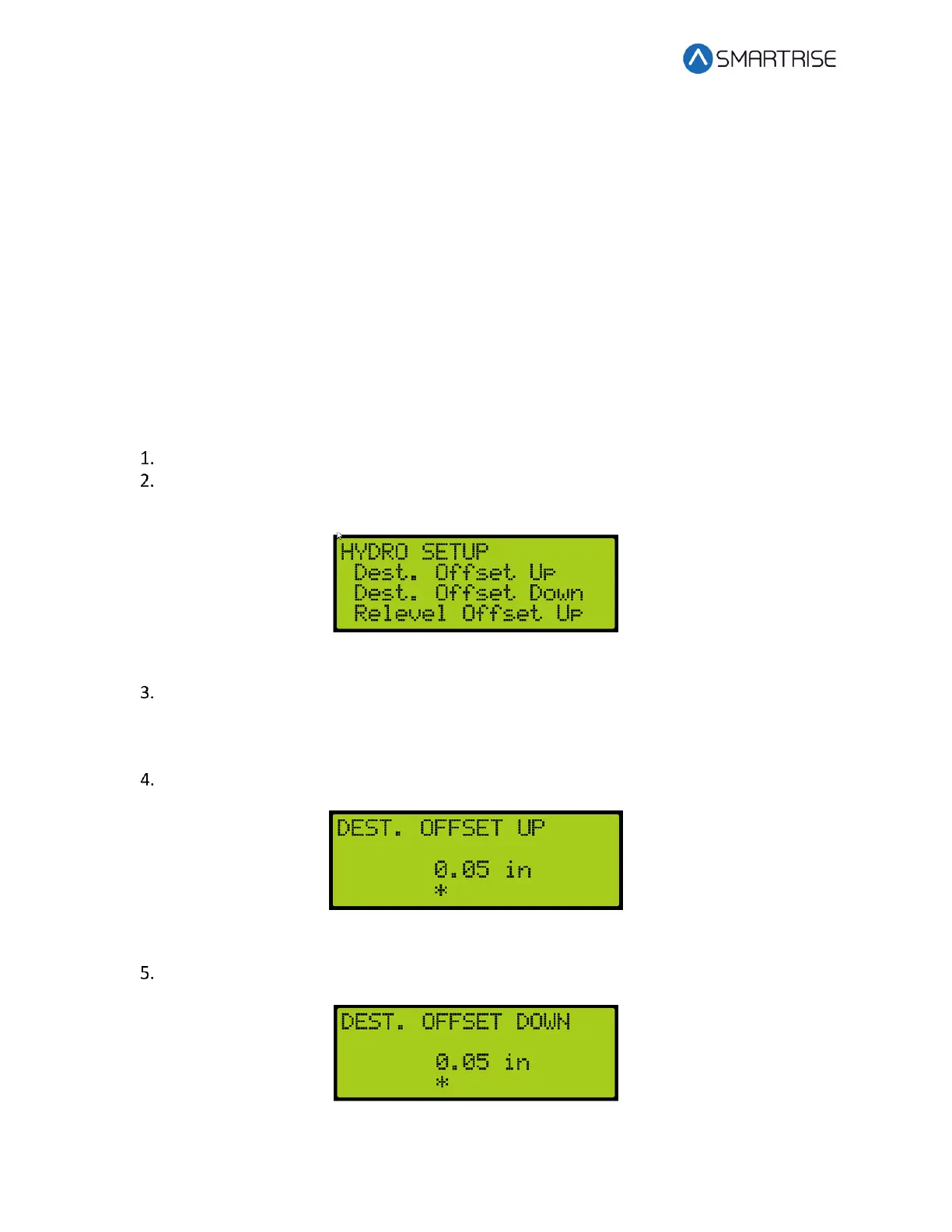

Figure 309: HYDRO SETUP Menu – Destination Offset (Up or Down)
Does the car stop outside the dead zone?
a. If the car is moving in up direction and stops outside the dead zone, got to step 4.
b. If the car is moving in down direction and stops outside the dead zone, go to step 5.
Increase the up offset by 0.5in. Go to step 6.
Figure 310: DESTINATION OFFSET UP Menu
Increase the down offset by 0.5in.
Figure 311: DESTINATION OFFSET Down Menu
