Hydro:Evolved User Manual

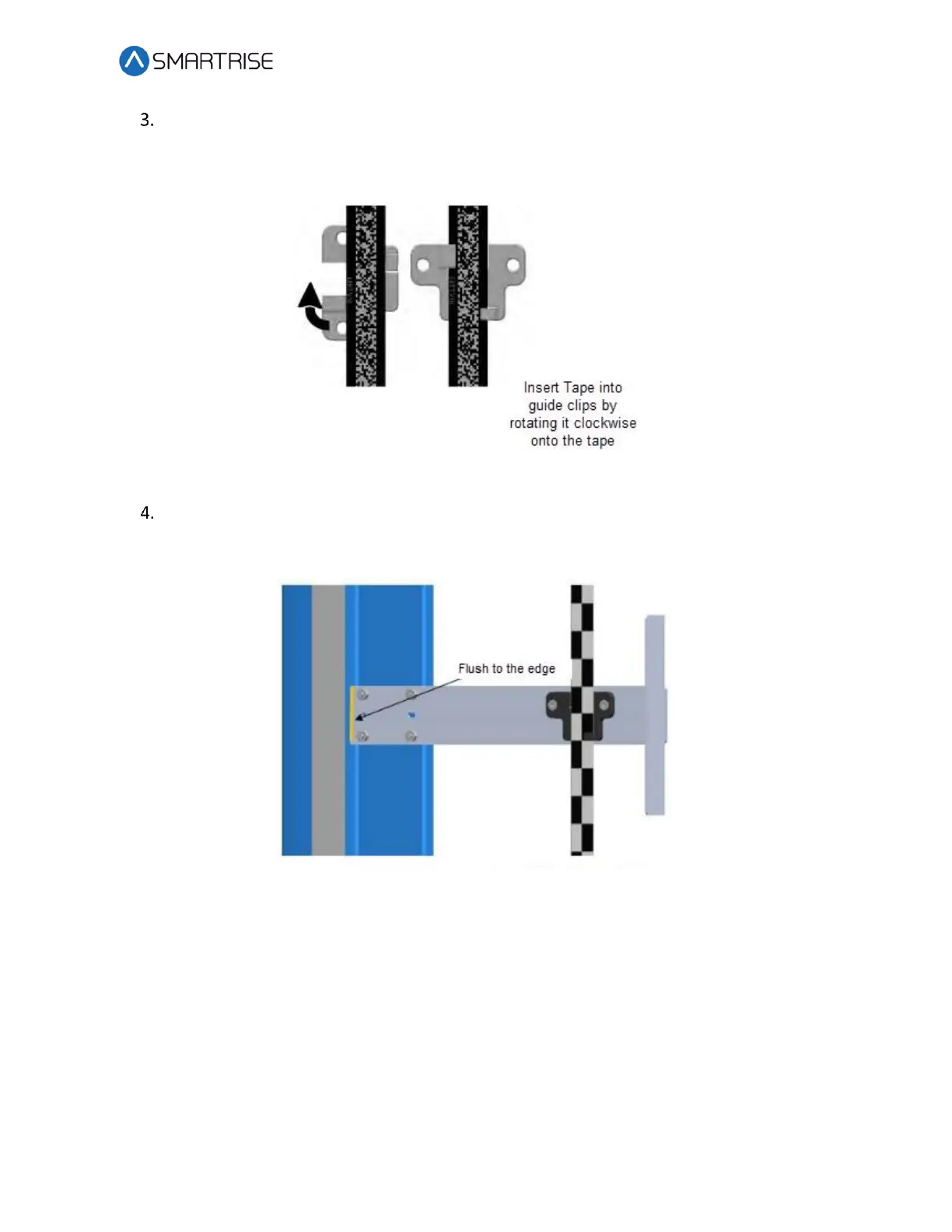

Holding the Tape Clip Assembly with one hand and the tape with the other, rotate the

tape into the tape clip.

CAUTION: Do not twist or bend the tape as this may damage the tape.

Figure 93: Tape Clip Insertion

Place the Tape Clip Assembly onto the guide rail with the edge flush to the rail.

CAUTION: There are strong magnets. Do not remove the bracket from the rail by pulling

the bracket from the far end as this may bend the bracket.

Figure 94: Tape Clip Assembly Alignment
