Smartrise HYDRO:EVOLVED User Manual

Hydro:Evolved User Manual
Page 160 © 2022 Smartrise Engineering, Inc. All Rights Reserved October 2022
To determine the value of the address, use the table below and add the corresponding values
of each of the function IDs serviced by the car.
The table below lists the Hall board 10 DIP Hall Mask Mapping switch settings.

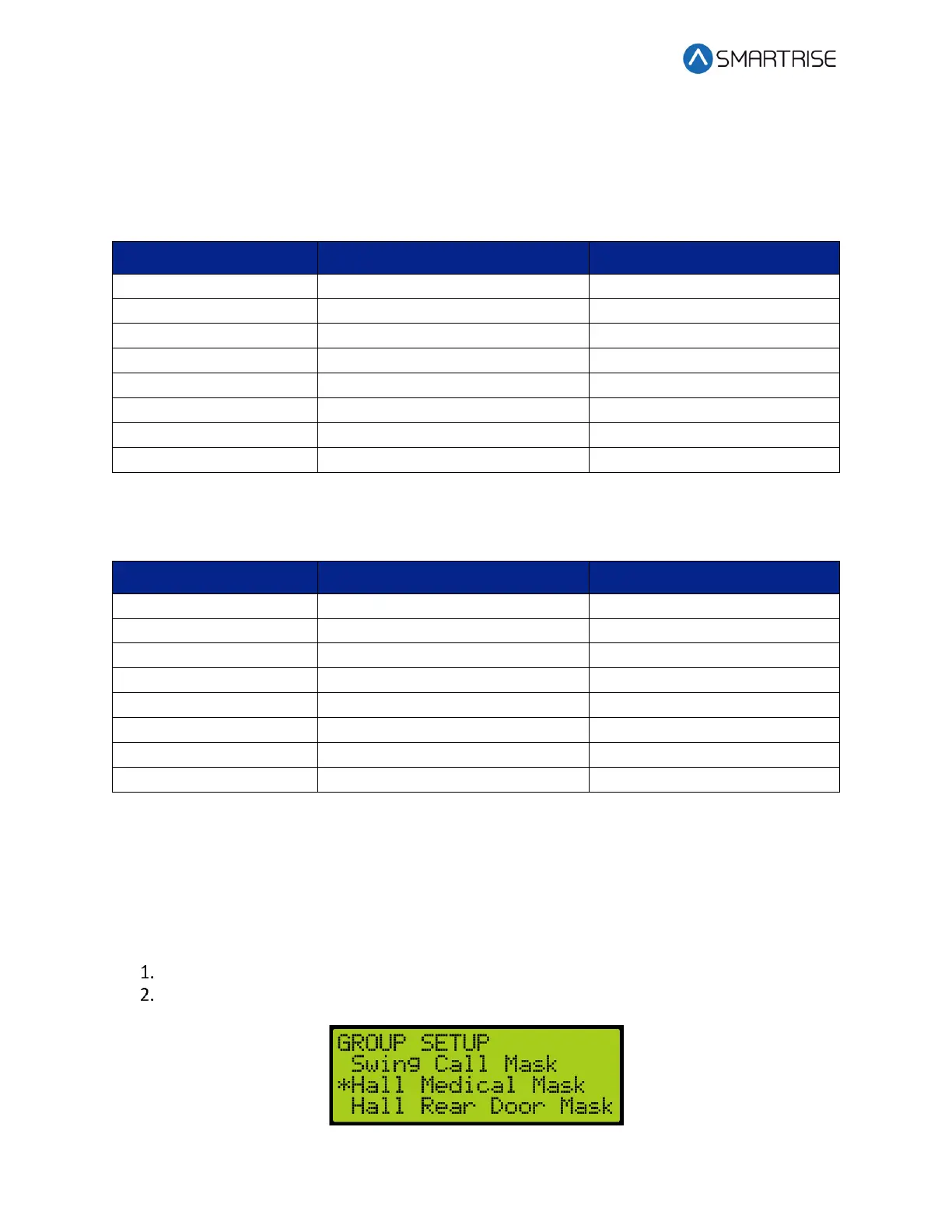

Table 28: Hall Board 10 DIP Hall Mask Mapping Switch Settings
DIP Switch 7-8-9
Function ID
Mask Value (Decimal)
OFF-OFF-OFF
1
1
ON-OFF-OFF
2
2
OFF-ON-OFF
3
4
ON-ON-OFF
4
8
OFF-OFF-ON
5
16
ON-OFF-ON
6
32
OFF-ON-ON
7
64
ON-ON-ON
8
128
The table below lists the Hall board 12 DIP Hall Mask Mapping switch settings.
Table 29: Hall board 12 DIP Hall Mask Mapping Switch Settings
DIP Switch 8-9-10
Function ID
Mask Value (Decimal)
OFF-OFF-OFF
1
1
ON-OFF-OFF
2
2
OFF-ON-OFF
3
4
ON-ON-OFF
4
8
OFF-OFF-ON
5
16
ON-OFF-ON
6
32
OFF-ON-ON
7
64
ON-ON-ON
8
128
16.9 Hall Medical Mask
The Hall Medical Mask configures hall boards for emergency medical service calls. These calls
put the nearest car on Emergency Medical Service mode of operation.
The following procedure describes how to set hall medical mask.
Navigate to MAIN MENU | SETUP | GROUP SETUP. See Figure 58.
From the GROUP SETUP menu, scroll and select Hall Medical Mask.
Figure 272: GROUP SETUP Menu – Hall Medical Mask
