Hydro:Evolved User Manual

From the ALARM LOG menu, view the list of faults of faults that have occurred.

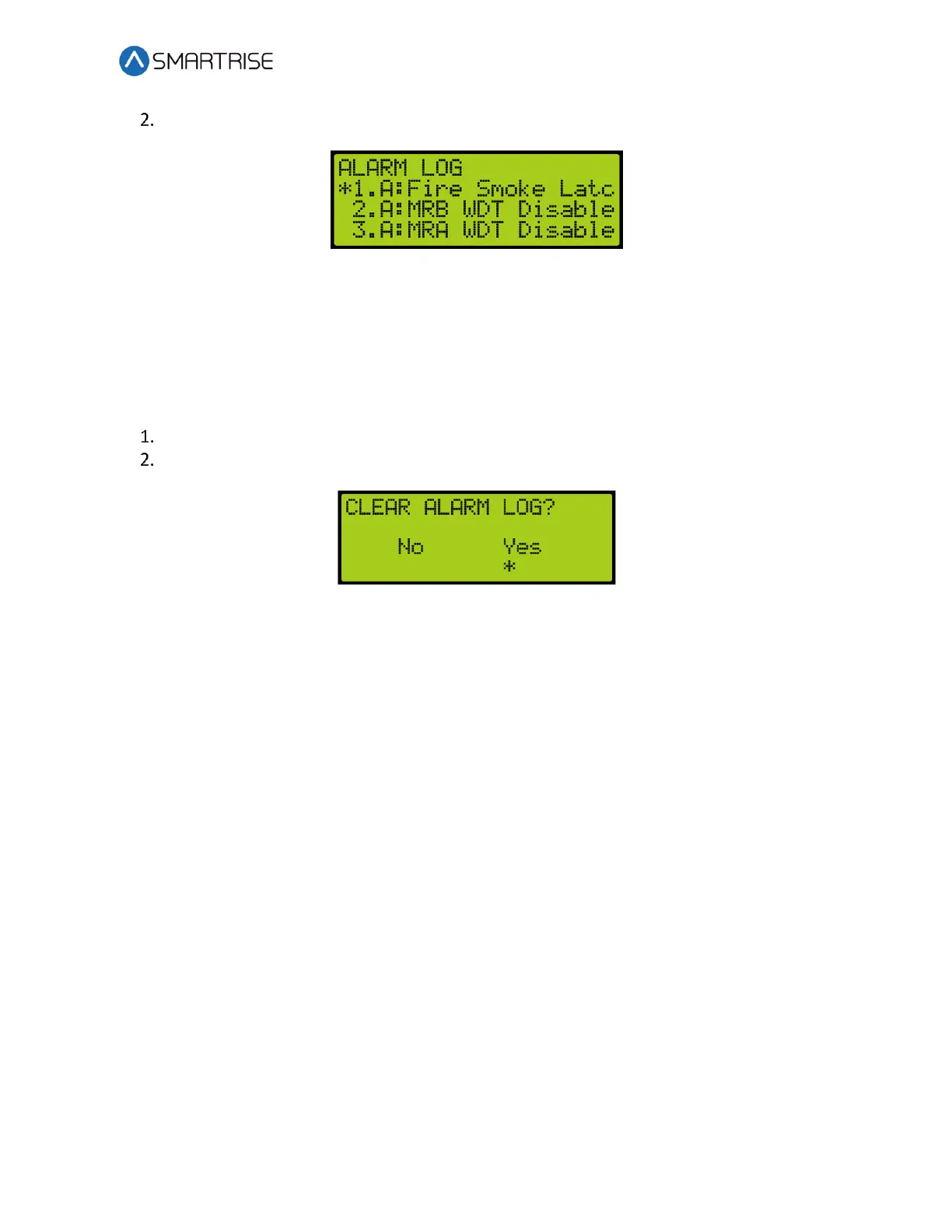

Figure 651: ALARM LOG Menu

41.3 Cleared Alarms

Cleared alarms deletes the history of recorded alarms.

The following procedure describes how to clear the alarm log.

Navigate to MAIN MENU | ALARMS | CLEAR ALARM. See Figure 53.

From the CLEAR ALARM LOG? menu, press the right button and select Yes.

Figure 652: CLEAR ALARM LOG? Menu
