Hydro:Evolved User Manual

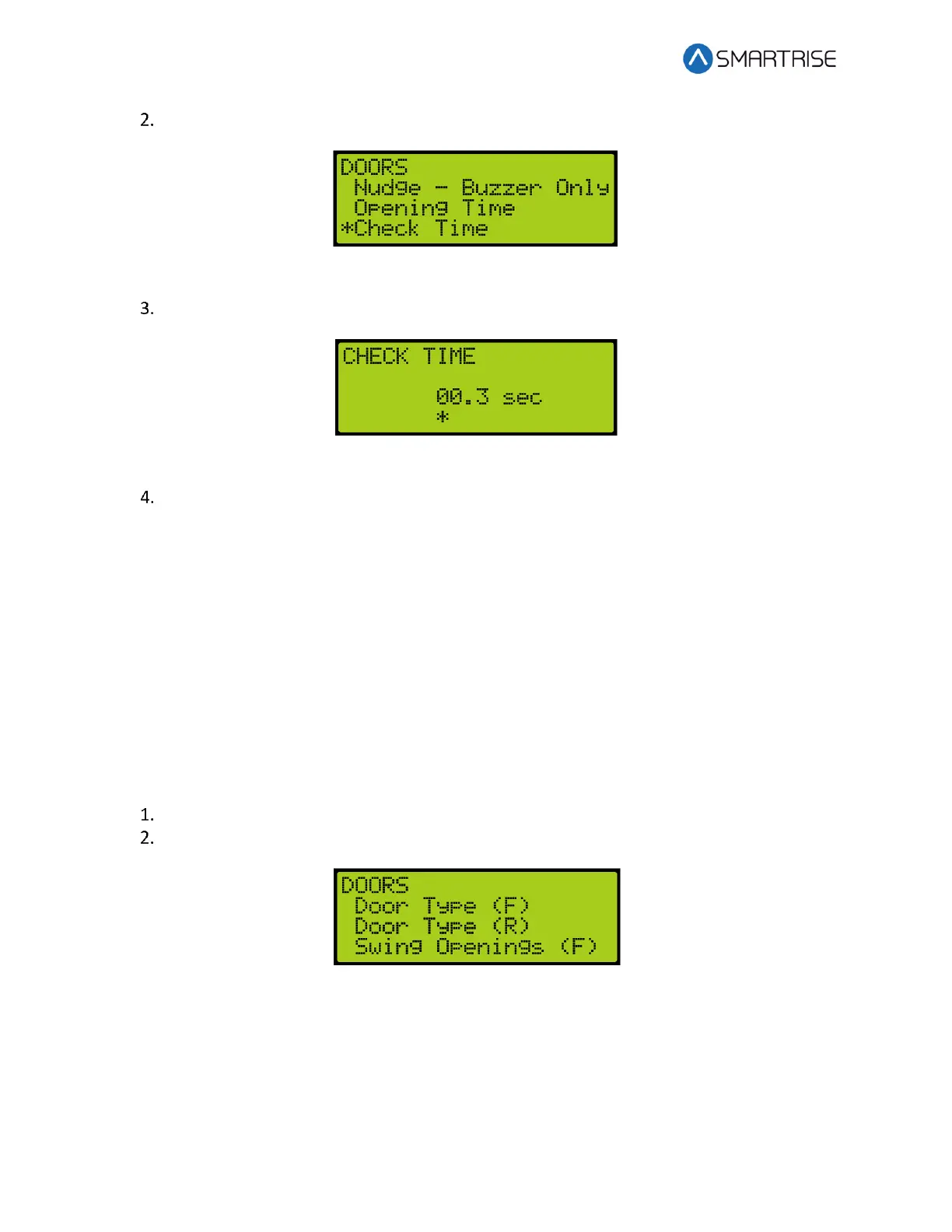

From the DOORS menu, scroll and select Check Time.

Figure 224: DOORS Menu – Check Time

From the CHECK TIME menu, set the time to check if the doors are considered safe.

Figure 225: CHECK TIME Menu

Scroll right and press Save.

14.24 Door Type

The door type is the type of door used on the front or rear landing. The user can set the

controller for a different type of door used on all front landings and all rear landings. The type

of doors are as follows:

• Automatic

• Freight

• Manual

• Swing

The following procedure describe how to select the front or rear door type.

Navigate to MAIN MENU | SETUP | DOOR SETUP. See Figure 55.

From the DOORS menu, scroll and select Door Type (Front or Rear).

Figure 226: DOORS Menu – Door Type (Front or Rear)

Table of Contents5
Hydro:evolved Controller35
Overview35
Controller Components36
Figure 1: Hydro:evolved Controller36
Figure 2: Car Operating Panel Controller37
Figure 3: Car Top Controller37
Figure 4: Smartpositioning Landing System (Left)38
Figure 5: Smartpositioning Landing System (Right)38
Safety39
Default Voltage Settings Prior to Installation39
Figure 6: Ground Bus Terminal Blocks39
Controller Hardware40
MR Board SR303241
Figure 7: MR Board SR303241
Table 1: MR Board SR3032 Bank a DIP Switch Setting Configuration42
Table 2: MR Board SR3032 Bank B DIP Switch Setting Configuration42
Navigation Buttons43
Figure 8: Navigation Buttons43
Table 3: Navigation Button Descriptions43
VDC Power Source44
Reset Buttons44
Figure 9: Example of Selected Menu44
Figure 10: 24 VDC Connector44
Figure 11: Reset Switches44
Nts45
Network45
Figure 12: NTS Connector45
Figure 13: CN Connector46
Figure 14: CAN 1,2,3 Network Connector46
VAC Inputs and Outputs (Factory)47
Figure 15: 120 VAC Connector47
VDC Inputs and Outputs48
Figure 16: 24 VDC Input Connector48
Figure 17: 24 VDC Output Connector48
VDC Monitoring System49
Safety String Inputs 120 VAC49
Figure 18: 24 VDC Monitoring System Connector49
Figure 19: Safety String Input Connector50
VAC Inputs and Outputs (Field)51
Figure 20: 120 VAC Input and Output Connector51
Hall Lock Connections52
Inspection Controls52
Figure 21: Hall Lock Connector52
Safety Relays53
Figure 22: MR Board SR3032 Inspection Control53
CT/COP Board SR303054
Figure 23: MR Board SR3032 Safety Relays54
Figure 24: SRU Board SR303055
Table 4: CT/COP Board SR3030 Bank a DIP Switch Setting Configuration56
Table 5: CT/COP Board SR3030 Bank B DIP Switch Setting Configuration56
I/O Board/Riser Board SR303157
Figure 25: I/O Board/Riser Board SR303157
Table 6: I/O Board SR3031 DIP Switch Settings57
Group Redundancy58
Input Board SR304158
Figure 26: 24 Input Board SR304159
Table 7: 24 Input Board SR3041 DIP Switch Settings59
Table 8: 24 Input Board SR3041 DIP Switch Settings When SR3041 Is Master60
Table 9: 24 Input Board SR3041 DIP Switch Settings When SR3031 Is Master60
Hall Board SR106061
Figure 27: 10 DIP Hall Board SR1060-E61
Figure 28: 12 DIP Hall Board SR1060-G61
Valve Board SR304562
Table 10: Hall Board 10 DIP Switch Settings62
Table 11: Hall Board 12 DIP Switch Settings62
Figure 29: Valve Board SR304563
Menu Structure65
Status65
Figure 30: Status - Inputs, Outputs, and Expansion Status Menus65
Table 12: Status - Inputs, Outputs, and Expansion Status Menu Structures66
Figure 31: Status - Hall Call Status, CPLD Status, Virtual Inputs, and DIP Status Menus68
Table 13: Status - Hall Call Status, CPLD Status, Virtual Inputs, and DIP Status Menu Structures69
Faults and Alarms70
Figure 32: Faults and Alarms Menus70
Table 14: Faults and Alarms Menu Structures70
Setup71
Figure 33: Setup - Setup I/O, Safety, and Run Timers Menus71
Table 15: Setup - Setup I/O, Safety and Run Timers Menu Structures72
Figure 34: Setup - Door Setup Menu74
Table 16: Setup - Door Setup Menu Structure75
Figure 35: Setup - Speeds, Floors, and Hoistway Access Menus77
Table 17: Setup - Speeds, Floors, and Hoistway Access Menu Structures78
Figure 36: Setup - Fire and Earthquake Menus80
Table 18: Setup - Fire and Earthquake Menu Structures81
Figure 37: Setup - Miscellaneous Menus83
Table 19: Setup - Miscellaneous Menu Structure84
Figure 38: Setup - Group Setup, Flood, and EMS Menus86
Table 20: Setup - Group Setup, Flood, and EMS Menu Structures87
Figure 39: Setup - Sabbath, Swing, Attendant, and E-Power Menus90
Table 21: Setup - Sabbath, Swing, Attendant, and E-Power Menu Structures91
Figure 40: Setup - Hydro and Access Menus93
Table 22: Setup - Hydro and Access Menu Structures94
Debug and about97
Figure 41: Debug and about Menus97
Table 23: Debug and about Menu Structures98
High-Level Navigation Menu Structure100
Main Menu100
Status100
Figure 42: MAIN MENU - Status, Faults, Alarms100
Figure 43: MAIN MENU - Setup, Debug, about100
Figure 44: STATUS Menu - Inputs, Outputs, Valve 1 Status100
Figure 45: STATUS Menu - Valve 2 Status, Soft Starter Status, Soft Starter 2 Status100
Figure 46: STATUS Menu - Expansion Status, Riser Board Status, Hall Board Status101
Figure 47: STATUS Menu - Hall Lantern Status, Hall Security Status, Hall Call Status101
Figure 48: STATUS Menu - DAD Status, Clock, CPLD Status101
Figure 49: STATUS Menu - Load Weigher Status, E-Power Status, EMS Status101
Figure 50: STATUS Menu - Virtual Inputs and DIP Status101
Figure 51: STATUS Menu - Door (F) Status and Door (R) Status101
Faults102
Alarms102
Setup102
Figure 52: FAULTS Menu - Active, Logged, Clear Log102
Figure 53: ALARMS Menu - Active, Logged, Clear Log102
Figure 54: SETUP Menu - Setup I/O, Safety, Run Timers102
Figure 55: SETUP Menu - Door Setup, Speeds, Floors102
Figure 56: SETUP Menu - Hoistway Access, Fire, Earthquake102
Debug103
Figure 57: SETUP Menu - Miscellaneous, PI Labels, Real-Time Clock103
Figure 58: SETUP Menu - Load Weigher, Group Setup, Flood103
Figure 59: SETUP Menu - EMS, Sabbath, Swing103
Figure 60: SETUP Menu - Attendant, E-Power, Hydro103
Figure 61: SETUP Menu - Access Code103
Figure 62: DEBUG Menu - Enter Car Calls, Enter Hall Calls, Enter Door Command103
Figure 63: DEBUG Menu - Edit Parameters, View Network Packet, View Group Packets104
Figure 64: DEBUG Menu - View Debug Data, Acceptance Test, Emergencybitmap104
Figure 65: DEBUG Menu - Module Statuses, Car Data, Car Destinations104
Figure 66: DEBUG Menu - Run Counter, Debugruns, Xreg Destination104
Figure 67: DEBUG Menu - Xreg Data, SH Dynamic Car Parking, SH Predict Car Parking104
Figure 68: DEBUG Menu - SH Remote Commands and View Module Data104
Parameters105
Figure 69: PARAMETER EDIT Menu - Hexadecimal or Decimal Format105
Figure 70: EDIT as BINARY Menu Hexadecimal or Decimal Format105
Figure 71: EDIT as HEXADECIMAL Menu105
Figure 72: EDIT as DECIMAL Menu105
Construction Mode106
Main Power Setup106
Figure 73: Breakers in the off Position106
Figure 74: L1/L2 Breaker106
Construction Mode107
Soft Starter Setup107
Inspection Mode107
Standard Modes of Inspection107
Figure 75: MR INSPECTION Switch107
Inspection Run Options and Adjustments108
Figure 76: Car Run Box108
Figure 77: SPEEDS Menu - Inspection Speed108
Figure 78: INSPECTION SPEED Menu109
Adjusting Run Timers110
Figure 79: TIMERS Menu - Start Timers or Stop Timers111
Figure 80: START TIMERS Menu111
Figure 81: STOP TIMERS Menu111
Smartpositioning Landing System112
Coded Tape112
Figure 82: Coded Tape112
Figure 83: Gloves Required112
Figure 84: Tape Minimum Bend Radius113
Figure 85: Routing Tape113
Sensor Assembly Installation114
Figure 86: Unistrut Installation114
Figure 87: Sensor Array Assembly Positioning115
Upper Tape Mount Assembly116
Figure 88: Location of Tape Mount Assemblies116
Figure 89: Upper Tape Unistrut Installation117
Figure 90: Hardware117
Tape Clip Assembly118
Figure 91: Gap Verification118
Figure 92: Tape Clip Assembly118
Figure 93: Tape Clip Insertion119
Figure 94: Tape Clip Assembly Alignment119
Figure 95: Optical Axis120
Figure 96: Tape Clip Assembly Placement (Rear View)120
Figure 97: Tape Clip Assembly Alignment121
Lower Tape Mount Assembly122
Figure 98: Lower Tape Mount Assembly122
Figure 99: Hardware to Lower Tape Mount Assembly122
Sensor Array Assembly123
Figure 100: Sensor Array Assembly123
Figure 101: Sensor Array Assembly (Right Side)124
Figure 102: Sensor Array Assembly (Left Side)125
Figure 103: Dual Sensor Array Assembly125
Figure 104: Dual Sensor Array Assembly (Right Side)126
Emergency Tape Break (ETB) Switch Assembly127
Figure 105: Dual Sensor Array Assembly (Left Side)127
Figure 106: Emergency Tape Break Switch in Series with Buffer Switch127
Fine Tune128
Figure 107: Unistrut to Lower Tape Mount Assembly128
Figure 108: Emergency Tape Break Switch128
Figure 109: Sensor Array Assembly Adjustment129
Figure 110: RJ45 Connection129
Alignment130
Figure 111: Optical Sensor Leds130
Figure 112: Alignment Arrows130
Learning the Hoistway133
Figure 113: Check Status by Main Screen Method133
Figure 114: Normal to Hold UP/DN to Start133
Figure 115: Learn Complete133
Speeds134
Contract Speed134
Leveling Speed134
Figure 116: SPEEDS Menu - Contract Speed134
Figure 117: CONTRACT SPEED Menu134
Test Buffer Speed135
Figure 118: SPEEDS Menu - Test Buffer Speed135
Figure 119: BUFFER SPEED Menu135
Floors136
Number of Floors136
Floor Adjustment136
Car Is too Low or too High136
Figure 120: FLOORS Menu - Number of Floors136
Figure 121: NUMBER of FLOORS Menu136
Figure 122: FLOORS Menu - too High/ too Low137
Figure 123: ADJUST FLOORS Menu - too Low137
Figure 124: ADJUST FLOORS Menu - too High137
Security Setting138
Access Code138
Figure 125: FLOORS Menu - Security (Front or Rear)138
Figure 126: SECURITY FLOORS Menu138
Front and Rear Access139
Figure 127: ACCESS CODE Menu - Access Codes (Front or Rear)139
Figure 128: ACCESS CODE FRONT Menu - Floor Number139
Figure 129: ACCESS CODE REAR Menu - Floor Number139
Figure 130: no Access Code139
Car Call Button Timer140
Figure 131: FRONT ACCESS CODE Menu140
Figure 132: REAR ACCESS CODE Menu140
Figure 133: Invalid Floor140
Enable Releveling141
Figure 134: ACCESS CODE Menu - CCB Timer141
Figure 135: CCB TIMER Menu141
Figure 136: FLOORS Menu - Enable Releveling141
Figure 137: ENABLE RELEVELING Menu141
Relevel Zone Size142
Releveling Delay142
Figure 138: FLOORS Menu - Relevel Zone Size142
Figure 139: RELEVEL ZONE SIZE Menu142
Figure 140: FLOORS Menu - Releveling Delay142
Floor Openings143
Figure 141: RELEVELING DELAY Menu143
Figure 142: FLOOR Menu - Openings (Front or Rear)143
Figure 143: FLOOR OPENING Menu143
Store Floor Level144
Short Floor Opening144
Figure 144: FLOORS Menu - Store Floor Level144
Figure 145: STORE FLOORS Menu144
Figure 146: FLOORS Menu - Short Floor Opening144
Timed Car Call Security145
Figure 147: SHORT FLOOR OPENING Menu145
Figure 148: FLOOR Menu - Timed Car Call Security145
Figure 149: TIMED CC SECURITY Menu - Enable Floor (Front or Rear)145
Figure 150: TIMED CAR CALL SECURITY Menu - Start (M-F)146
Figure 151: WEEKDAY START TIME Menu146
Figure 152: TIMED CAR CALL SECURITY Menu - Stop (M-F)146
Figure 153: WEEKDAY STOP TIME Menu146
Figure 154: TIMED CAR CALL SECURITY Menu - Start (S-S)146
Figure 155: WEEKEND START TIME Menu147
Figure 156: TIMED CAR CALL SECURITY Menu - Stop (S-S)147
Figure 157: WEEKEND STOP TIME Menu147
Sabbath Operation148
Figure 158: SETUP I/O Menu - Setup Inputs148
Figure 159: SELECT BOARD Menu - Machine Room148
Figure 160: Input Menu149
Figure 161: SABBATH Menu - Key Enable Only149
Figure 162: KEY ENABLE ONLY Menu149
Figure 163: SABBATH Menu - Floors Opening (F)149
Figure 164: FLOOR OPENINGS (Front) Menu150
Figure 165: SABBATH Menu - Floors Opening (R)150
Figure 166: FLOORS OPENINGS (Rear) Menu150
Figure 167: SABBATH Menu - Destinations up150
Figure 168: up DESTINATIONS Menu151
Figure 169: SABBATH Menu - Destinations down151
Figure 170: down DESTINATION Menu151
Figure 171: SABBATH Menu - Timer Enable Only152
Figure 172: TIMER ENABLE ONLY Menu152
Figure 173: SABBATH Menu - Friday Start Time152
Figure 174: FRIDAY START TIME Menu152
Figure 175: SABBATH Menu - SATURDAY END Time152
Figure 176: SATURDAY END TIME Menu153
Figure 177: SABBATH Menu - Door Dwell Timer153
Figure 178: DOOR DWELL TIMER Menu153
Figure 179: SABBATH Menu - Key or Timer Enable153
Figure 180: Key or Timer Enable Menu153
Doors154
Control Doors154
Figure 181: DOORS Menu - Control Doors154
Table 24: Door Symbols for each State154
Door Dwell Timer155
Hall Dwell Timer155
Figure 182: CONTROL DOORS Menu155
Figure 183: DOORS Menu -Door Dwell Timer155
Figure 184: DOORS Menu - Hall Dwell Timer155
ADA Dwell Timer156
Hold Dwell Timer156
Figure 185: HALL DWELL TIMER Menu156
Figure 186: DOORS Menu - ADA Dwell Timer156
Figure 187: ADA DWELL TIMER Menu156
Lobby Dwell Timer157
Figure 188: DOORS Menu - Hold Dwell Timer157
Figure 189: HOLD DWELL TIMER Menu157
Figure 190: DOORS Menu - Lobby Dwell Timer157
Figure 191: LOBBY DWELL TIMER Menu157
Door Stuck Timer158
Door Nudge Timer158
Figure 192: DOORS Menu - Door Stuck Timer158
Figure 193: DOOR STUCK TIMER Menu158
Figure 194: DOORS Menu - Door Nudge Timer158
Rear Doors159
Preopening Distance159
Figure 195: Door Nudge Timer159
Figure 196: DOORS Menu - Rear Doors159
Figure 197: REAR DOORS Menu159
DC on Run160
Figure 198: DOORS Menu - Preopening Distance160
Figure 199: PREOPENING Distance Menu160
Figure 200: DOORS Menu - DC on Run160
Figure 201: DC on RUN Menu160
DC on Close161
DO on Open161
Figure 202: DOORS Menu - DC on Close161
Figure 203: DC on DOOR CLOSE Menu161
Figure 204: DOORS Menu - DO on Open161
Disable on CT Stop162
Disable on HA162
Figure 205: DO on DOOR OPEN Menu162
Figure 206: DOORS Menu - Disable on CT Stop162
Figure 207: DISABLE DOOR on CT STOP Menu162
AT400 Doors163
Figure 208: DOORS Menu - Disable on HA163
Figure 209: DISABLE DOOR on HA Menu163
Figure 210: DOORS Menu - AT400 Doors163
Figure 211: ENABLE AT400 DOOR Menu163
No Demand Doors Open164
Jumper Timer164
Figure 212: DOORS Menu - no Demand Doors Open164
Figure 213: no DEMAND DOORS OPEN Menu164
Figure 214: DOORS Menu - Jumper Timer164
Jumper on DOL165
Figure 215: JUMPER TIMEOUT Menu165
Figure 216: DOORS Menu - Jumper on DOL165
Figure 217: LOCK JUMPED on DOL Menu165
Hourly Fault Limit166
Nudge - Buzzer Only166
Figure 218: DOORS Menu - Hourly Fault Limit166
Figure 219: HOURLY FAULT LIMIT Menu166
Figure 220: DOORS Menu - Nudge - Buzzer Only166
Opening Time167
Check Time167
Figure 221: NUDGE - BUZZER ONLY Menu167
Figure 222: DOORS Menu - Opening Time167
Figure 223: OPENING TIME Menu167
Door Type168
Figure 224: DOORS Menu - Check Time168
Figure 225: CHECK TIME Menu168
Figure 226: DOORS Menu - Door Type (Front or Rear)168
Lock and CAM Timeout169
Retiring CAM169
Figure 227: DOOR TYPE Menu169
Figure 228: DOORS Menu - Lock and CAM Timeout169
Figure 229: TIMEOUT LOCK and CAM Menu169
Fixed CAM170
Figure 230: DOORS Menu - Retiring CAM170
Figure 231: RETIRING CAM Menu170
Figure 232: DOORS Menu - Fixed CAM170
Figure 233: FIXED CAM Menu170
Swing Lock GSW Timeout171
Swing Contacts Timeout171
Figure 234: DOORS Menu - Swing Lock GSW Timeout171
Figure 235: SWING LOCK GSW TIMER Menu171
Figure 236: DOORS Menu - Swing Contacts Timeout171
Disable DOB Rear172
Front Door State172
Figure 237: SWING CONTACTS TIMER Menu172
Figure 238: DOORS Menu - Disable DOB Rear172
Figure 239: DISABLE REAR DOB Menu172
Figure 240: VIEW DEBUG DATA Menu - Front Door173
Table 25: Door Command Issued to the Door Module173
Rear Door State174
Car Data174
Car Data Overview174
Figure 241: VIEW DEBUG DATA Menu - Rear Door174
Figure 242: Car Data Overview174
Table 26: Car Status Codes175
Hall Mask Status177
Figure 243: Hall Mask Status177
Table 27: Hall Mask Status Definitions177
Opening Map Status178
Front Opening Map Status178
Rear Opening Map Status178
Security Map Status178
Front Security Map Status178
Figure 244: Front Opening Map Status178
Figure 245: Rear Opening Map Status178
Rear Security Map Status179
Linked Hall Mask Status179
Figure 246: Front Security Map Status179
Figure 247: Rear Security Map Status179
Hall Security Map Status180
Front Hall Security Map Status180
Rear Hall Security Map Status180
Figure 248: Linked Hall Mask Status180
Figure 249: Front Hall Security Map Status180
Hall Security Mask Status181
Dispatching Timer Status181
Figure 250: Rear Hall Security Map Status181
Figure 251: Front and Rear Hall Security Mask Status181
VIP Flags182
Figure 252: Dispatching Timers Status182
VIP Masks183
Figure 253: VIP Flags Status183
Figure 254: VIP Mask Status Menu183
Car Call Enable Bitmap Status184
Front Car Call Enable Bitmap Status184
Rear Car Call Enable Bitmap Status184
Figure 255: Front Car Call Enable Bitmap Status184
Emergency Medical Call Mask and Landing185
Figure 256: Rear Car Call Enable Bitmap Status185
Figure 257: Emergency Medical Call Mask and Landing185
Hall Network188
CAN Bus188
Figure 258: Standard CAN Bus188
Hall Board Status189
Figure 259: Hall Board Status189
Figure 260: Uninitialized Hall Board Status189
Enable Hall Security190
Linked Hall Buttons190
Figure 261: GROUP SETUP Menu - Enable Hall Security190
Figure 262: ENABLE HALL SECURITY Menu190
Hall Security Map191
Figure 263: GROUP SETUP Menu - Linked Hall Mask191
Figure 264: LINKED HALL MASK 1 Menu191
Figure 265: GROUP SETUP Menu - Hall Security Map (Front or Rear)191
Hall Security Mask192
Figure 266: HALL SECURITY MAP FRONT Menu192
Figure 267: HALL SECURITY MAP REAR Menu192
Figure 268: GROUP SETUP Menu - Hall Security Mask192
Figure 269: HALL SECURITY MASK Menu192
Hall Security Status193
Hall Call Masks193
Figure 270: GROUP SETUP Menu - Hall Call Mask193
Figure 271: HALL CALL MASK Menu193
Hall Medical Mask194
Figure 272: GROUP SETUP Menu - Hall Medical Mask194
Table 28: Hall Board 10 DIP Hall Mask Mapping Switch Settings194
Table 29: Hall Board 12 DIP Hall Mask Mapping Switch Settings194
Hall Rear Door Mask195
Errors195
Figure 273: HALL MEDICAL MASK Menu195
Figure 274: GROUP SETUP Menu - Hall Rear Door Mask195
Figure 275: HALL REAR DOOR MASK Menu195
Compatibility196
Serial Hall Lanterns196
Can Bus196
Hall Lantern Masks196
Serial Hall Lantern Status196
Errors197
Hydro197
Valve Type Select197
Figure 276: Hall Lantern Status197
Figure 277: Uninitialized Hall Lantern Status197
Figure 278: HYDRO SETUP Menu - Valve Type Select197
Secondary Valve Board198
Soft Starter198
ENA Serial Soft Starter198
Figure 279: VALVE TYPE Menu198
Figure 280: HYDRO SETUP Menu - Secondary Valve Board198
Figure 281: SECONDARY VALVE BOARD Menu198
Primary199
Ramp up Time199
Figure 282: HYDRO SETUP Menu -Soft Starter199
Figure 283: SOFT STARTER Menu - Enable SR Soft Starter199
Figure 284: ENABLE SR SOFT STARTER Menu199
Vmax200
Figure 285: SOFT STARTER Menu - Primary200
Figure 286: PRIMARY Menu - Ramp up Time200
Figure 287: RAMP up TIME Menu200
Figure 288: PRIMARY Menu - Vmax200
Over Current201
Over Temperature201
Figure 289: VMAX AC VOLTAGE Menu201
Figure 290: PRIMARY Menu - over Current201
Figure 291: OVERCURRENT Menu201
Secondary202
Enable Secondary202
Figure 292: PRIMARY Menu - over Temperature202
Figure 293: OVERTEMPERATURE LIMIT Menu202
Figure 294: SOFT STARTER Menu - Secondary202
Ramp up Time203
Figure 295: SECONDARY Menu - Enable Secondary203
Figure 296: ENABLE SECONDARY SOFT STARTER Menu203
Figure 297: SECONDARY Menu - Ramp up Time203
Vmax204
Over Current204
Figure 298: SECONDARY Menu - Vmax204
Figure 299: SECONDARY Menu - over Current204
Over Temperature205
Run with One Soft Starter205
Figure 300: SECONDARY Menu - over Temperature205
Figure 301: SOFT STARTER Menu - Run with One Soft Starter205
Slowdown206
Figure 302: Run with One Soft Starter Menu206
Figure 303: Slowdown Distance207
Level Maximum Run Distance208
Figure 304: HYDRO SETUP Menu - Level Maximum Run Distance208
NTS Buffer Distance up and down209
Destination and Relevel Offsets209
Figure 305: LEVEL MAXIMUM RUN DISTANCE Menu209
Figure 306: HYDRO SETUP Menu - NTS Buffer Distance up or down209
Figure 307: NTS BUFFER DISTANCE up Menu209
Figure 308: NTS BUFFER DISTANCE down Menu209
Destination Offset210
Figure 309: HYDRO SETUP Menu - Destination Offset (up or Down)210
Figure 310: DESTINATION OFFSET up Menu210
Figure 311: DESTINATION OFFSET down Menu210
Relevel Offset211
Speed Thresholds211
Figure 312: HYDRO SETUP Menu - Relevel Offset (up or Down)211
Figure 313: RELEVEL OFFSET up Menu211
Figure 314: Relevel Offset down Menu211
Slowdown Distance212
Slowdown Distance after Adjustments212
Figure 315: HYDRO SETUP Menu - Speed Thresholds212
Figure 316: SPEED THRESHOLD Menu212
Hydro Speed Setup213
Figure 317: HYDRO SETUP Menu - Slowdown Distance up or down213
Figure 318: SLOWDOWN DISTANCE up Menu213
Figure 319: SLOWDOWN DISTANCE down Menu213
Car Overshooting214
Figure 320: HYDRO SETUP Menu - Hydro Speed Setup214
Figure 321: up Distance Menu214
Figure 322: down Distance Menu214
Figure 323: GENERATE THRESHOLDS and SLOWDOWNS? Menu214
Adjust Leveling Time215
Figure 324: down Distance Menu - Overshooting Adjustment215
Figure 325: up Distance Menu - Overshooting Adjustment215
Figure 326: Generate Thresholds215
Figure 327: down Distance Menu - Steady State of Leveling Longer Adjustment215
Adaptive Slowdown™ System (U.S. Patent Pending)216
Procedure216
Figure 328: up Distance Menu - Steady State of Leveling Longer Adjustment216
Figure 329: Generate Thresholds216
Figure 330: LEVELING TARGET Menu - Slowdown Target216
Troubleshoot Adaptive Slowdown™ System (U.S. Patent Pending)217
Figure 331: ENABLE SLOWDOWN Menu - Slowdown Learn217
Figure 332: Slowdown Target-Increase217
Figure 333: Slowdown Target-Decrease217
Monitoring Adaptive Slowdown™ System (U.S. Patent Pending)218
Slowdown Distance after Adjustments218
Figure 334: HYDRO SETUP-TSRD Distance218
Figure 335: TSRD Distance218
Figure 336: View Slowdown Distance up219
Figure 337:View Slowdown Distance down219
Overshooting220
Steady State of Leveling Is Longer220
Figure 338: SLOWDOWN DISTANCE up - Adjustment220
TSRD Distance221
Battery Test Time221
Figure 339: SLOWDOWN DISTANCE down - Adjustment221
Figure 340: HYDRO SETUP Menu - TSRD Distance221
Figure 341: TSRD Distance Menu221
Jack Resync Time222
Figure 342: HYDRO SETUP Menu - Battery Test Time222
Figure 343: Battery Test Time Menu222
Figure 344: HYDRO SETUP Menu - Jack Resync Time222
Disable NTS Alarm223
Figure 345: JACK RESYNC TIME Menu223
Figure 346: HYDRO SETUP Menu - Disable NTS Alarm223
Figure 347: DISABLE NTS ALARM Menu223
Data Acquisition Device Unit225
DAD Status225
Figure 348: DAD STATUS Menu225
Assigning Inputs and Outputs226
Adding an Input or Output226
Figure 349: Unused Input/Output226
Figure 350: Category and Input226
Removing an Input or Output227
Types of Inputs227
Table 30: Description of Auto Operation Inputs227
Table 31: Description of Car Call (Front and Rear) Inputs228
Table 32: Description of Car Call (Front and Rear) Inputs228
Table 33: Description of Controller Inputs229
Table 34: Description of Emergency Power Inputs230
Table 35: Description of Fire/Earthquake Inputs231
Table 36: Description of Front Doors Inputs231
Table 37: Description of Rear Doors Inputs232
Table 38: Description of Inspection Inputs233
Table 39: Description of Safety Inputs233
Types of Outputs234
Table 40: Description of Auto Operation Outputs234
Table 41: Description of Car Call (Front and Rear) Outputs235
Table 42: Description of Controller Outputs235
Table 43: Description of Emergency Power Outputs236
Table 44: Description of Fire/Earthquake Outputs236
Table 45: Description of Doors Outputs237
Table 46: Description of Rear Doors Outputs238
Invert Inputs239
Figure 351: SETUP I/O Menu - Invert Inputs239
Table 47: Description of Inspection Outputs239
Table 48: Description of Safety Outputs239
Invert Outputs240
Figure 352: Invert Inputs Menu240
Figure 353: SETUP I/O Menu - Invert Outputs240
Figure 354: Invert Outputs Menu240
Vip241
Active Shooter241
Marshal Mode241
Wander Guard242
Installing a New Board244
Retain Parameters for a Replaced MR Board244
Retain Parameters for a Replaced CT or COP Board244
Figure 355: SYNC in PROGRESS244
Figure 356: SYNC COMPLETE244
Hoistway Access245
Figure 357: HOISTWAY ACCESS - Allowed Distance Top245
Figure 358: ALLOWED DISTANCE TOP Menu245
Figure 359: HOISTWAY ACCESS - Top Floor246
Figure 360: TOP FLOOR Menu246
Figure 361: HOISTWAY ACCESS - Top Opening246
Figure 362: TOP OPENING Menu246
Figure 363: HOISTWAY ACCESS - Allowed Distance Bottom246
Figure 364: ALLOWED DISTANCE BOTTOM Menu247
Figure 365: HOISTWAY ACCESS - Bottom Floor247
Figure 366: BOTTOM FLOOR Menu247
Figure 367: HOISTWAY ACCESS - Bottom Opening247
Figure 368: BOTTOM OPENING Menu248
Figure 369: HOISTWAY ACCESS - HA Slide Distance248
Figure 370: HOISTWAY ACCESS Slide Distance248
Miscellaneous250
Bypass Term Limit250
Enable Construction Box250
Figure 371: MISCELLANEOUS Menu - Bypass Term Limits250
Figure 372: BYPASS TERM LIMITS Menu250
Maximum Run Time251
Figure 373: MISCELLANEOUS Menu - Enable Construction Box251
Figure 374: ENABLE CONSTRUCTION BOX Menu251
Figure 375: MISCELLANEOUS Menu - Max Run Time251
Figure 376: MAXIMUM RUN TIME Menu251
CT Insp. Req. IC252
Dis. Idletrvarrow252
Figure 377: MISCELLANEOUS Menu - CT Insp. Req. IC252
Figure 378: IC REQ for CT Menu252
Figure 379: MISCELLANEOUS Menu - Disable. Idletrvarrow252
Enable Latches Car Calls253
Car to Lobby Floor253
Figure 380: DISABLE IDLE TRV ARROW Menu253
Figure 381: MISCELLANEOUS Menu - Enable Latches Car Call253
Figure 382: ENABLE LATCHES CAR CALL Menu253
Parking254
GUI Parking254
Figure 383: MISCELLANEOUS Menu - Car to Lobby Floor254
Figure 384: CAR to LOBBY FLOOR Menu254
Figure 385: MISCELLANEOUS Menu - Parking254
Parking Timer255
Figure 386: PARKING Menu - GUI Parking255
Figure 387: ENABLE GUI PARKING Menu255
Figure 388: PARKING Menu - Parking Timer255
Figure 389: PARKING TIMER Menu255
Parking Floor256
Parking Door Open256
Figure 390: PARKING Menu - Parking Floor256
Figure 391: PARKING FLOOR Menu256
Figure 392: PARKING Menu - Parking Door Open256
Oos257
Disable OSS257
Figure 393: PARKING DOOR OPEN Menu257
Figure 394: MISCELLANEOUS Menu - OOS257
Figure 395: OOS Menu - Disable OOS257
Hourly Fault Limit258
Maximum Starts Per Minute258
Figure 396: DISABLE OOS Menu258
Figure 397: OOS Menu - Hourly Fault Limit258
Figure 398: HOURLY FAULT LIMIT Menu258
Disable PI OOS259
Figure 399: OOS Menu - Maximum Starts Per Minute259
Figure 400: MAXIMUM STARTS PER MINUTE Menu259
Figure 401: OOS Menu - Disable PI OOS259
Figure 402: DISABLE PI OOS Menu259
3 Digit PI260
Payment Passcode260
Figure 403: MISCELLANEOUS Menu - Enable 3 Digit PI260
Figure 404: ENABLE 3 DIGIT PI Menu260
Figure 405: MISCELLANEOUS Menu - Payment Passcode260
Direct Change Delay261
Default261
Figure 406: PAYMENT PASSCODE Menu261
Figure 407: MISCELLANEOUS Menu - Direct Change Delay261
Figure 408: DIRECT CHANGE DELAY Menu261
Default Floors262
Figure 409: MISCELLANEOUS Menu - Default262
Figure 410: DEFAULT Menu - Default Floors262
Figure 411: DEFAULT FLOORS? Menu262
Figure 412: DEFAULTING PARAMETERS Menu262
Default S-Curve263
Default Run Timers263
Figure 413: DEFAULTING PARAMETERS Menu - Parameters Defaulted263
Figure 414: DEFAULT Menu - Default S-Curve263
Figure 415: DEFAULT S-CURVE? Menu263
Default I/O264
Figure 416: DEFAULT Menu - Default Run Timers264
Figure 417: DEFAULT RUN TIMERS? Menu264
Figure 418: DEFAULT Menu - Default I/O264
Default Other265
Figure 419: DEFAULT I/O? Menu265
Figure 420: DEFAULT Menu - Default Other265
Figure 421: DEFAULT Other? Menu265
Default Factory266
Default FRAM266
Figure 422: DEFAULT FACTORY? Menu266
Figure 423: DEFAULT Menu - Default FRAM266
Figure 424: DEFAULT FRAM? Menu267
Swing Operation268
Configuring Swing Operation Input268
Calls Enable Swing268
Figure 425: Input Menu - Enable Swing268
Figure 426: SWING Menu - Calls Enable Swing268
Swing Opening269
Swing Call Mask269
Figure 427: CALLS ENABLE Menu269
Figure 428: DOORS Menu - Swing Openings (Front or Rear)269
Figure 429: SWING DOOR OPENINGS Menu269
Stay Active in Group270
Figure 430: GROUP SETUP Menu - Swing Call Mask270
Figure 431: HALL SWING MASK Menu270
Figure 432: SWING Menu - Stay in Group270
Figure 433: STAY in GROUP Menu270
Ldle Timer271
Timer271
Fan & Light Timer271
Figure 434: SWING Menu - Idle Timer271
Figure 435: IDLE TIMER Menu271
External Fan Timer272
Figure 436: MISCELLANEOUS Menu - Fan & Light Timer272
Figure 437: FAN & LIGHT TIMER Menu272
Figure 438: MISCELLANEOUS Menu - External Fan Timer272
Figure 439: MR FAN TIMER Menu272
Arrival Update Time273
Figure 440: MISCELLANEOUS Menu - Arrival Update Time273
Figure 441: ARRIVAL UPDATE TIME Menu273
Safety274
Lock Clip274
General ODL274
Figure 442: SAFETY Menu - Lock Clip274
Figure 443: LOCK CLIP Menu274
Figure 444: SAFETY Menu - General ODL274
Nts. Odl275
Tsrd Odl275
Figure 445: GENERAL ODL Menu275
Figure 446: SAFETY Menu - NTS ODL275
Figure 447: NTS ODL Menu275
Figure 448: SAFETY Menu - NTS TSRD ODL276
Figure 449: TSRD ODL Menu276
Emergency278
Emergency Power278
Earthquake Modes278
Privileged Modes278
Table 49: Inputs Used by the Controller for Emergency Power278
Fire Phase 1 and Phase 2 Operation279
EMS Phase 1 and Phase 2 Operation279
Cars in Manual Modes of Operation (Inspection States)279
Independent/Attendant Service Operation279
Other Modes279
Single Group Operation280
Number of Active Cars280
Multiple Group Operation280
Figure 450: E-POWER Menu - Number Active Cars280
Figure 451: Number Active Cars Menu280
Priority Car281
Figure 452: E-POWER Menu - Priority Car281
Figure 453: PRIORITY CAR Menu281
Recall282
Pretransfer Stall282
Recall Failure282
Figure 454: E-POWER Menu - Pretransfer Stall282
Figure 455: PRETRANSFER STALL Menu282
Intergroup Communication283
Earthquake283
Enable Earthquake283
Figure 456: EARTHQUAKE Menu - Enable Eq283
Set CW Position284
Figure 457: ENABLE EQ Menu284
Figure 458: EARTHQUAKE Menu - Set CW POS284
Figure 459: Save CW Position? Menu284
Earthquake Status285
Fire285
Figure 460: INPUTS by FUNCTION Menu - Fire/Earthquake285
Figure 461: FIRE/EARTHQUAKE Menu285
Main Recall286
Main Recall Floor286
Main Recall Door286
Figure 462: FIRE SERVICE Menu - Main Recall286
Figure 463: MAIN RECALL Menu - Floor286
Figure 464: MAIN RECALL FLOOR Menu286
Alternate Recall287
Alternate Recall Floor287
Figure 465: MAIN RECALL Menu - Opening287
Figure 466: MAIN RECALL DOOR Menu287
Figure 467: FIRE SERVICE Menu - Alt Recall287
Figure 468: ALT RECALL Menu - Floor287
Alternate Recall Door288
Main Smoke288
Figure 469: ALT RECALL FLOOR Menu288
Figure 470: ALT RECALL Menu - Opening288
Figure 471: ALT RECALL DOOR Menu288
Main or Alternate289
Flash Fire hat289
Figure 472: FIRE SERVICE Menu - Main Smoke289
Figure 473: MAIN SMOKE Menu - Main or Alt289
Figure 474: USE ALT FLOOR Menu289
Shunt Trip290
Figure 475: MAIN SMOKE Menu - Flash Fire hat290
Figure 476: FLASH FIRE hat Menu290
Figure 477: MAIN SMOKE Menu - Shunt Trip290
Figure 478: SHUNT on RECALL Menu290
Alternate Smoke291
Main or Alternate291
Figure 479: FIRE SERVICE Menu - Alt Smoke291
Figure 480: ALT SMOKE Menu - Main or Alt291
Figure 481: USE ALT FLOOR Menu291
Flash Fire hat292
Shunt Trip292
Hoistway Smoke292
Figure 482: ALT SMOKE Menu - Flash Fire hat292
Figure 483: ALT SMOKE Menu - Shunt Trip292
Main or Alternate293
Flash Fire hat293
Figure 484: FIRE SERVICE Menu - Hoistway Smoke293
Figure 485: HOISTWAY SMOKE Menu - Main or Alt293
Figure 486: HOISTWAY SMOKE Menu - Flash Fire hat293
Shunt Trip294
MR Smoke294
Main or Alternate294
Figure 487: HOISTWAY SMOKE Menu - Shunt Trip294
Figure 488: FIRE SERVICE Menu - MR Smoke294
Flash Fire hat295
Shunt Trip295
Figure 489: MR SMOKE Menu - Main or Alt295
Figure 490: MR SMOKE Menu - Flash Fire hat295
Recall Key296
PIT Smoke296
Figure 491: MR SMOKE Menu - Shunt Trip296
Figure 492: FIRE SERVICE Menu - Recall Key296
Figure 493: RECALL KEY Menu - Flash Fire hat296
Main or Alternate297
Flash Fire hat297
Figure 494: FIRE SERVICE Menu - PIT Smoke297
Figure 495: PIT SMOKE Menu - Main or Alt297
Figure 496: PIT SMOKE Menu - Flash Fire hat297
Shunt Trip298
Alt Machine Room298
Enable Alternate Machine Room298
Figure 497: PIT SMOKE Menu - Shunt Trip298
Figure 498: FIRE SERVICE Menu - Alt. Machine Room298
Hoistway 2 Smoke299
Main or Alternate299
Figure 499: ALT MACHINE ROOM Menu - Enable Alt. MR299
Figure 500: ENABLE ALT MR Menu299
Figure 501: ALT MACHINE ROOM Menu - HW 2 Smoke299
Figure 502: HOISTWAY 2 SMOKE Menu - Main or Alt299
Flash Fire hat300
Shunt Trip300
Figure 503: HOISTWAY 2 SMOKE Menu - Flash Fire hat300
Figure 504: HOISTWAY 2 SMOKE Menu - Shunt Trip300
MR 2 Smoke301
Main or Alt301
Flash Fire hat301
Figure 505: ALT MACHINE ROOM Menu - MR 2 Smoke301
Figure 506: MR 2 SMOKE Menu - Main or Alt301
Figure 507: MR 2 SMOKE Menu - Flash Fire hat301
Shunt Trip302
Advanced Config302
Figure 508: MR 2 SMOKE Menu - Shunt Trip302
Flood303
Number of Floors303
Figure 509: FIRE SERVICE Menu - Advance Configurations303
Figure 510: SMOKE CONFIGURATION Menu303
Okay to Run304
Figure 511: FLOOD Menu - Number of Floors304
Figure 512: NUMBER of FLOOD FLOORS Menu304
Figure 513: FLOOD Menu - Okay to Run304
Figure 514: OKAY to RUN Menu304
Override Fire305
Ems305
Allowph2Withoutph1305
Figure 515: FLOOD Menu - Override Fire305
Figure 516: OVERRIDE FIRE Menu305
Exit Ph2 any Floor306
Figure 517: EMS Menu - Allowph2Withoutph1306
Figure 518: ALLOWPH2WITHOUTPH1 Menu306
Figure 519: EMS Menu - Exit Ph2 any Floor306
Figure 520: EXIT PH2 any FLOOR Menu306
Fire Overrides Ph1307
Ph1 Exit Delay307
Figure 521: EMS Menu - Fire Overrides Ph1307
Figure 522: FIRE OVERRIDES PH1 Menu307
Figure 523: EMS Menu - Ph1 Exit Delay307
Ph2 Exit Delay308
Figure 524: PH1 EXIT DELAY Menu308
Figure 525: EMS Menu - Ph2 Exit Delay308
Figure 526: PH2 EXIT DELAY Menu308
Status310
Input Status310
Output Status310
Figure 527: INPUTS by FUNCTION Menu -Inspection310
Figure 528: INSPECTION Menu310
Figure 529: OUPTUS by FUNCTION Menu -Controller310
Valve 1 and Valve 2 Status311
Figure 530: CONTROLLER Menu311
Figure 531: Valve Status Menu - Part 1 of 3311
Figure 532: Valve Status Menu - Part 2 of 3311
Figure 533: Valve Status Menu - Part 3 of 3311
Soft Starter and Soft Starter 2 Status312
Figure 534: Soft Starter Status Menu - Part 1 of 3312
Figure 535: Soft Starter Status Menu - Part 2 of 3312
Figure 536: Soft Starter Status Menu - Part 3 of 3312
Expansion Status313
Riser Board Status313
Figure 537: EXPANSION STATUS Menu - Expansion Group313
Figure 538: Active Expansion Board Status313
Figure 539: Inactive Expansion Board Status313
Hall Call Status314
Figure 540: Active Riser Board Status314
Figure 541: Inactive Riser Board Status314
Figure 542: HALL CALL STATUS Menu314
Cpld315
Figure 543: up CALLS Menu315
Figure 544: down CALLS Menu315
Figure 545: CPLD STATUS Menu - MR, CT, COP CPLD315
Figure 546: MR CPLD Menu315
Figure 547: MR CPLD Menu Continued316
Figure 548: CT CPLD Menu316
Figure 549: CT CPLD Menu Continued316
Figure 550: COP CPLD Menu316
Figure 551: COP CPLD Menu Continued316
Table 50: CPLD Menu Description316
Table 51: CPLD Fault317
Table 52: CPLD Preflight Status320
Table 53: CPLD Preflight Command320
Table 54: CPLD Inputs321
E-Power Status322
Figure 552: E-POWER COMMAND Menu322
Figure 553: E-POWER COMMAND Menu Continued322
EMS Status323
Figure 554: EMS STATUS Menu - Car 1 Assigned323
Virtual Inputs324
Remote Commands324
Car Call Security324
Figure 555: EMS STATUS Menu - no Cars Assigned324
Figure 556: REMOTE COMMANDS Menu - Car Call Security324
Figure 557: SECURE CAR CALLS Menu - Front or Rear324
Hall Call Security325
Figure 558: Secure Car Front Menu325
Figure 559: Secure Car Rear Menu325
Figure 560: REMOTE COMMANDS Menu - Hall Call Security325
Figure 561: SECURE HALL CALLS Menu - Front or Rear325
Virtual Input326
Figure 562: Secure Front Hall Call Menu326
Figure 563: Secure Rear Hall Call Menu326
Figure 564: REMOTE COMMANDS Menu - Virtual Inputs326
Figure 565: Virtual Input Menu326
Recall Input327
Door Command Landing327
Figure 566: REMOTE COMMANDS Menu - Recall Input327
Figure 567: Recall Floor/Door Menu327
Figure 568: REMOTE COMMANDS Menu - Door Command Landing327
DIP Status328
Door Status328
Figure 569: Door Command Landing Menu328
Figure 570: DIP STATUS Menu - MR, CT, or COP DIP328
Figure 571: DIP SWITCHES Menu328
Figure 572: Door Status Menu328
Group Setup329
Group Car Index329
Group Landing Offset329
Figure 573: GROUP SETUP Menu - Group Car Index329
Figure 574: GROUP CAR INDEX Menu329
Figure 575: GROUP SETUP Menu - Group Landing Offset329
Dispatch Timeout330
Dispatch Offline Timeout330
Figure 576: GROUP LANDING OFFSET Menu330
Figure 577: GROUP SETUP Menu - Dispatch Timeout330
Figure 578: DISPATCH TIMEOUT Menu330
Xreg331
Xreg Cars331
Figure 579: GROUP SETUP Menu - Dispatch Offline Timeout331
Figure 580: DISPATCHING OFFLINE TIMEOUT Menu331
Figure 581: GROUP SETUP Menu - XREG Cars331
Xreg Destination Timeout332
Xreg Destination Offline Timeout332
Figure 582: NUMBER XREG CARS Menu332
Figure 583: GROUP SETUP Menu - Xreg Destination Timeout332
Figure 584: XREG DESTINATION TIMEOUT Menu332
Xreg Destination333
Xreg Data333
Figure 585: GROUP SETUP Menu - Xreg Destination Offline Timeout333
Figure 586: XREG DESTINATION OFFLINE TIMEOUT Menu333
Figure 587: DESTINATION Menu333
PI Labels334
Attendant334
Figure 588: Emergency Power Status Menu334
Figure 589: Fire Emergency Power Status Menu334
Figure 590: SET PI LABEL Menu334
Dispatch Timeout335
Buzzer Time335
Figure 591: ATTENDANT Menu - Dispatch Timeout335
Figure 592: DISPATCH TIMEOUT Menu335
Figure 593: ATTENDANT Menu - Buzzer Time335
Real Time Clock336
Clock Status336
Figure 594: BUZZER TIME Menu336
Figure 595: Real-Time Clock Menu336
Figure 596: Clock Menu336
Debug338
View Debug338
Figure 597: View Debug Data Menu338
Table 55: Data Index for MR, CT, and COP Board Communication338
Enter Car Calls340
Figure 598: ENTER CAR CALLS Menu - Front or Rear340
Enter Hall Calls341
Enter Door Command341
Figure 599: ENTER CAR CALL Menu341
Figure 600: Hall Call Menu341
View Network Packet342
View Group Packet342
Figure 601: Enter Door Command Menu (Front and Rear Doors)342
Figure 602: Enter Door Command Menu (Front Doors Only)342
Figure 603: Network Packet342
Acceptance Test343
Emergency Bitmap343
Module Statuses343
Figure 604: Group Packet343
Figure 605: SELECT ACCEPTANCE TEST Menu343
Figure 606: EMERGENY STATUS Menu343
Motion Status344
Pattern Data344
Figure 607: MODULE STATUS Menu - Motion Status344
Figure 608: Motion Status Menu Part 1 of 2344
Figure 609: Motion Status Menu Part 2 of 2344
Figure 610: Module Status Menu - Pattern Data344
Auto Status345
Recall Status345
Figure 611: PATTERN DATA Menu Part 1 of 2345
Figure 612: PATTERN DATA Menu Part 2 of 2345
Figure 613: MODULE STATUS Menu - Auto Status345
Figure 614: Auto Operation Status Menu345
Fire Status346
Figure 615: MODULE STATUS Menu - Recall Status346
Figure 616: Recall Status Menu346
Figure 617: MODULE STATUS Menu - Fire Status346
Figure 618: Fire Status Menu346
Counterweight Status347
Floor Learn Status347
Figure 619: MODULE STATUS Menu - Counterweight Status347
Figure 620: Counterweight Status Menu347
Figure 621: MODULE STATUS Menu - Floor Learn Status347
Car Destination348
Figure 622: Floor Learn Status Menu348
Figure 623: DESTINATION Menu348
Run Counter349
Debugruns349
Dwell Time349
Figure 624: RUN COUNTER Menu349
Figure 625: DEBUGRUNS Menu - Dwell Time349
Figure 626: RUN DWELL TIME Menu349
Terminal to Terminal350
Figure 627: DEBUGRUNS Menu - Terminal to Terminal350
Figure 628: TERMINAL to TERMINAL Menu - Front or Rear350
Figure 629: TERMINAL to TERMINAL FRONT Menu350
Figure 630: TERMINAL to TERMINAL REAR Menu350
Floor to Floor351
Random351
Figure 631: DEBUGRUNS Menu - Floor to Floor351
Figure 632: FLOOR to FLOOR Menu - Front or Rear351
Figure 633: FLOOR to FLOOR FRONT Menu351
Figure 634: FLOOR to FLOOR REAR Menu351
Hall Random Runs352
Figure 635: DEBUGRUNS Menu - Random352
Figure 636: RANDOM Menu - Front or Rear352
Figure 637: RANDOM RUNS FRONT Menu352
Figure 638 RANDOM RUNS REAR Menu352
About353
Figure 639: DEBUGRUNS Menu - Hall Random Runs353
Figure 640: HALL RANDOM RUNS Menu353
Figure 641: JOB ID353
Faults354
Active Faults354
Figure 642: Active Faults Menu354
Figure 643: Fault Part 1 of 3354
Figure 644: Fault Part 2 of 3354
Figure 645: Fault Part 3 of 3354
Logged Faults355
Cleared Faults355
Figure 646: FAULT LOG Menu355
Figure 647: CLEAR FAULT LOG? Menu355
Table 56: Faults Reported by Software or Hardware355
Alarms356
Active Alarms356
Logged Alarms356
Figure 648: Active Alarms Menu356
Figure 649: Alarm Part 1 of 2356
Figure 650: Alarm Part 2 of 2356
Cleared Alarms357
Figure 651: ALARM LOG Menu357
Figure 652: CLEAR ALARM LOG? Menu357

Smartrise HYDRO:EVOLVED User Manual

Table of Contents

Other manuals for Smartrise HYDRO:EVOLVED

Questions and Answers:

Smartrise HYDRO:EVOLVED Specifications

Related product manuals

Brand	Smartrise
Model	HYDRO:EVOLVED
Category	Controller
Language	English
