8.9.3. TROUBLE SHOOTING
8.9.3.1. CASE 1
• Check first 24V1 on ARPS (see chapter 8.6, page 176).
• Check STARC internal power supplies leds.
• If 5V or 3.3 V led is off, change the CPU.
• If one of the other leds is off, change the STARC.

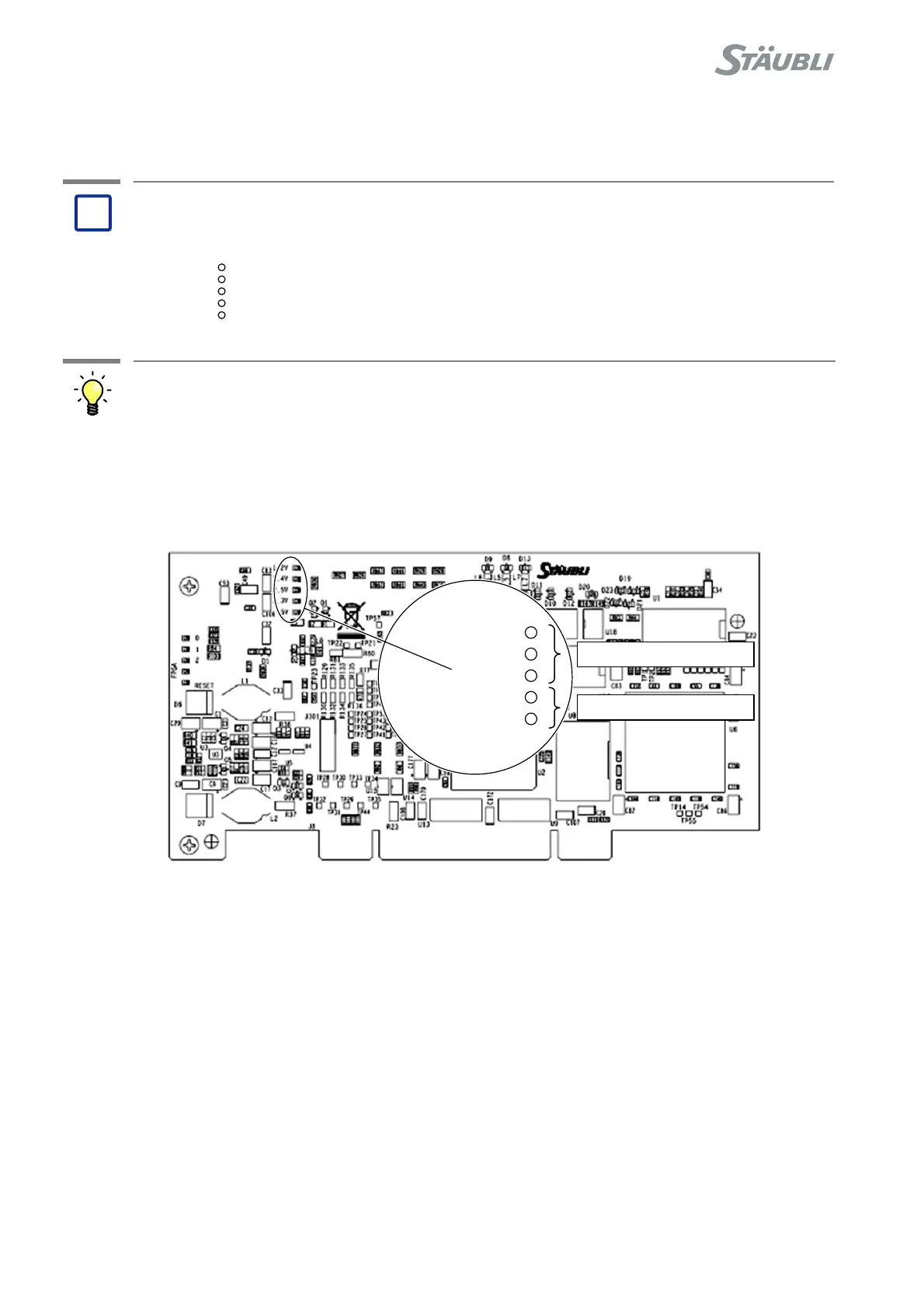

Figure 8.68
Problem:
No lights at all on STARC.
Solution:
?
(A)
(B)
(C)
(D)
(E)
1.2 V
1.4 V
2.5 V
3.3 V
5 V
Change the STARC
Change the CPU
