Lifting
Lifting system variants
The movement of the fork carriage and the lift
mast heavily depends on the following equip-
ment:
●
The lift mast with which the truck is equip-
ped, see
⇒
Chapter "Lift mast versions",
Page 229
●
The operating device with which the hy-
draulic functions are controlled, see
⇒
Chapter "Operating devices for the lifting
system", Page 231
Regardless of the equipment variants of the
truck, the basic specifications and procedures
must be complied with, see
⇒
Chapter "Safety
regulations when handing loads", Page 257 .
Lift mast versions
DANGER
Risk of accident if the lift mast or the load collides
with low ceilings or entrances.
– Note that the inner lift mast or load may be higher
than the fork carriage.
– Observe the heights of ceilings and entrances.
One of the following lift masts may be attach-
ed to the truck:

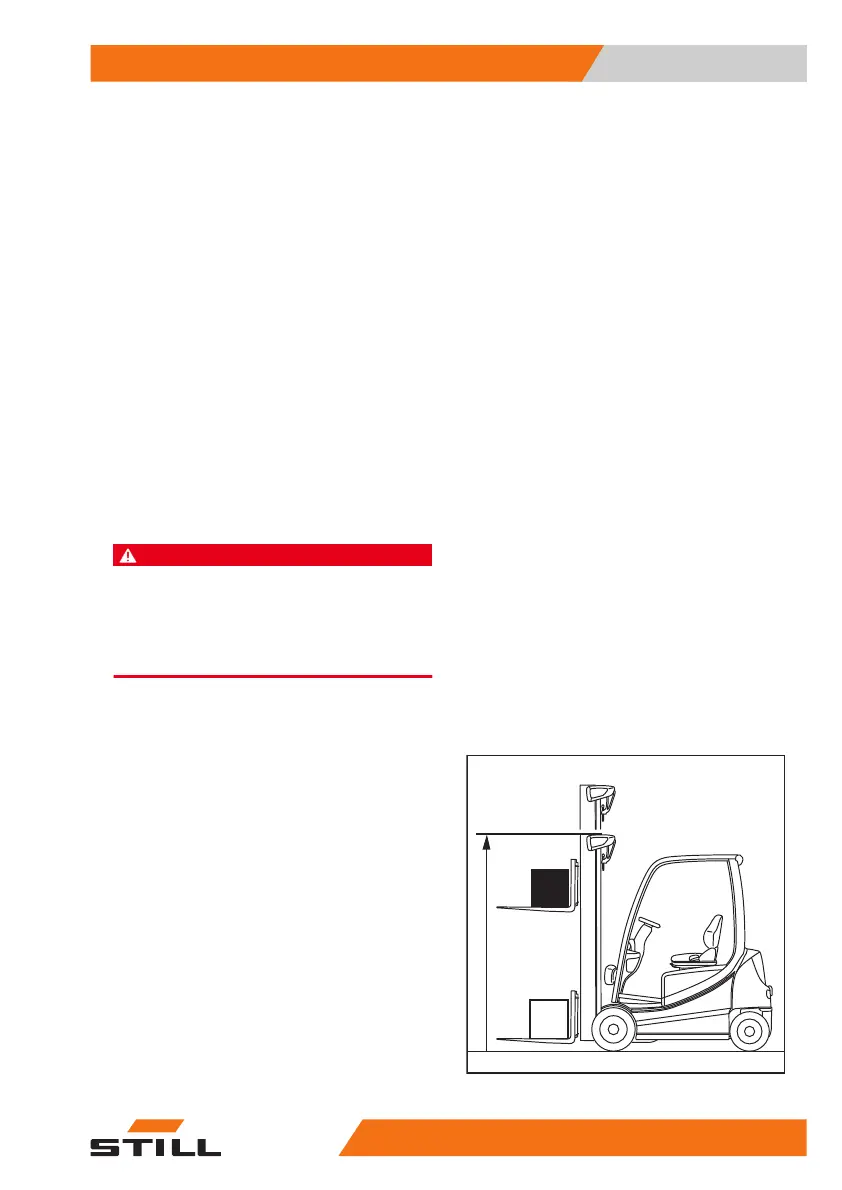

Telescopic lift mast
When lifting, the lift mast rises above the outer
lift cylinders. The lift mast takes the fork car-
riage with it via the chains. In this scenario,
the fork carriage rises at twice the speed of
the inner lift mast. The top edge (1) of the in-
ner lift mast can therefore be higher than the
fork carriage.
1
Operation
4
Lifting
