Check the hydraulic oil level
WARNING
Hydraulic oils are hazardous to your health.
– Observe the safety regulations set out in the
chapter entitled "Hydraulic fluid".
NOTE
When changing to a different type of hydraulic
oil, the authorised service centre must adjust
the parameters of the truck control unit.
– Park the truck securely on a horizontal sur-
face.
– Tilt the lift mast backwards until it reaches
the stop.
– Lower the fork carriage; if attachments are
fitted, retract the working cylinders.
CAUTION
Potential for damage to the battery male connector!
If the battery male connector is disconnected while
the truck is switched on (under load), an arc will be
produced. This can lead to erosion at the contacts,
which considerably shortens the service life of the
contacts.
– Switch off the truck before the battery male con-
nector is disconnected.
– Do not disconnect the battery male connector
while the truck is switched on, except in an emer-
gency.
– Disconnect the battery male connector.

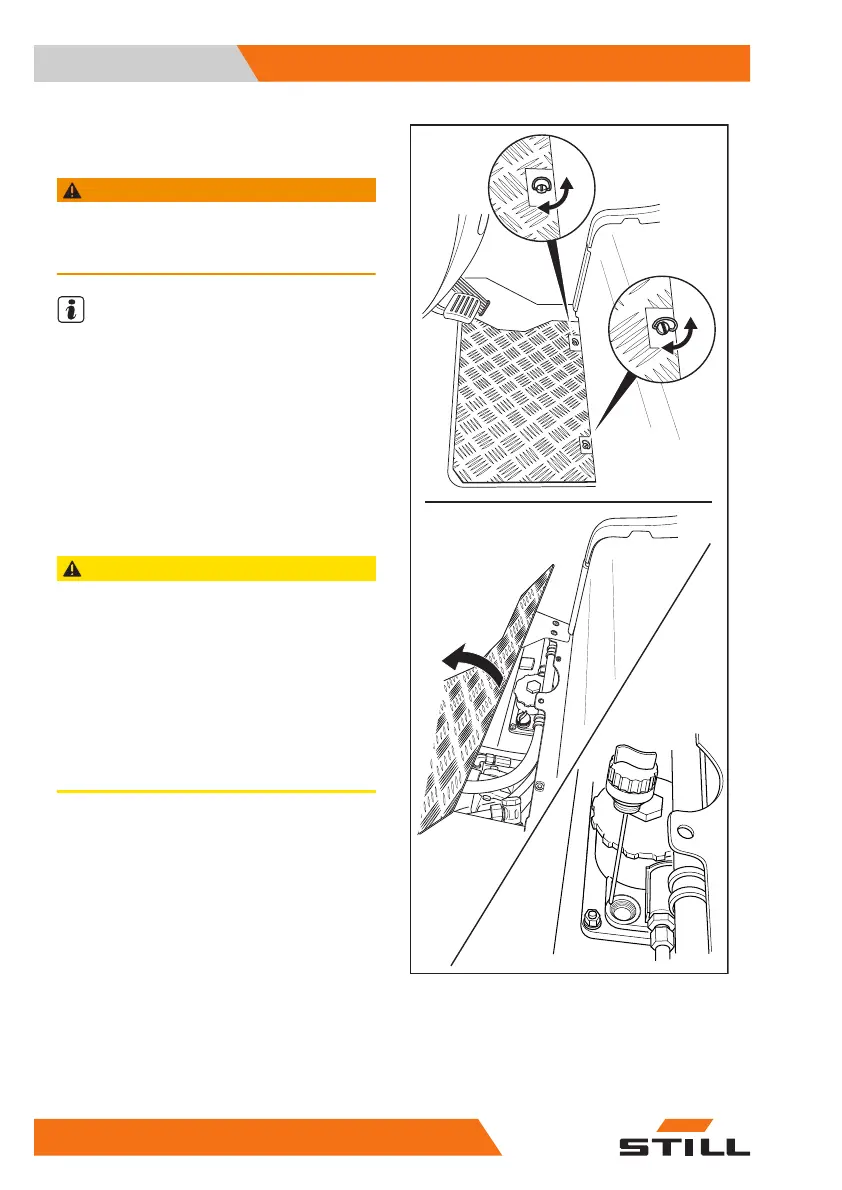

– Turn the bayonet catches on the bottom
plate 90° to the left.
– Fold up the bottom plate and hold it in
place.
– Unscrew the breather filter with the dipstick
in an anti-clockwise direction.
– Keep the breather filter and dipstick in a
horizontal position.
– Check the oil level on the dipstick.
