ENVIRONMENT NOTE
Carefully collect any spilt hydraulic oil. Dis-
pose of this hydraulic oil in accordance with
environmental regulations.

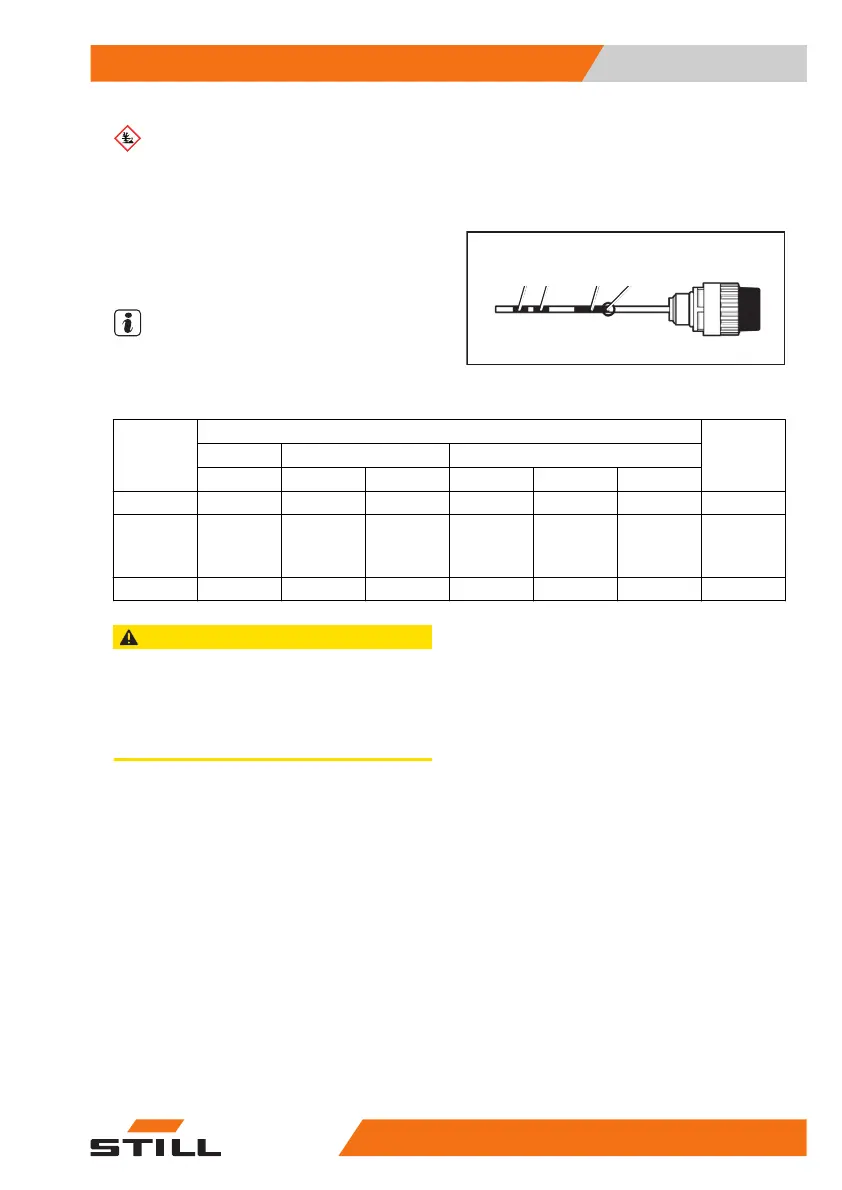

The marks (1), (2) and (3) indicate the mini-
mum filling levels for the different lift mast ver-
sions.
NOTE
The optimum hydraulic oil level is between the
marks (3) and (max) for all lift mast versions.
Assignment of the lift mast version to the mark on the dipstick
Marking
Overall height [mm]
Oil filling
quantity [l]
Easy View Telescopic lift mast NiHo and triple mast
2.0 t 1.6 to 1.8 t 2.0 t 1.6 t 1.8 t 2.0 t
1 ≤ 2610 ≤ 3010 ≤ 2610 ≤ 2110 ≤ 2160 ≤ 1910 23.3
2-
3060
...
3260
2660
...
3260
2160
...
2660
2210
...
2710
1960
...
2310
25.3
3 - - - ≥ 2710 ≥ 2760 ≥ 2360 29.9
CAUTION
Risk of damage.
If the hydraulic oil level is too low, the steering is re-
stricted and the pump may be damaged.
– If the oil level is too low, do not use the truck and
contact the authorised service centre.
– Screw in the breather filter and the dipstick
in a clockwise direction.
– Close the bottom plate again.
– Connect the battery male connector.
6219_003-280
1 2 3 max
Maintenance
5
Preserving operational readiness
47556368011531 EN - 01/2021 - 05
