Before picking up a load
Load capacity
The load capacity indicated for the truck on
the capacity rating plate must not be excee-
ded. The load capacity is influenced by the
load centre of gravity and the lift height as well
as by the tyres, if applicable.
– The position of the capacity rating plate can
be taken from the "labelling points".
WARNING
The figures show examples.
Only the capacity rating plates on the truck are valid!
The attachment of additional weights to in-
crease the load capacity is prohibited.
DANGER
Risk of fatal injury from the truck losing stability!
Never exceed the maximum loads shown! These val-
ues apply to compact and homogeneous loads. If
these values are exceeded, the stability and rigidity
of the fork arms and lift mast cannot be guaranteed.
Improper or incorrect operation or the placement of
persons to increase load capacity is prohibited.
660
800
680
800 930
4830
690
800 950
4630
710
860 970
4230
730
880 1000
800
600
3830
910
5030
500
2
1
3

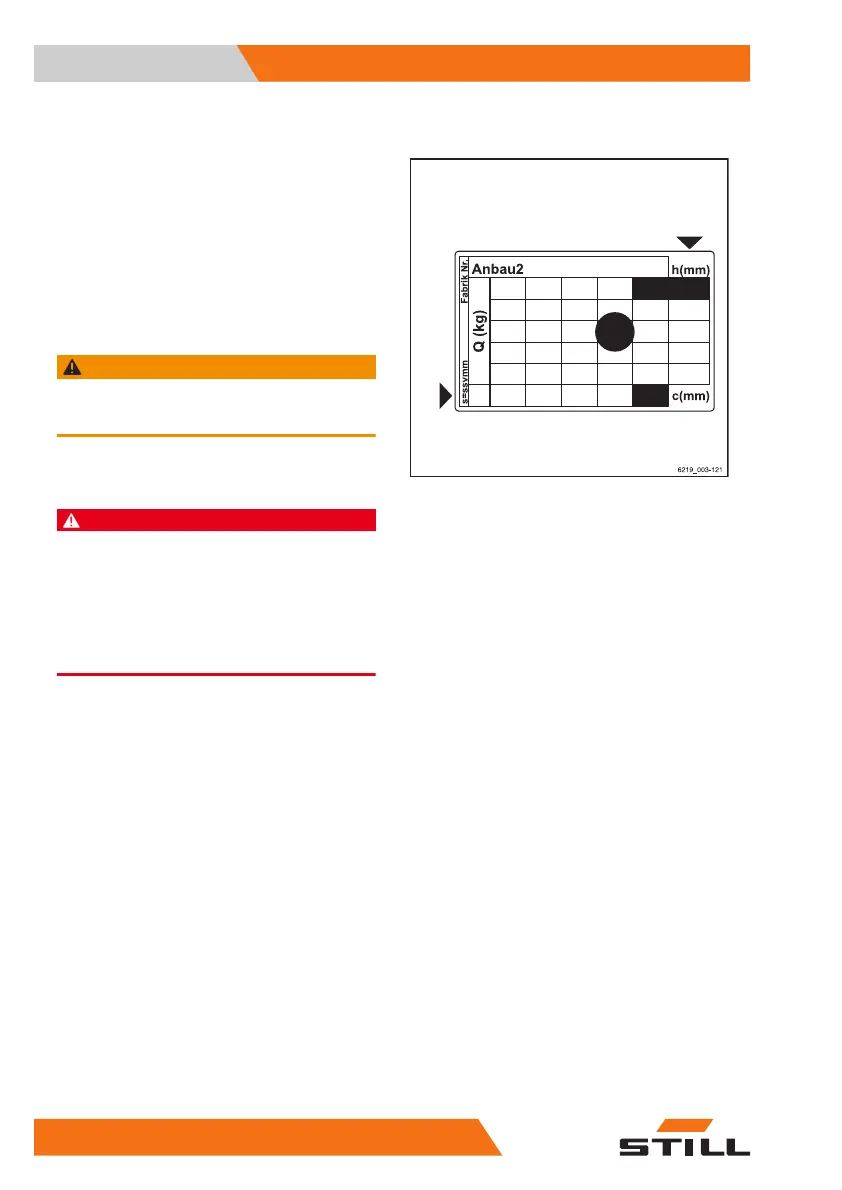

Capacity rating plate
Load distance from fork back
Permissible lift height
Weight of load to be lifted
1
2
3
Operation
4
Handling loads
