Explosion-protection warning lights
DANGER
Risk of explosion!
During operation, the surface tempera-
tures and insulation values of various
components are monitored by sensors.
– Do
not
operate the truck when a
warning light is illuminated.

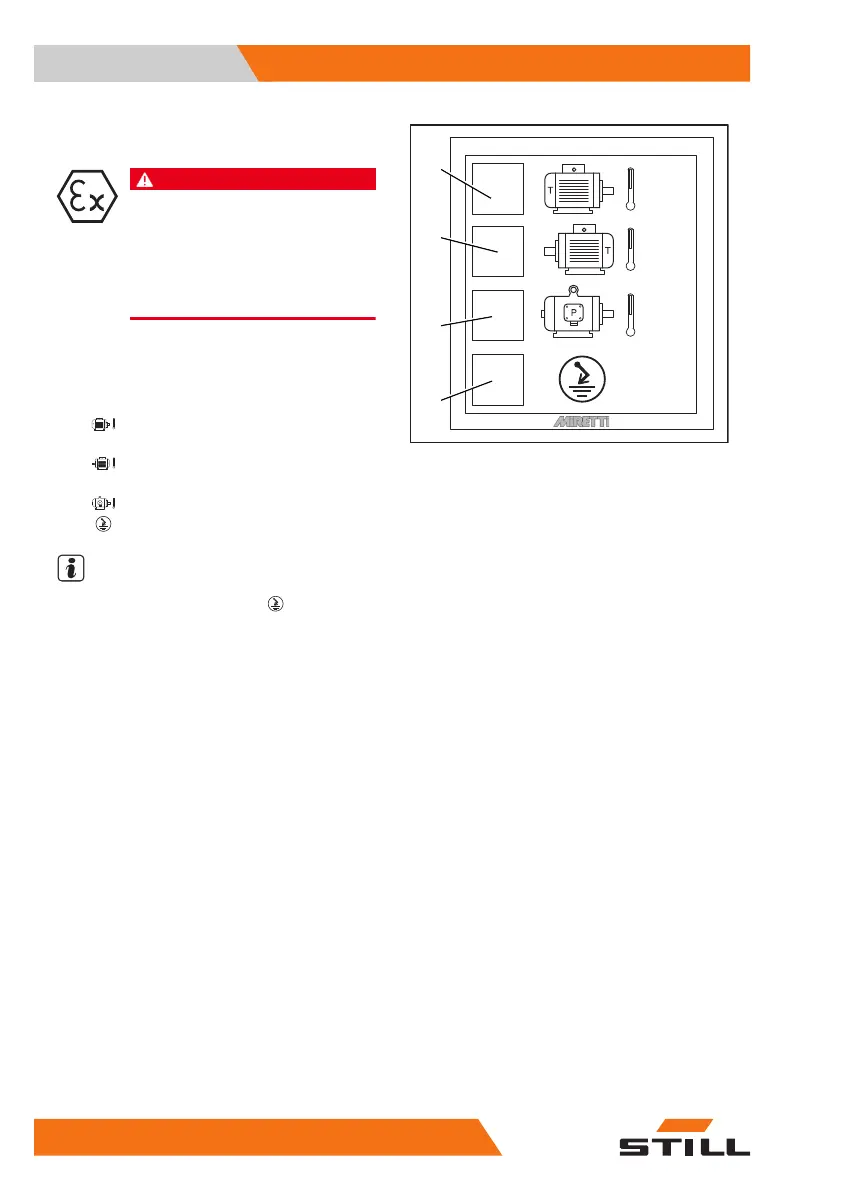

The explosion-protection warning lights are lo-
cated on the left-hand post, in the driver's field
of view. The warning lights indicate when limit
values are reached.
1
Temperature of the right-hand trac-
tion motor
2
Temperature of the left-hand traction
motor
3
Pump motor temperature
4
Insulation warning light
NOTE
The explosion-protection light insulation
warning is not present in category 3 trucks.
– See the section on "Behaviour when the ex-
plosion-protection warning lights are illumi-
nated" in the "Display messages" chapter.
Battery isolating switch
The battery isolating switch (1) is located on
the right next to the storage compartment. It
switches the electrical system into a de-ener-
gised state.
Use this switch to shut down the truck safely.
The battery isolating switch must be labelled
in the language of the country in which it is be-
ing used. Only the authorised service centre
may change the labelling.
There are two versions of the battery isolating
switch:
1
2
3
4
6219_901-017
