Still 6219 - Picking up a Load Using Attachments

The attachment moves accordingly in the di-
rections (E) or (F) as shown in the pictogram.
– Push the horizontal rocker button (1) in the
direction (G) or (H).
The attachment moves accordingly in the di-
rections (G) or (H) as shown in the pictogram.
– Release shift key "F" (4).
NOTE
The pictograms are affixed according to the
attachment fitted at the factory. If an attach-
ment with different functions is fitted, the au-
thorised service centre must check that the
pictograms bear the correct representation
and must change them if necessary.
Picking up a load using attachments
WARNING
Risk of accident!
Attachments must only be deployed for their inten-
ded use as described in the relevant operating in-
structions.
Drivers must be taught how to operate the attach-
ments.
WARNING
Risk of accident!
Loads may only be picked up and transported with
attachments if the loads are securely grasped and at-
tached. Where necessary, loads must also be se-
cured against slipping, rolling, falling over, swinging
or tipping over. Note that any change to the position
of the load centre of gravity will affect the stability of
the truck.

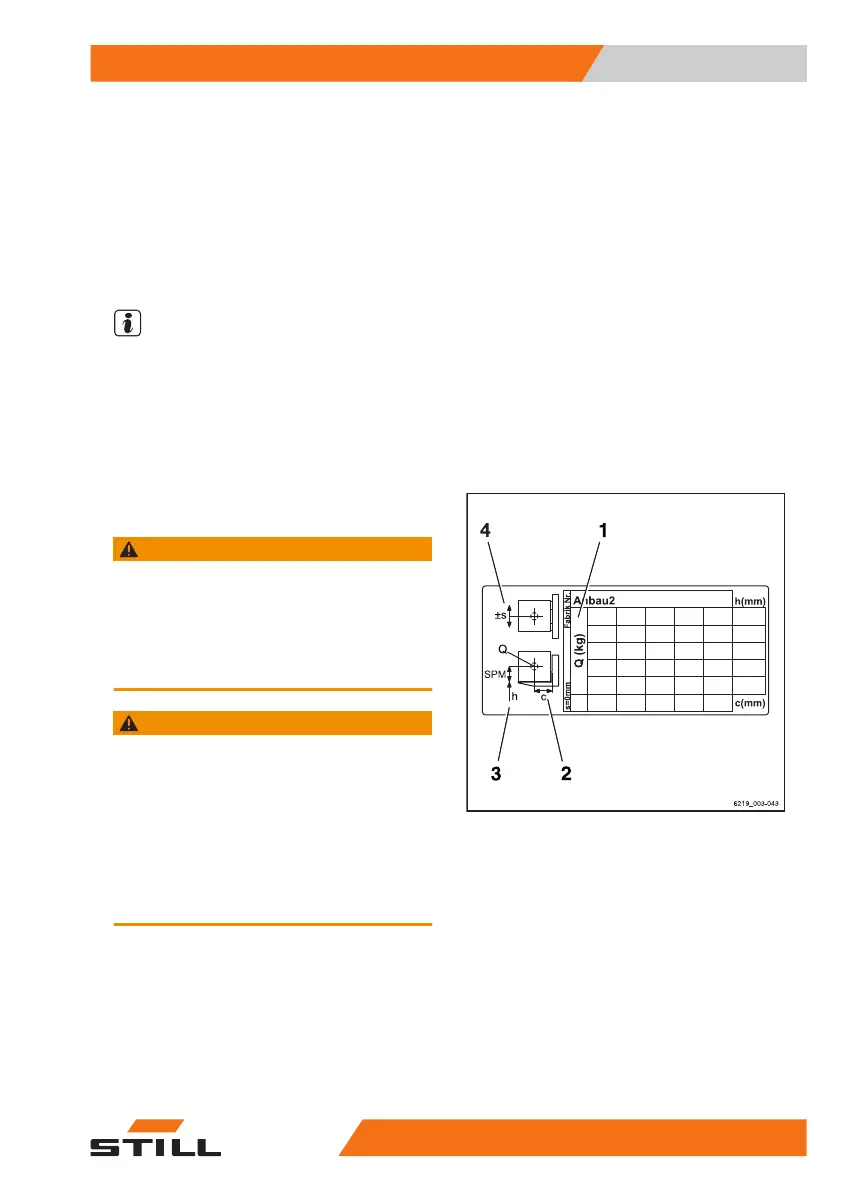

Check the capacity rating plates for the attachments
or combination of attachments.
– The rating plates show the permissible val-
ues for:
1 Load capacity Q (kg)
2 Load distance C (mm)
3 Lift height h (mm)
4 Permissible sideshift s (mm)

