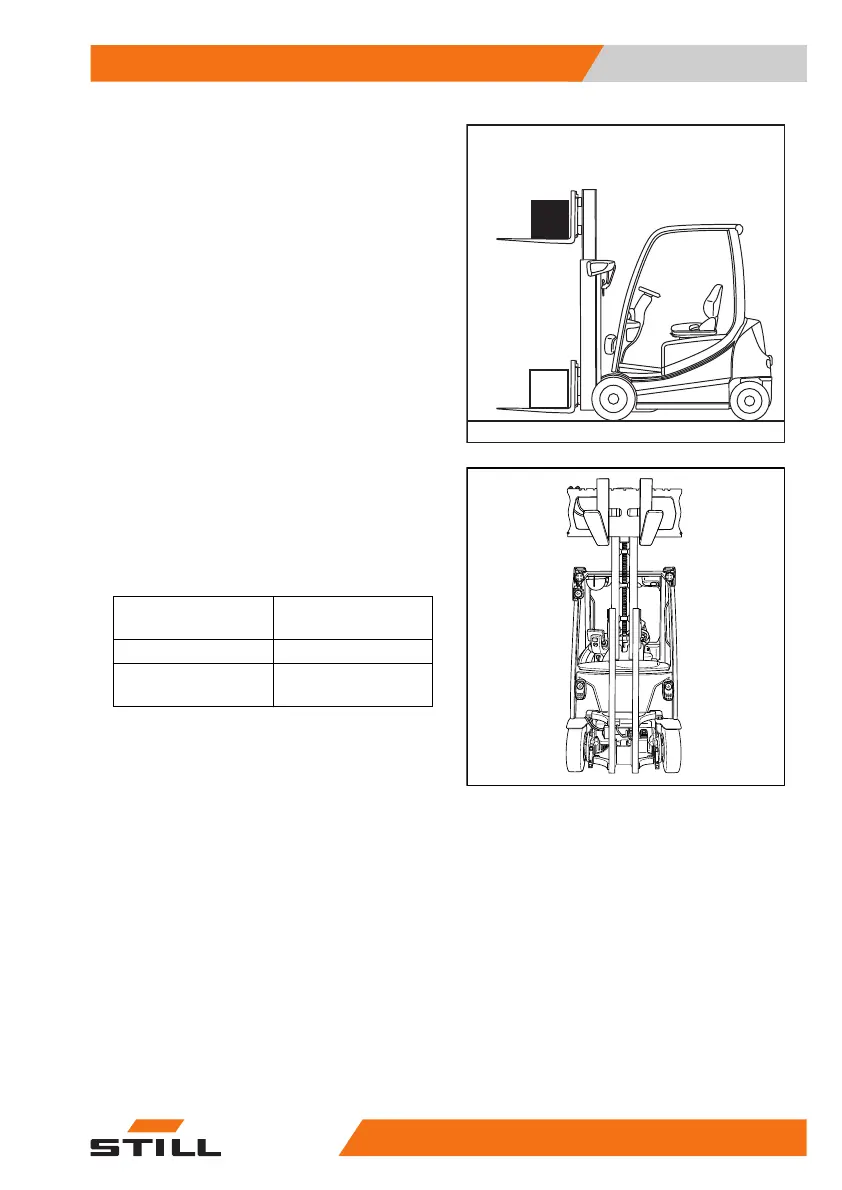

Mono lift mast "Easy-View"
When lifting, the inner lift mast rises above the
outer lift cylinders. The lift mast takes the fork
carriage with it via a chain. In this scenario,
the fork carriage rises at twice the speed of
the inner lift mast.
This lift mast has a low, narrow design to
make it easier to handle pallets. The driver
has an unobstructed view past the lift mast to
the left and right, and can also see over the lift
mast.
Data
Height: lift mast re-
tracted (h
1
)
1650 mm
Height: lift (h
3
) 2137 mm
Rated capacity: load
(Q)
2000 kg
Operating devices for the lifting sys-
tem
The method of operating the lifting system de-
pends on the operating devices included in the
truck's equipment.
Possible equipment variants include:
●
Multi-lever
●
Double mini-lever
●
Triple mini-lever
●
Quadruple mini-lever
6219_003-226
Operation
4
Lifting
