Picto-
gram
Attachment function
Adjust fork arms: close
Rotate to the left
Rotate to the right
NOTE
The pictograms are affixed according to the
attachment fitted at the factory. If an attach-
ment with different functions is fitted, the au-
thorised service centre must check that the
pictograms bear the correct representation
and must change them if necessary.

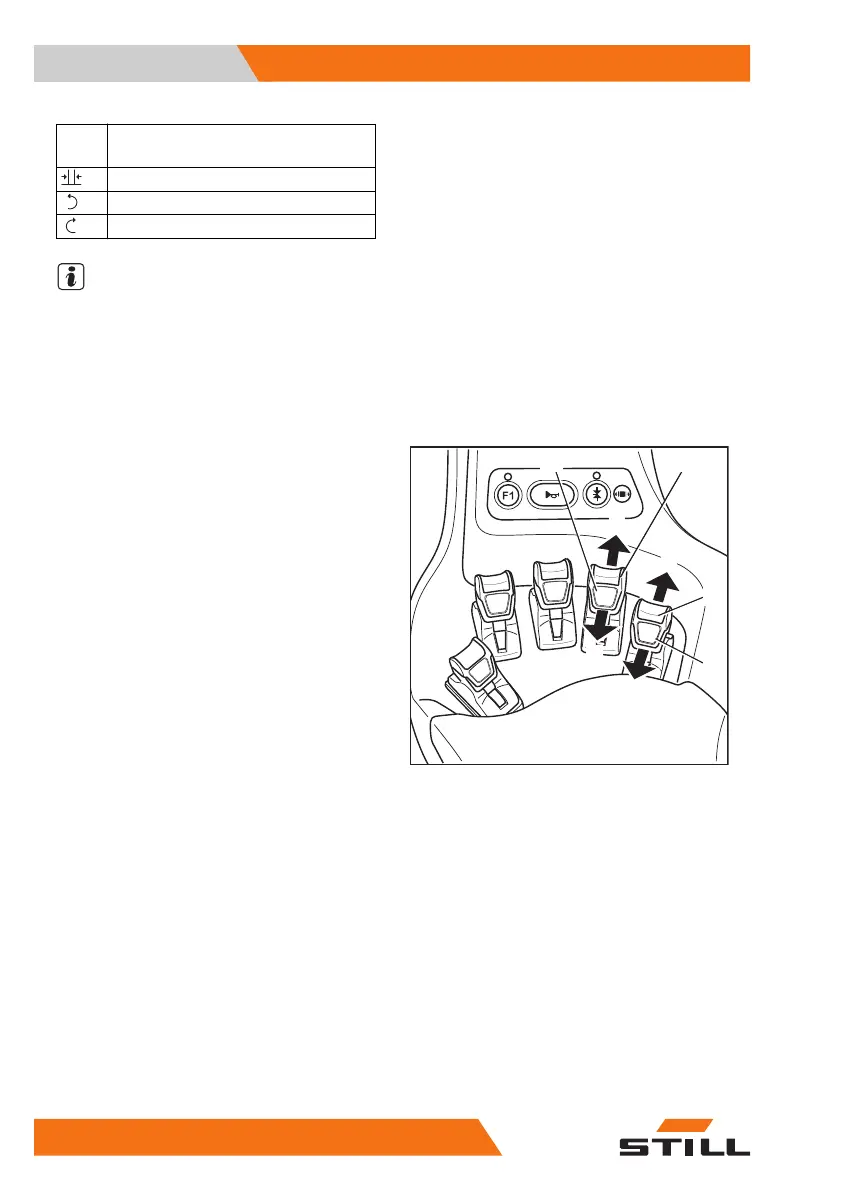

Controlling attachments using the
Fingertip
In this version, the attachments (variant) are
controlled using the operating levers (1) and
(2). The adhesive label bearing the pictograms
for the hydraulic functions (3) for the operating
lever (2) and the adhesive label (4) for the op-
erating lever (1) are affixed at the designated
points.
– If the adhesive labels become illegible or
are missing, please contact your authorised
service centre.
– Observe the pictograms for the attachment
functions on the adhesive labels (3, 4).
The pictograms on the operating levers show
the respective functions that are activated by
these levers.
The following applies:
– Move the operating lever (1) in the direction
of the arrow (A) or (B).
The attachment moves accordingly in the di-
rections (A) or (B) as shown in the pictogram.
– Move the operating lever (2) in the direction
of the arrow (C) or (D).
The attachment moves accordingly in the di-
rections (C) or (D) as shown in the pictogram.
A
B
C
D
1 2
3
4
Operation
4
Attachments
324 56368011531 EN - 01/2021 - 05
