Depressurising the hydraulic circuits for
the basic functions
The basic functions include the first four hy-
draulic functions. The basic functions are con-
trolled via the first two hydraulic circuits.
The basic functions are:
●
Lifting the fork carriage
●
Lowering the fork carriage
●
Tilting the lift mast forwards
●
Tilting the lift mast backwards

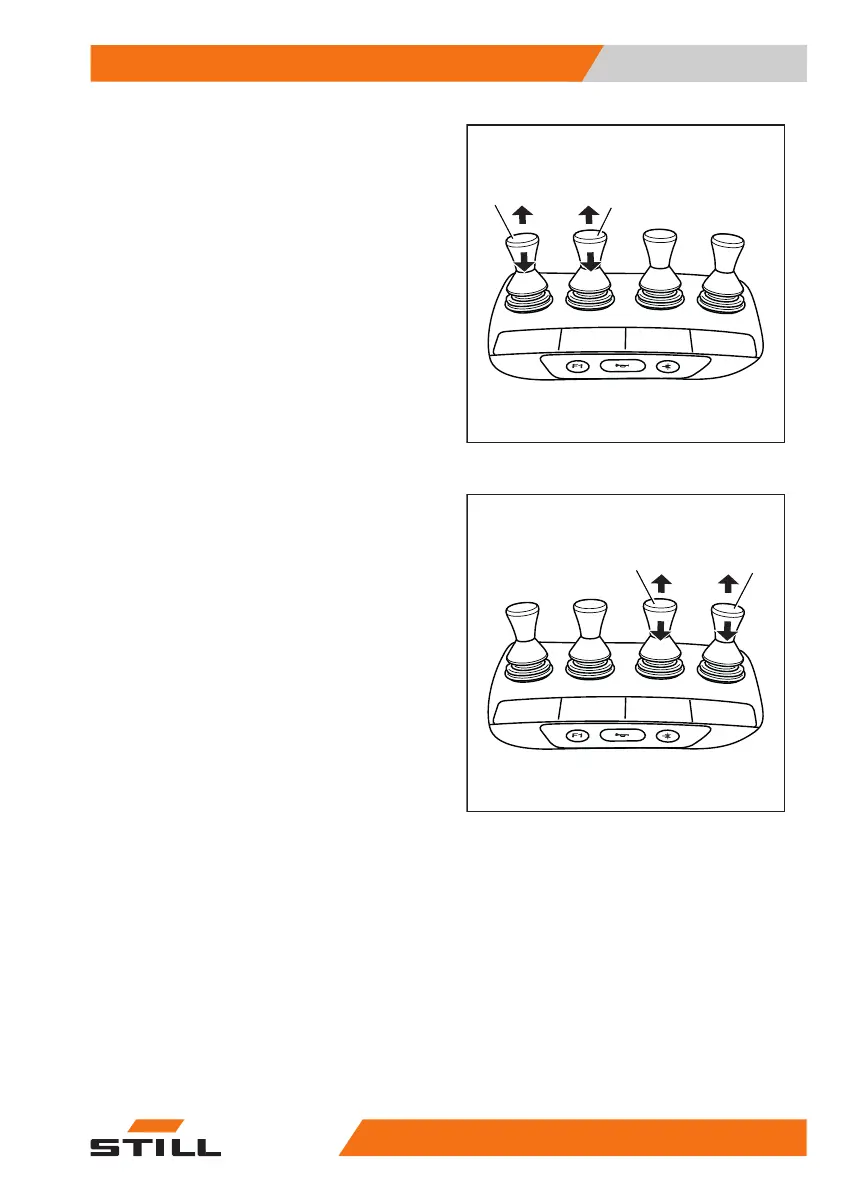

– Push the operating levers (1, 2) once in the
direction of the arrow until the end position
is reached.
The hydraulic circuits of the basic functions
are now depressurised.
Depressurising the hydraulic circuits for
the additional functions
The additional features include features such
as the sideshift and fork adjustment. Clamping
attachments are also connected to these hy-
draulic circuits. These functions are controlled
via hydraulic circuits three and four.
– Actuate the operating levers (1, 2) for con-
trolling the additional functions once in the
direction of the arrow until the end positions
are reached.
The hydraulic circuits of the additional func-
tions are now depressurised.
Completing the depressurisation
– To complete the depressurisation, observe
the section entitled "Exiting the wizard".
Depressurising the hydraulic sys-
tem using the quadruple mini-lever
and the 5th function
If the truck is equipped with the quadruple
mini-lever, the attachments can also be con-
trolled via the "5th hydraulic function".
– Start the "wizard for depressurising the hy-
draulic system".
12
6219_003-245
12
6219_003-246
Operation
4
Depressurising the hydraulic system
29156368011531 EN - 01/2021 - 05
