Controlling the lifting system using
multi-lever operation
DANGER
Reaching into or climbing between moving parts of
the truck (e.g. lift mast, sideshifts, working equip-
ment, load carrying devices etc.) can lead to seri-
ous injury or death and is therefore prohibited.
– Observe the safety regulations for handling loads.
– Operate the lifting system from the driver's seat
only.
WARNING
Risk of accident as a result of an operating error!
These operating instructions describe how to operate
the lifting system in the factory configuration.
If the authorised service centre has configured a dif-
ferent configuration, the newly applied pictograms
must be observed to ensure safe operation. The op-
erating company must make all drivers aware of the
fact that a different configuration has been config-
ured.
– Observe the pictograms on the operating levers.
– Before use, check that the hydraulic functions are
working correctly.

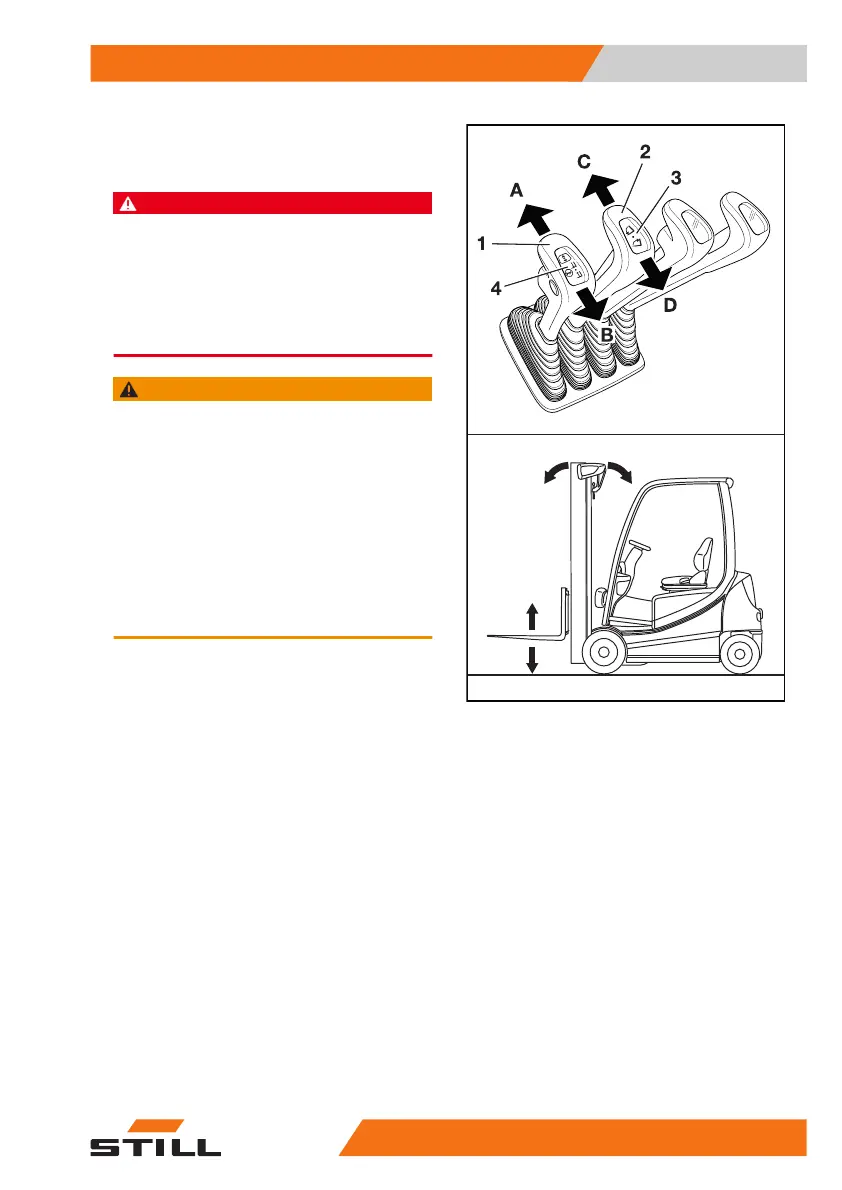

The lifting and lowering movements of the lift
mast are controlled using the "lift-lower" oper-
ating lever (1). The adhesive label with the
corresponding pictogram (4) is located on the
operating lever.
The tilting movement of the lift mast is control-
led using the "tilting" operating lever (2). The
adhesive label with the corresponding picto-
gram (3) is located on the operating lever.
The pictograms are arranged according to the
directions of movement of the operating lev-
er (1) or (2).
Lifting/lowering the fork carriage
To lift the fork carriage:
– Move the "lifting/lowering" operating lev-
er (1) in the direction of the arrow (B).
To lower the fork carriage:
– Move the "lifting/lowering" operating lev-
er (1) in the direction of the arrow (A).
DC
B
A
6219_003-111_V2
Operation
4
Lifting
23356368011531 EN - 01/2021 - 05
