Controlling the lifting system using a
triple mini-lever
DANGER
Reaching into or climbing between moving parts of
the truck (e.g. lift mast, sideshifts, working equip-
ment, load carrying devices etc.) can lead to seri-
ous injury or death and is therefore prohibited.
– Observe the safety regulations for handling loads.
– Operate the lifting system from the driver's seat
only.
WARNING
Risk of accident as a result of an operating error!
These operating instructions describe how to operate
the lifting system in the factory configuration.
If the authorised service centre has configured a dif-
ferent configuration, the newly applied pictograms
must be observed to ensure safe operation. The op-
erating company must make all drivers aware of the
fact that a different configuration has been config-
ured.
– Observe the pictograms on the operating levers.
– Before use, check that the hydraulic functions are
working correctly.

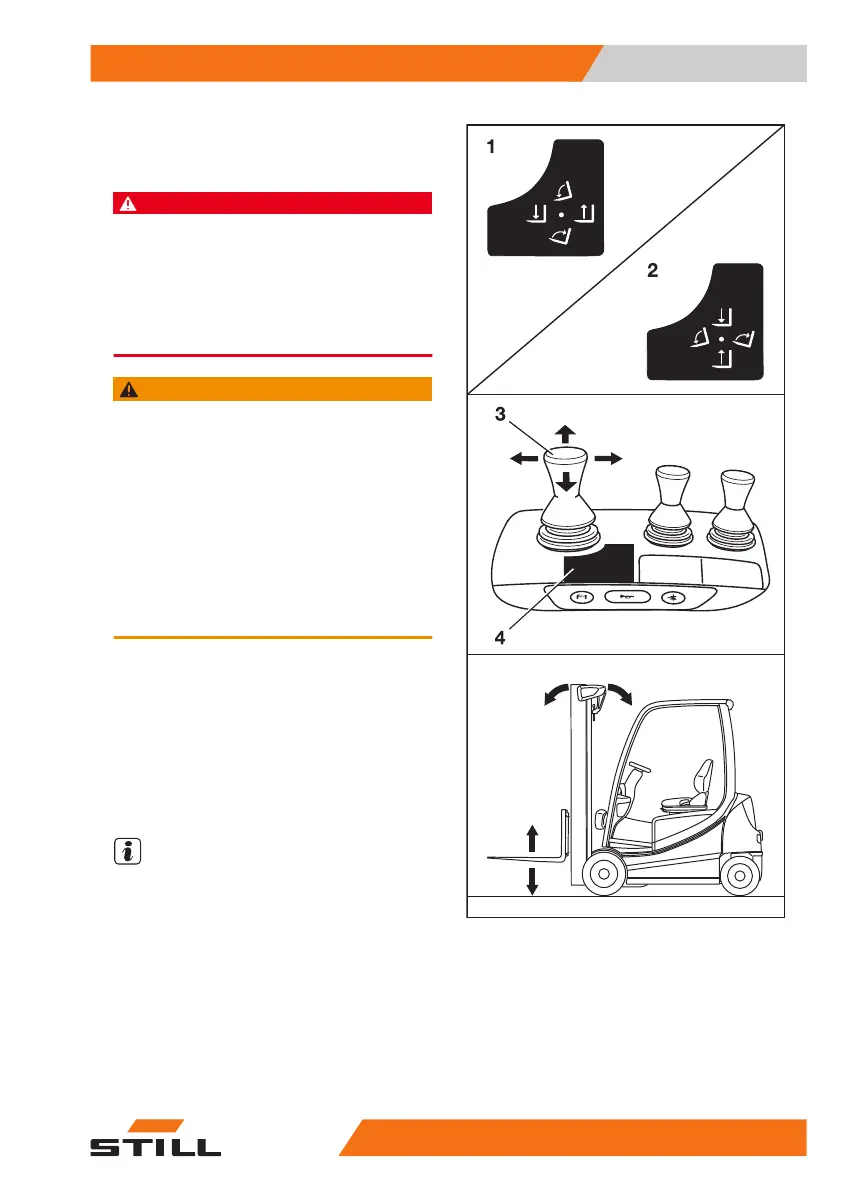

The lifting, lowering and tilting movements of
the lift mast are controlled using the "lift mast"
360° lever (3). The adhesive label bearing the
pictograms for the hydraulic functions (1) or
(2) is affixed at the designated point (4).
The pictograms are arranged according to the
direction of movement of the "lift mast" 360°
lever (3).
NOTE
The truck is configured at the factory in ac-
cordance with the adhesive label (1). The fol-
lowing steps for moving the fork carriage and
lift mast are based on this configuration.
Lifting/lowering the fork carriage
To lift the fork carriage:
– Move the "lift mast" 360° lever (3) in the di-
rection of the arrow (B).
To lower the fork carriage:
DC
B
A
AB
C
D
Operation
4
Lifting
23756368011531 EN - 01/2021 - 05
