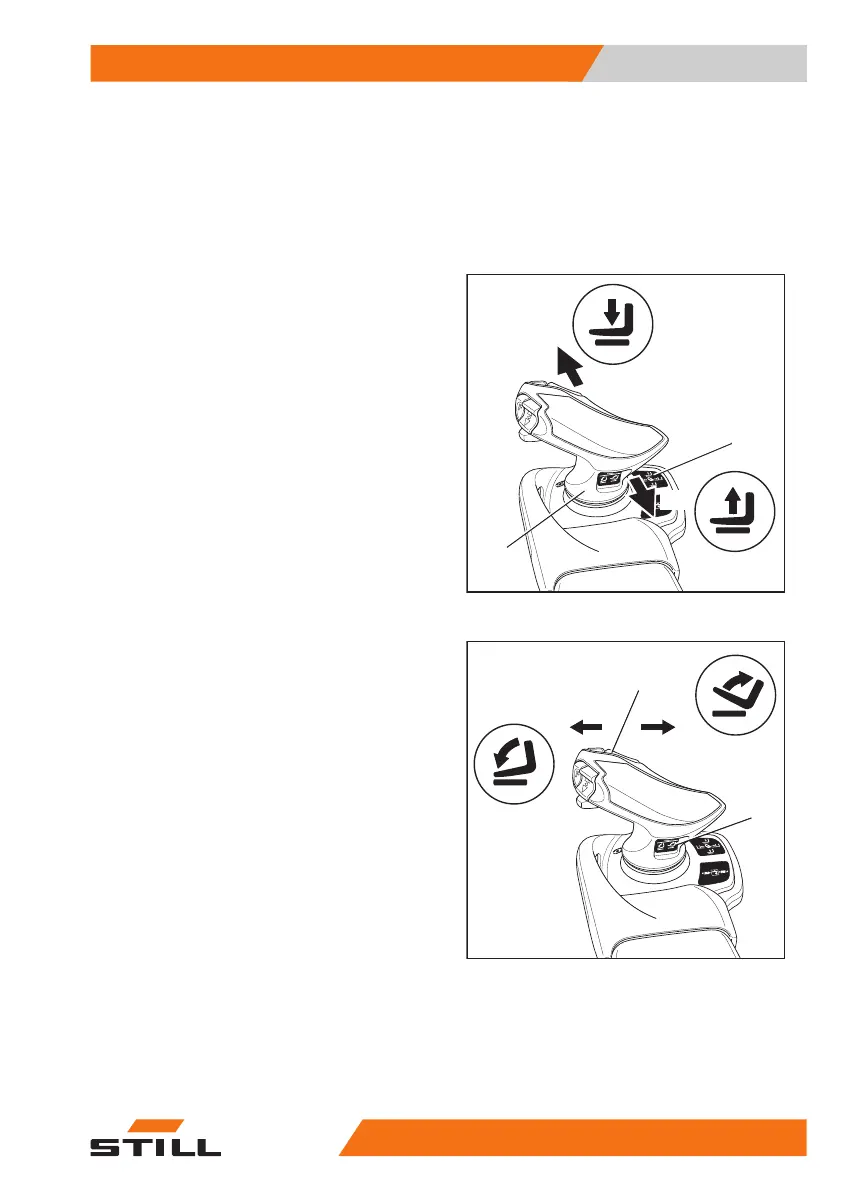

the pictograms for the hydraulic functions are
located in positions (2) and (4).
The pictograms are arranged according to the
directions of movement of the Joy-
stick 4Plus (1) and the horizontal rocker but-
ton (3).
Lifting/lowering the fork carriage
To lift the fork carriage:
– Pull the Joystick 4Plus (1) backwards (B).
To lower the fork carriage:
– Push the Joystick 4Plus (1) forwards (A).
Tilting the lift mast
To tilt the lift mast forwards:
– Tilt the horizontal rocker button (3) to the
left (C).
To tilt the lift mast backwards:
– Tilt the horizontal rocker button (3) to the
right (D).
+
F
6219_003-167_V3
1
2
A
B
+
F
6219_003-165_V3
D
C
3
4
Operation
4
Lifting
24356368011531 EN - 01/2021 - 05
