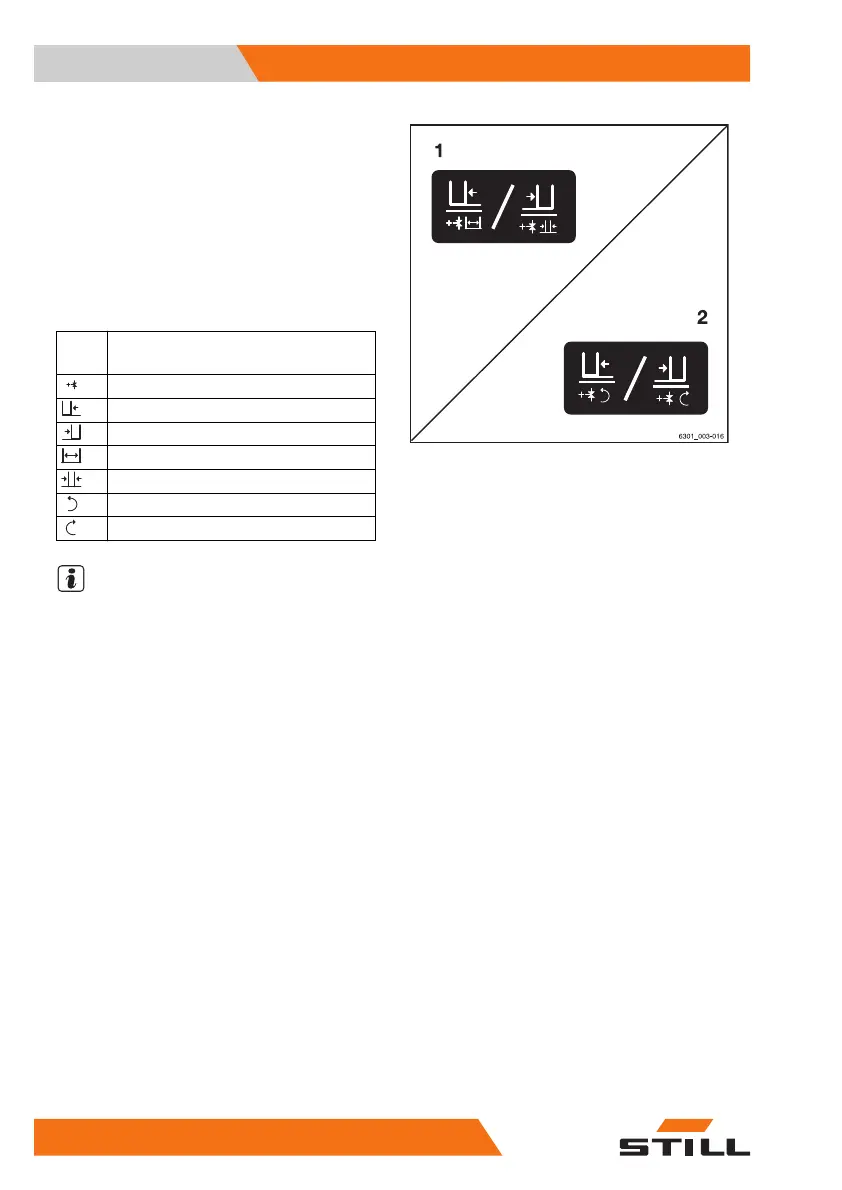

Example using the pictograms for configura-
tion (1):
If the operating lever (1) is moved in the direc-
tion of the arrow (E), the sideshift moves to
the left.
If the function key for the "5th function" (2) is
actuated and the operating lever (1) is moved
in the direction of the arrow (E), the fork arms
open.
Picto-
gram
Attachment function
Auxiliary hydraulics "5th function"
Move the sideshift to the left
Move sideshift to the right
Adjust fork arms: open
Adjust fork arms: close
Rotate to the left
Rotate to the right
NOTE
The pictograms are affixed according to the
attachment fitted at the factory. If an attach-
ment with different functions is fitted, the au-
thorised service centre must check that the
pictograms bear the correct representation
and must change them if necessary.
Operation
4
Attachments
320 56368011531 EN - 01/2021 - 05
