Picto-
gram
Attachment function
Rotate to the left
Rotate to the right
Tip shovel over
Tip shovel back
NOTE
The pictograms are affixed according to the
attachment fitted at the factory. If an attach-
ment with different functions is fitted, the au-
thorised service centre must check that the
pictograms bear the correct representation
and must change them if necessary.

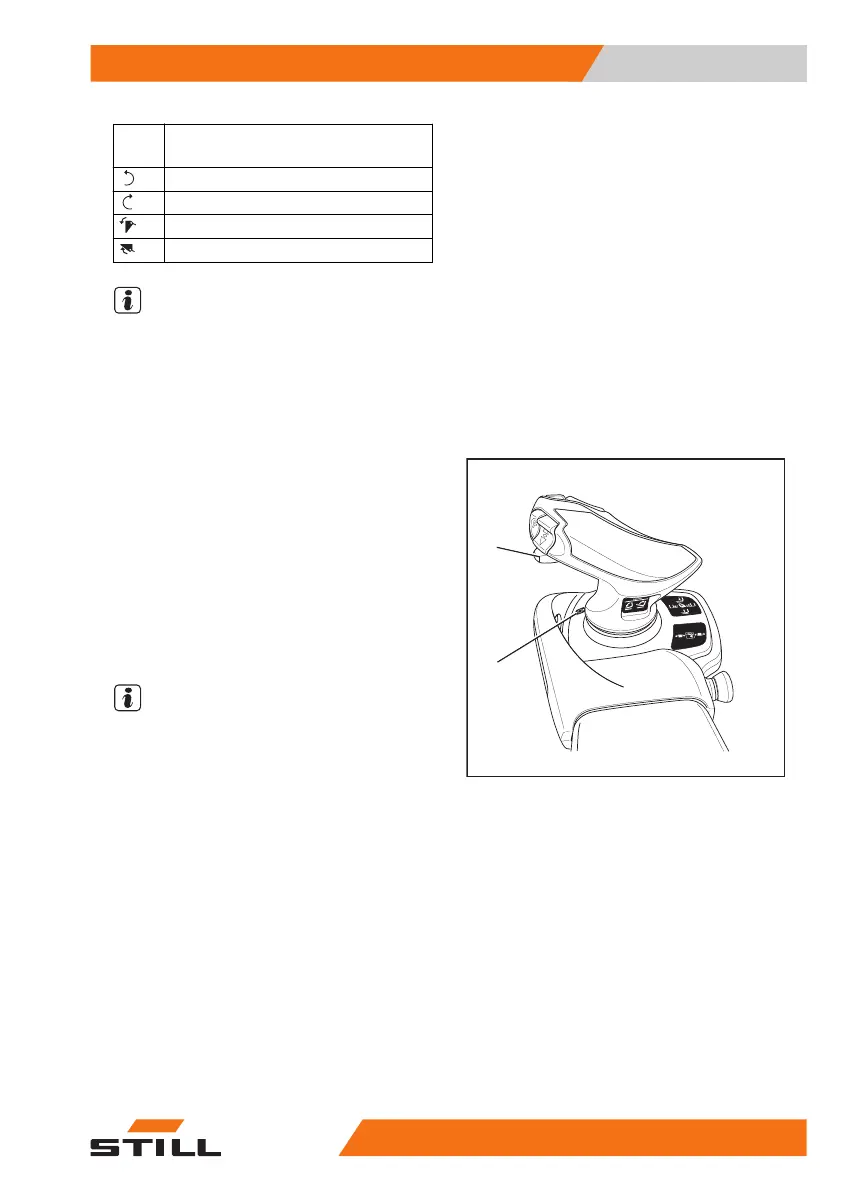

Clamp locking mechanism
– To release the clamp locking mechanism,
push the slider (1) to the left.
The clamp locking mechanism is released.
The LED for the "clamp release" (2) lights up
and remains lit while the clamp locking mech-
anism is released.
– To open the clamp, push the slider (1) to
the left again.
NOTE
The hydraulic function for opening the clamp
is available for one second after the clamp
locking mechanism is released. After one sec-
ond, the clamp locking mechanism is automat-
ically reactivated.
It is not necessary to release the clamp lock-
ing mechanism in order to close the clamp.
– To close the clamp, push the slider (1) to
the right again.
+
F
1
2
Operation
4
Attachments
32956368011531 EN - 01/2021 - 05
