Category 2 version
NOTE
The category 2 and category 3 versions of the
trucks have different battery male connectors.
The specific features of the category 2 version
are described here. The battery male connec-
tors on the category 2 version are non-inter-
changeable.
●
The "positive" battery male connector (red
marking) is routed through two grooves.
●
The "negative" battery male connector (blue
marking) is routed through one groove.

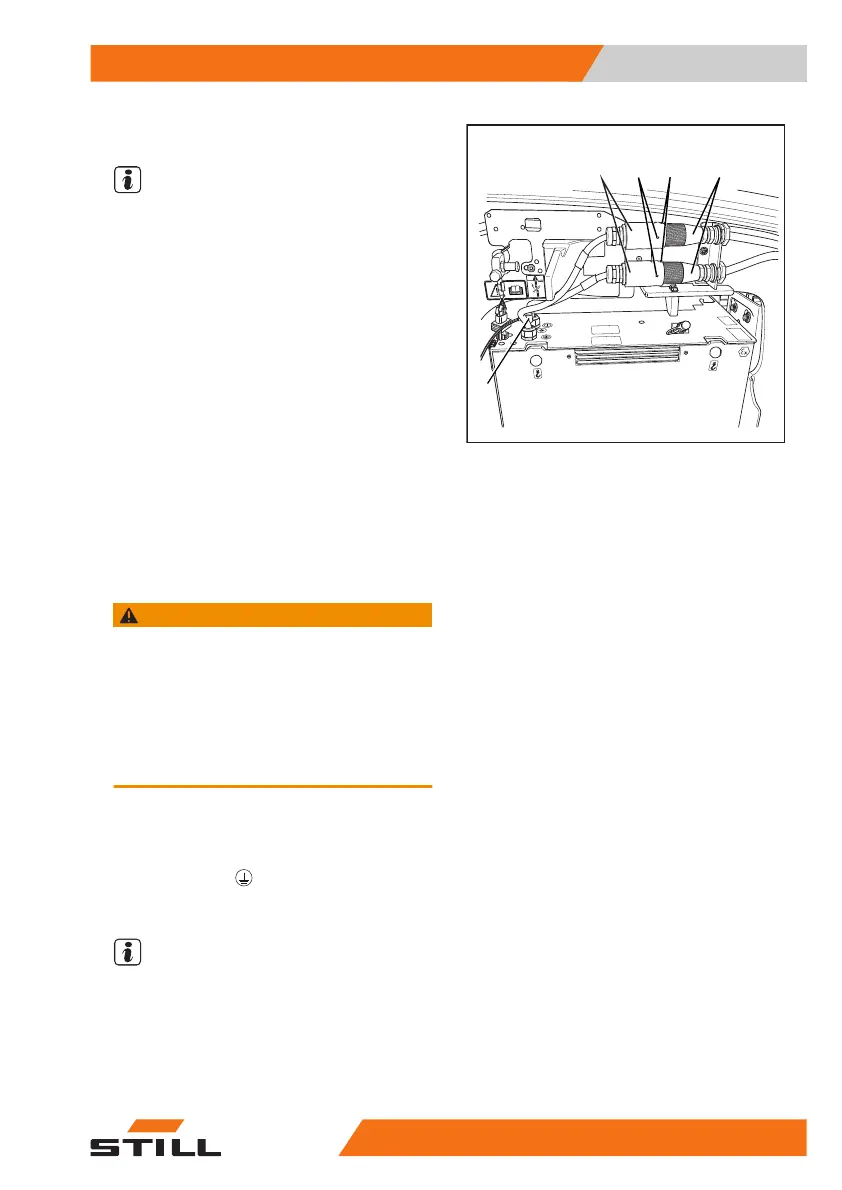

– Open the battery door.
– Loosen the screws (2).
– Connect the battery male connectors (2) by
twisting them into the grooves (3) in the
sockets (4).
– Tighten the screws (1) to secure the battery
male connectors in place.
WARNING
Risk of accident!
The battery male connectors are only protected
against disconnection when the screws (2) are tight-
ened.
Otherwise, the battery male connectors may work
loose during operation. If this happens, the power
supply of the truck is interrupted and it is no longer
possible to operate the truck.
– If necessary, connect the potential equalisa-
tion (5).
The potential equalisation point is marked with
decal information
.
– Close the battery door.
NOTE
The truck is not approved for use in potentially
explosive areas if the battery male connectors
are unsecured.
Category 3 version
– Open the battery door.
6219_901-020
123 4
5
Operation
4
Connecting and disconnecting the battery male connector
38956368011531 EN - 01/2021 - 05
