– Disconnect the battery male connector.
– Disconnect the potential equalisation con-
nection if necessary.
WARNING
Risk of crushing or shearing!
No one must stand directly next to the
battery or between the battery and the
truck when removing and inserting the
battery.
CAUTION
Risk of damage!
– Position the battery cable on the bat-
tery in such a way that the cable can-
not be crushed either when removing
or inserting the battery or when clos-
ing the battery door.

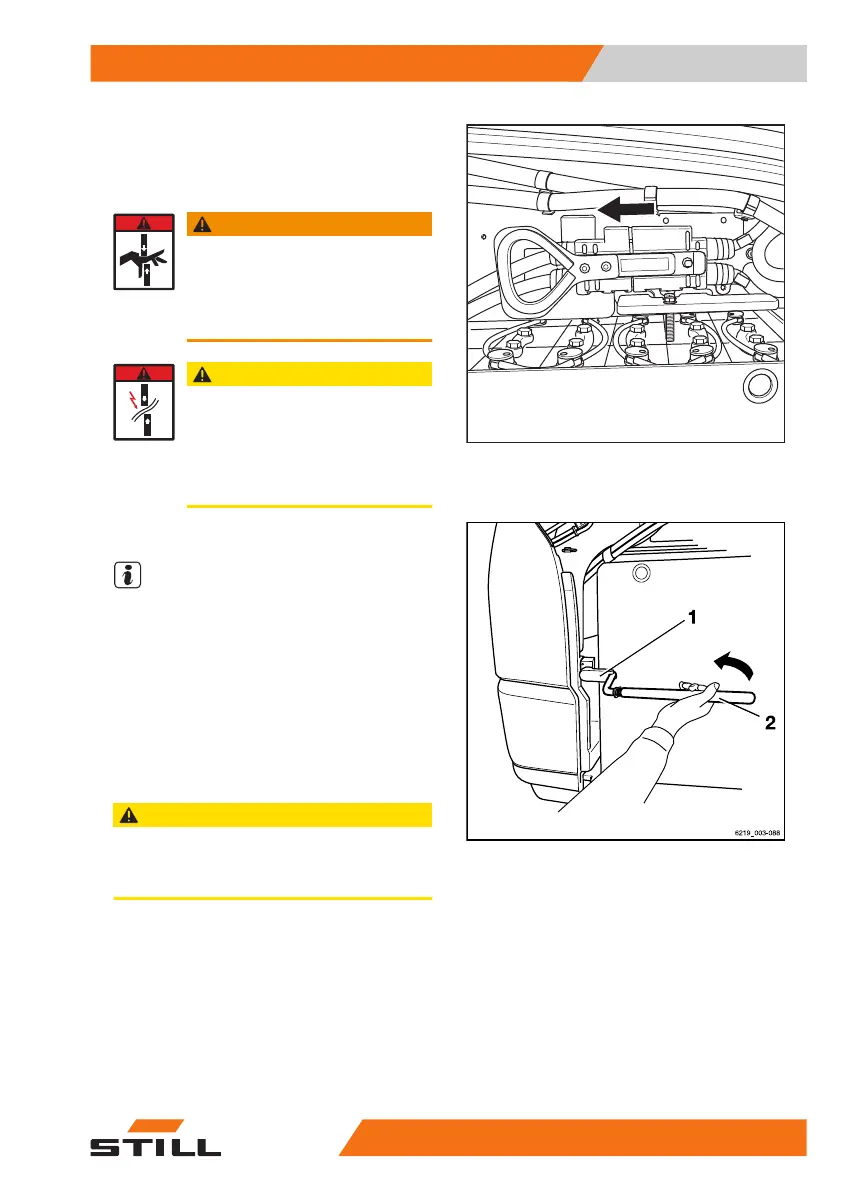

– Open the battery locks (1).
NOTE
If the battery locks cannot be opened by hand,
the coupling pin (2) from the counterweight
can be used as a lever extension.
– Carefully drive the truck under the battery.
– Carefully lift the battery until it maintains a
sufficient distance from the seating and
from the chassis above.
– Position the fork arms horizontally.
CAUTION
Damage to the battery possible!
– If the battery knocks against the chassis above,
lower the battery immediately.
– Slowly remove the battery from the battery
compartment.
6219_901-009
Operation
4
Replacing and transporting the battery
41356368011531 EN - 01/2021 - 05
