Operating & Maintaining the Objet1000 Plus 3D Printer
6–40 DOC-06810 Rev. A
12. WhenthePatternTestisprinted,carefullyinspectit,usingtheMissing
NozzlesRulertoseeiftherearemissinglines.

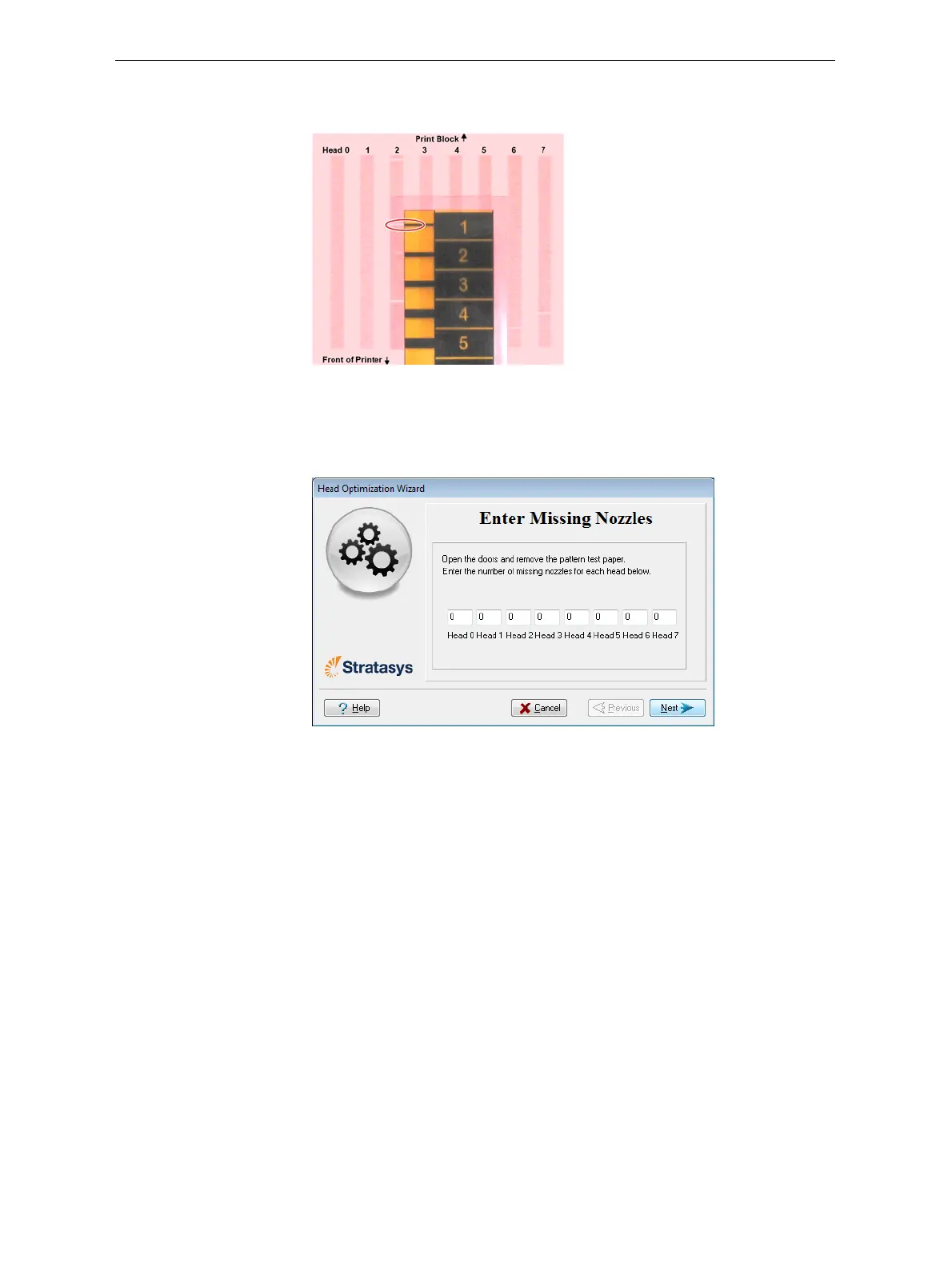

Figure 6-55: Inspecting the Pattern Test
Eachmissinglinerepresentsafaultynozzleintheprinthead.
13. Inthefollowingwizardscreen,enterthenumberofmissingnozzles
foreachprintheadandclick
Next.
Figure 6-56: Enter Missing Nozzles screen
