DOC-06810 Rev. A 6–67
Objet1000 Plus User Guide
11. Replacethelampcoverbyinsertingitintotheslotonthebottomofthe
housing,andtightenthesecuringscrewontop.

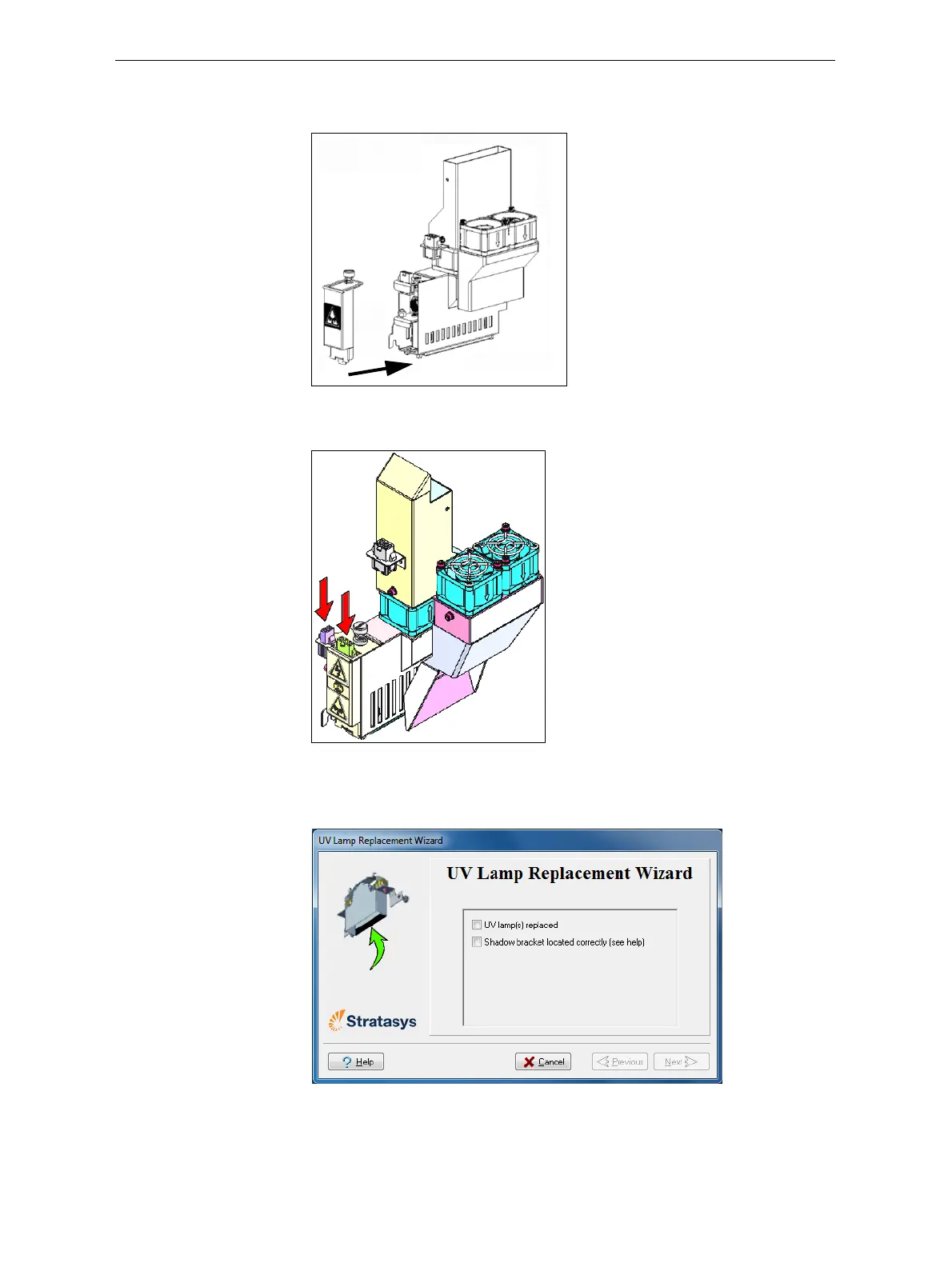

Figure 6-108: Replacing the lamp cover
12. Reconnectthepowerandheatfuseconnectors.
Figure 6-109: Connecting the UV lamp
13. Inthewizardscreen,confirmthatyouhavereplacedthelamp(s)and
thattheblackstripisattached,thenclick
Next.
Figure 6-110: UV-installation confirmation screen
