Iftheobjectisoveracertainsize,theLoadingPlacedElementsdialogbox
appears.


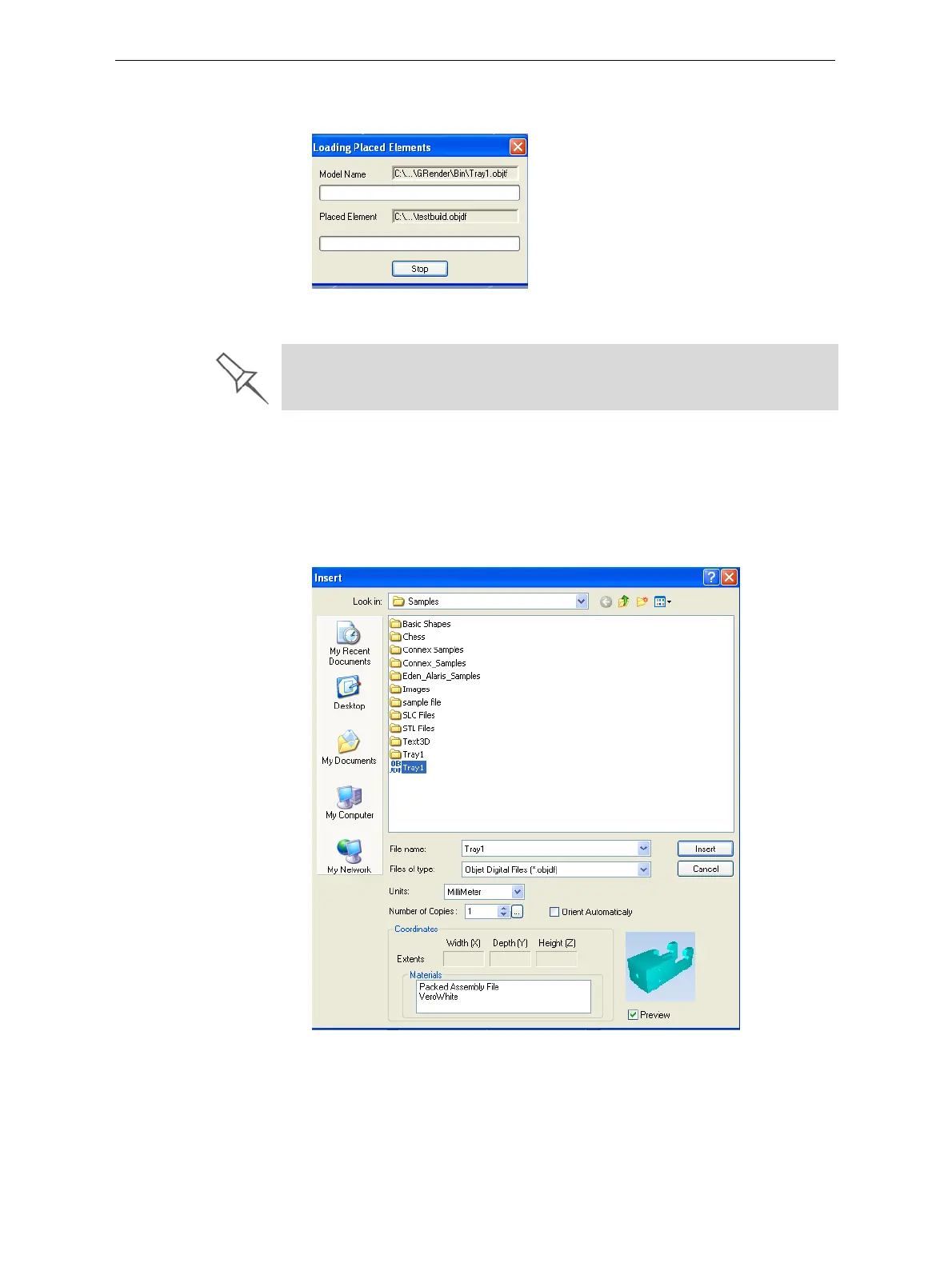

Figure 5-13: Loading Placed Elements dialog box
OpeningobjdfFiles
Beforeplacingobjdffilesonthebuildtray,ObjetStudiomustextractthe
componentstlfilestogetherwithinformationabouttheirrelativeposition
andmodelmaterials.Todothis,ObjetStudiocreatesafolderwiththesame
nameastheobjdffile,inthesamelocation.
Figure 5-14: Insert dialog box (objdf file)
You can speed up the opening of large files by changing the Large Files
settings—see “Loading Large Files” on page 43).
