Chapter 7 - Working With Measurements Stress Echo

Terason t3000 / Echo Ultrasound System User Guide 209

Features of the Stress Echo Scanning Window

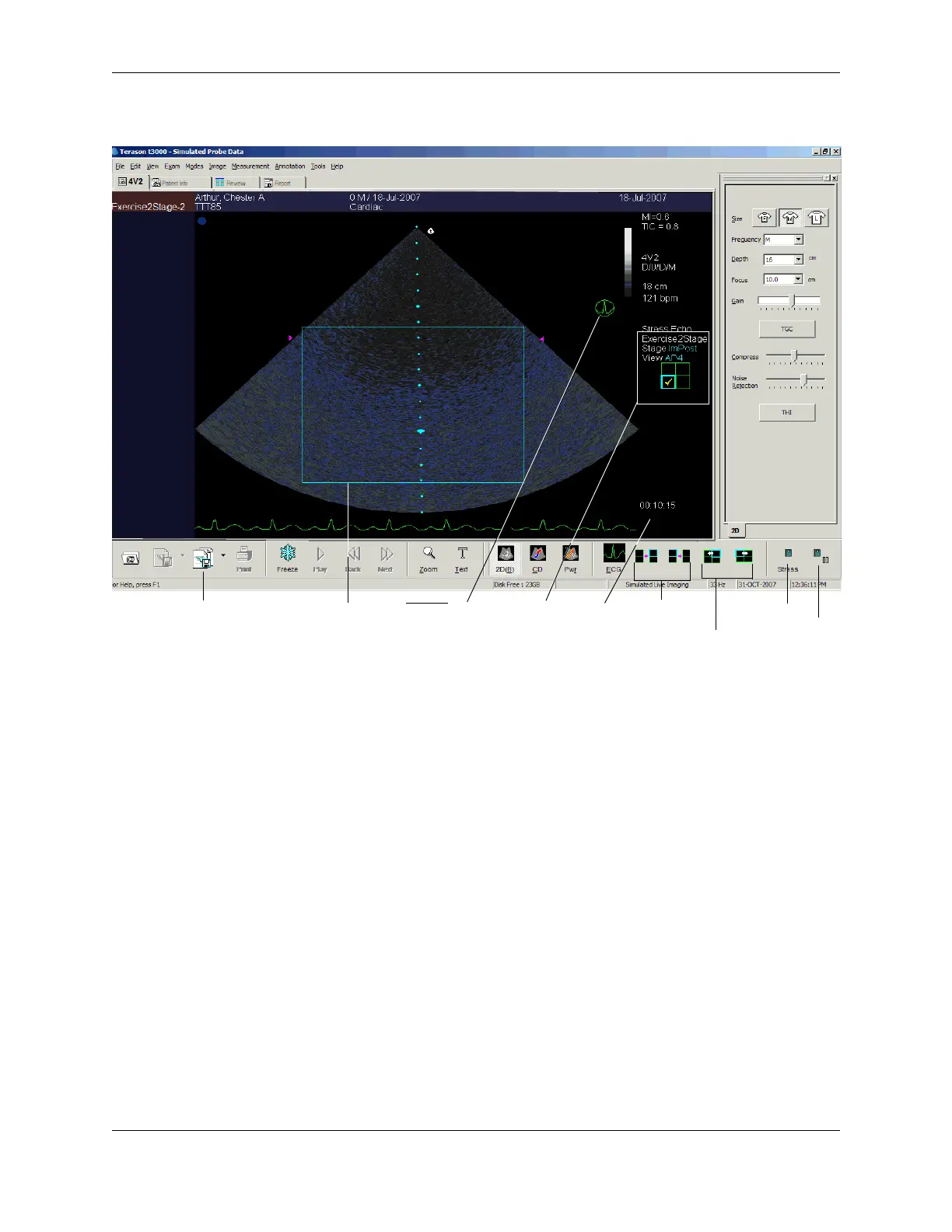

Stress Echo Scanning Window

ECG active

indicator

Timer

indicator

Stage

selector

View selector

Pause/resume

study button

Acquire

button

Stress study

information

ROI rectangle

Stress Button
