Chapter 11 - Using System Tools Specifying Optional Settings
Terason t3000 / Echo Ultrasound System User Guide 248
Wide Sector Width vs. Narrow Sector Width
If you compare the scale, you can see that the scales are different. The Terason software
expanded the narrow sector image to fill the available space.
To retain the same scale when you switch sector widths, you can set the default to scale the
narrow image. You can then see the affect of switching sector widths, as shown in the
following figure.

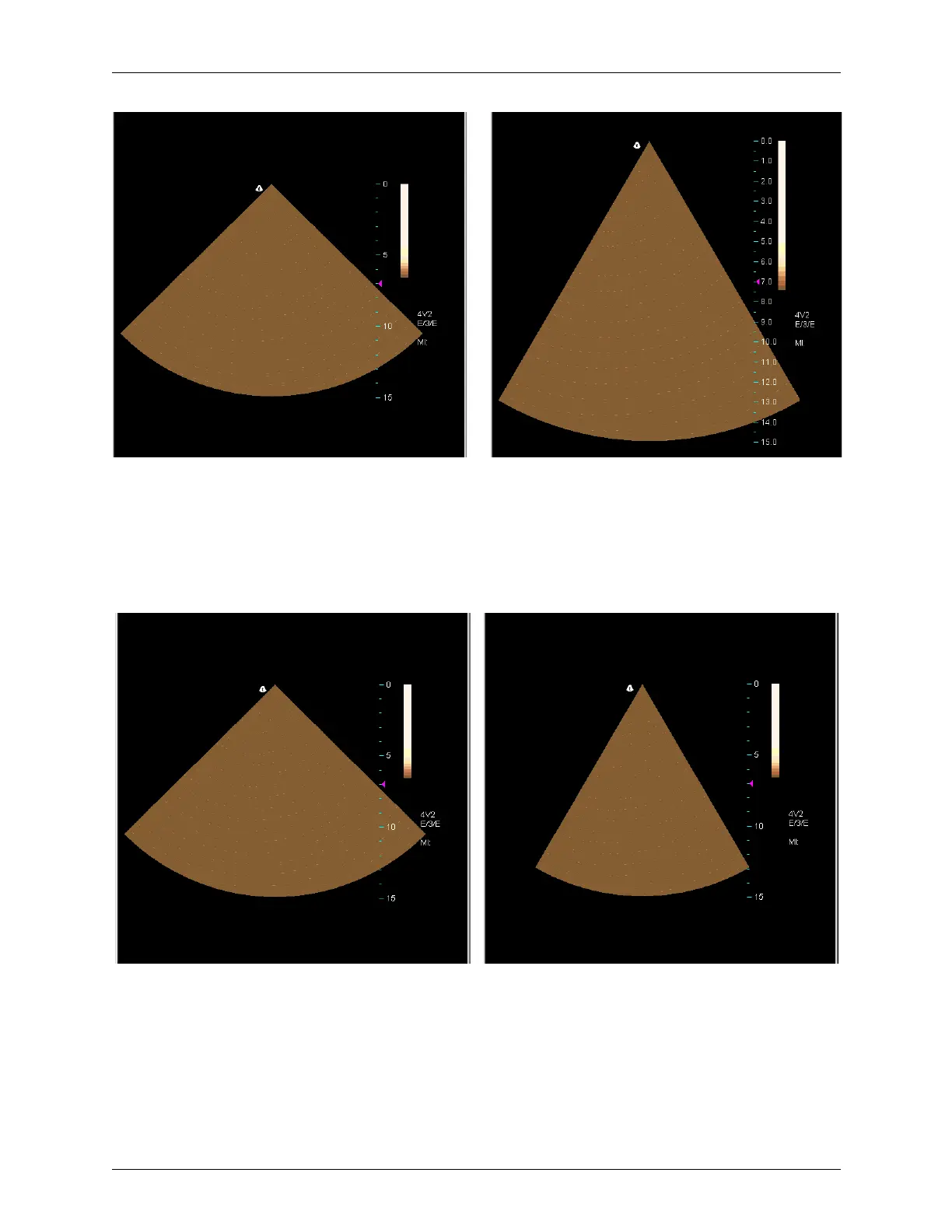

Wide Sector vs. Scaled Narrow Sector
The scales are the same, and you can see that the narrow width really is narrower than the
wide width. However, the window contains unused space that could be used to show
image data.
