Textron Jacobsen AR-5 Technical/Repair Manual

STEERING
4181383 First Edition 7-21
7
Disassembly, Inspection, and Assembly

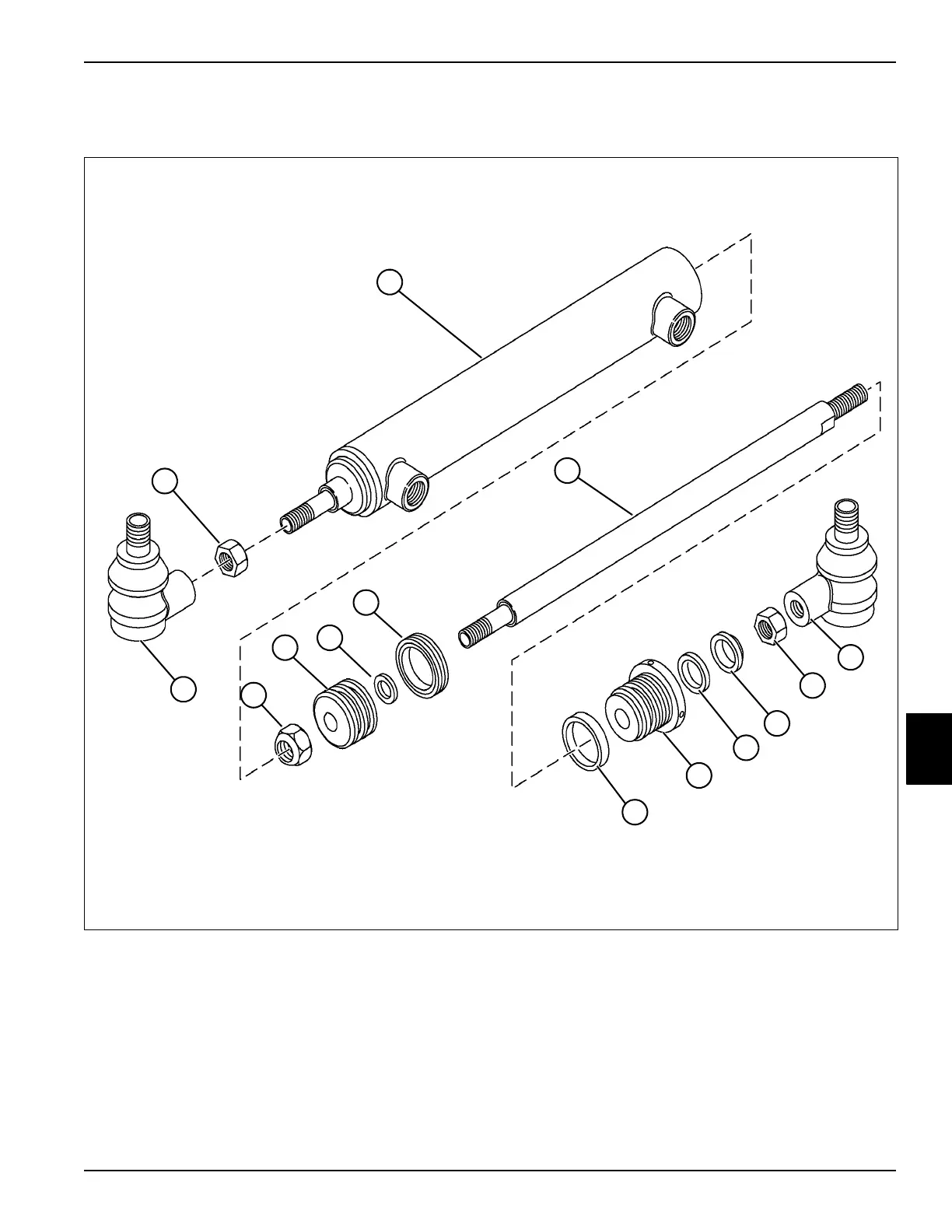

See Figure 7-23.
Figure 7-23
1. Use a spanner wrench to remove rod guide (10) from
barrel (1).
2. Pull rod assembly (8) out of barrel (1).
3. Remove ball joint (14) and nut (13) from rod (8).
4. Remove nut (4), piston (5), O-ring (6), and piston ring
(7) from rod.
1 Barrel 5 Pistion 9 Seal Ring 12 Rod Wiper
2 Nut 6 O-Ring 10 Rod Guide 13 Nut
3 Ball Joint, Left 7 Piston Ring 11 O-Ring 14 Ball Joint, Right
4Nut 8Rod
TN1471
9
10
11
13
8
7
6
5
4
1
12
14
3
2
