6 Mapping and Guidance
100 FM-750 Display User Guide
3. Select the pattern that you want to use:

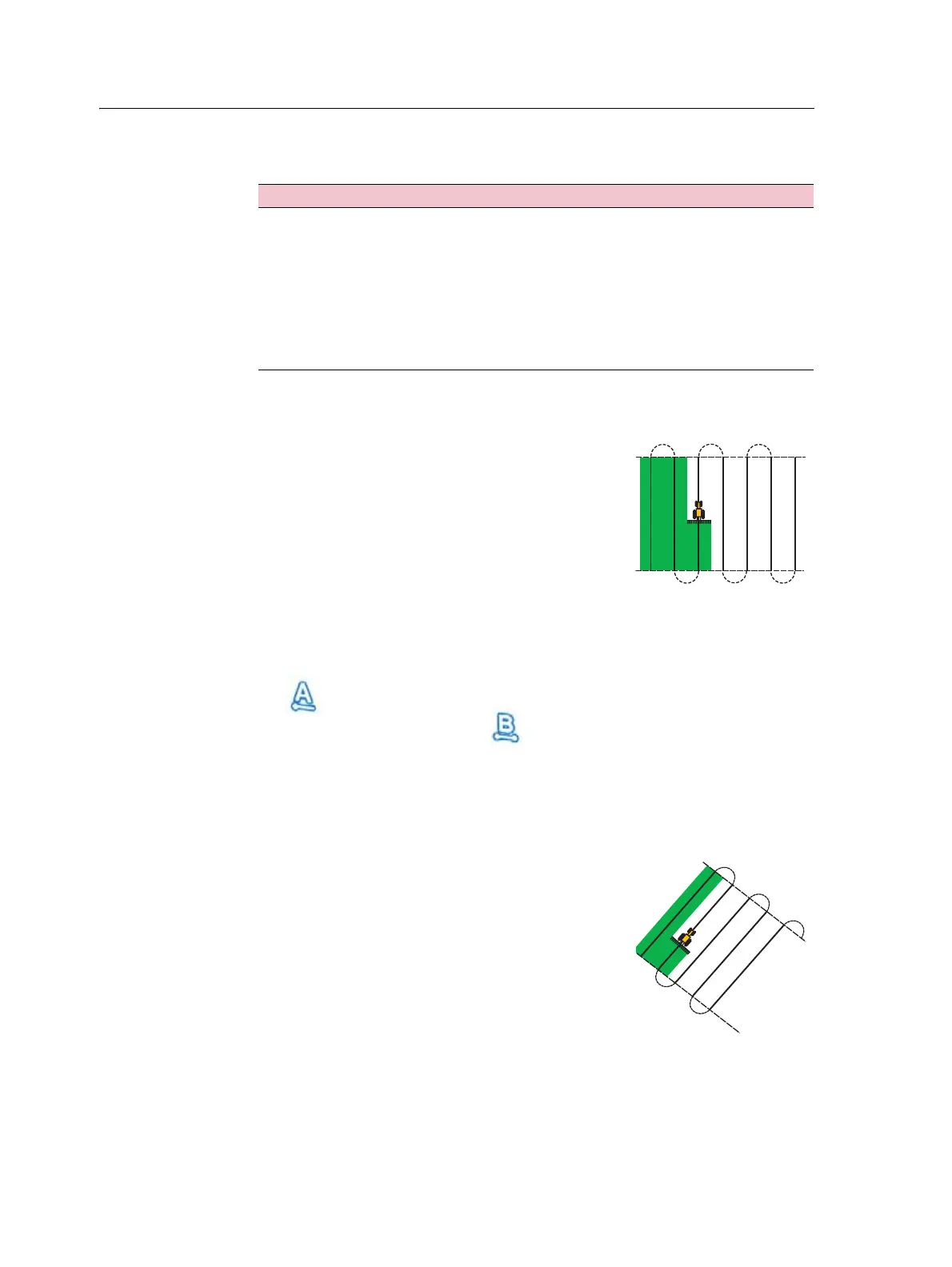

Straight AB
Use a straight AB line when you do not need to define
headlands and you want to drive the field in parallel
straight lines.
Note – When the vehicle is on a guidance line, the line
extends 1 km (0.6 miles) before point A and 1 km beyond
point B. This makes it easier to see where the next swath is
and to get online after a turn.
Mapping an AB line
1. Drive to the start point of the master line.
2. Tap and then drive to the end of the line.
3. When the icon is highlighted, tap . The master AB line appears.
4. Turn left or right for the next swath. As you move toward the next swath, it
appears on the screen and turns orange to show that it is selected.
A+
An A+ line is a straight line, defined by a single A point on
the line and the heading of the line. When you create an
A+ line, you must enter a heading in the A+ Heading
screen. By default, the A+ heading is the same as the
previous AB line.
An A+ line is useful when you need guidance exactly
parallel to the last AB line, for example when:
• driving adjacent fields
• mapping the AB line on a road down the side of the field
• skipping an access road in a field
The A+ line extends 1 km (0.6 miles) before and after the A point.
Pattern To learn more, see ...
Straight AB page 100
A+ line page 100
Identical curve page 101
Adaptive curve page 101
Pivot page 103
Headland page 103
FreeForm page 105
