FM-750 Display User Guide 103
Mapping and Guidance 6
5. Steer the vehicle so that the lit LEDs are centered on the lightbar as you drive
forward along the swath.
Headland
The headland pattern enables you to define the boundary (headland) of the area, as
well as the guidance lines contained within it. Use the headland pattern to allow room
to turn.

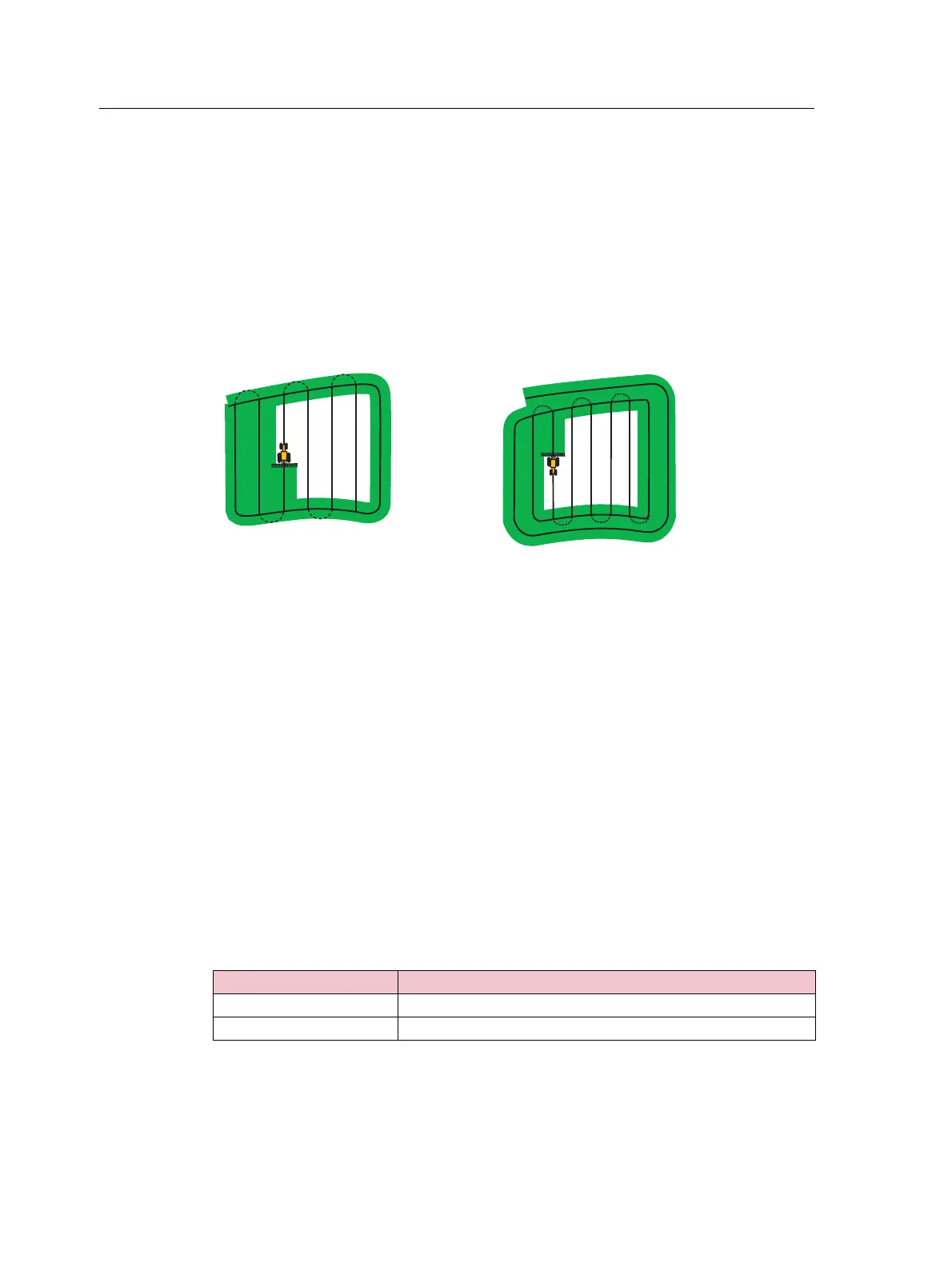

The following diagrams show the two headland patterns:
When you start to define the headland, you define the internal guidance line as you
drive around the headland, and then you complete the headland.
You can change two settings for the headland pattern:
• The number of circuits.
• The internal pattern.
Number of circuits
When you create a headland, you need to specify the total number of circuits
(including the master headland). This defines how wide the headland is.
Note – No matter how many circuits you create, only define the outside headland. The
inner headlands are copied from that original circuit.
Internal pattern
The internal pattern is the pattern of the guidance lines inside the headland. Choose
from the following:
Choose this pattern ... To create ...
Straight AB Standard parallel swaths inside a headland
A+ Parallel swaths at a pre-defined heading
B
A
Single
B
A
Multiple
