FM-750 Display User Guide 77
Implement Application Controller 5
Operation

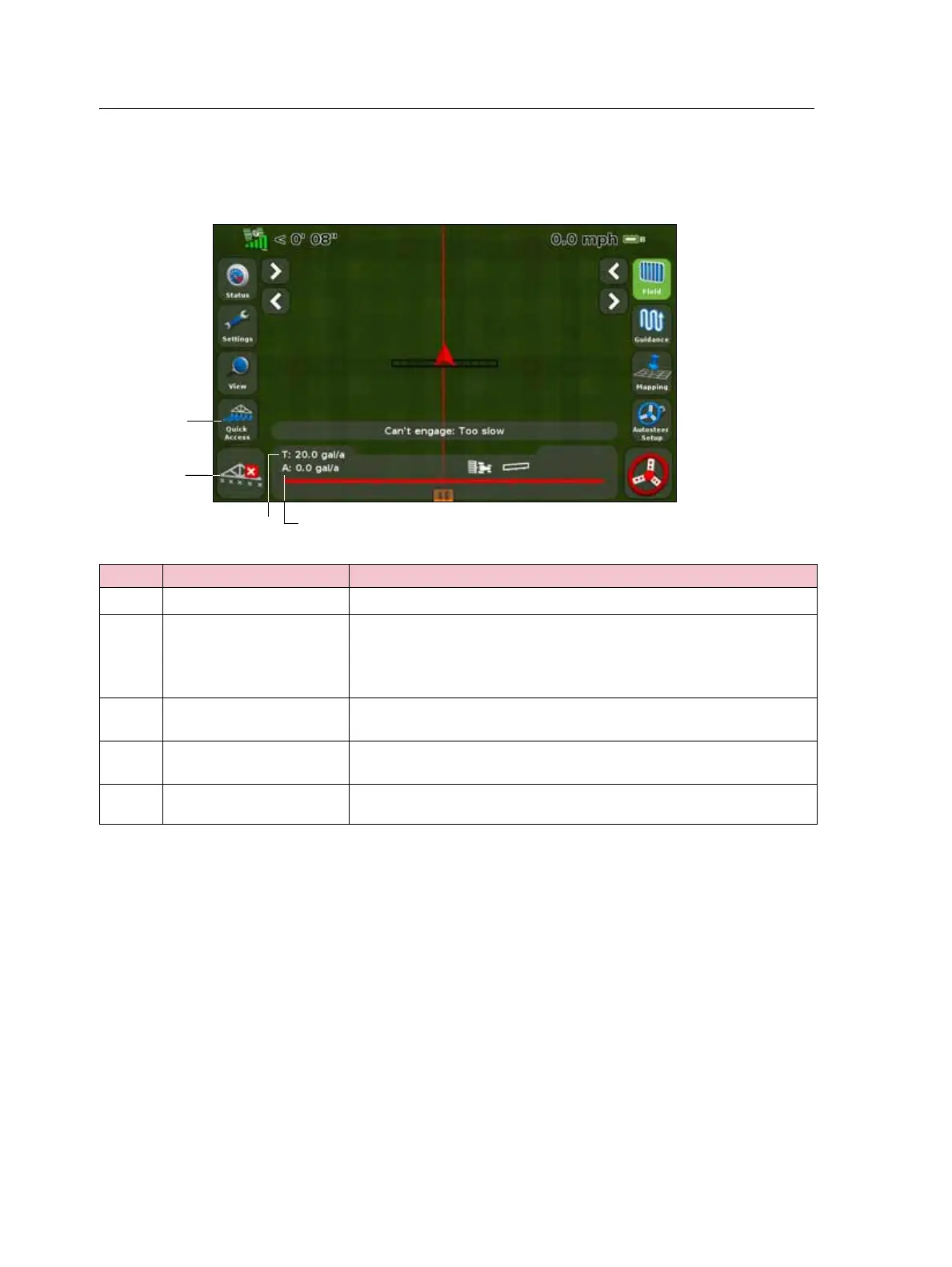

When you connect the Raven controller to the FM-750 display, the following items
appear on the guidance screen:
Target Rate
To manually enter a rate to send to the controller:
1. In the Settings screen, tap
Implement and then Advanced:
2. Tap
Target Rate and then adjust the rate that is sent to the controller.
Automatic Boom Switching
The FM-750 display will not do automatic boom switching for the Raven controller.
Note – To ensure that areas outside the headland, in exclusion zones, or previously
sprayed areas are not sprayed, you will need to manually turn off the Raven controller
master switch.
Item Description Notes
c
Quick Access icon See, Quick Access icon, page 35.
d Boom section status
indicators
Shows the current state of each boom section:
• Green: Enabled and spraying
• Gray: Enabled but not currently spraying
• Red: The section is off (the switch is off)
e Target rate If a prescription is loaded, P displays to indicate that the prescription
rate is being used rather than the target rate.
f Actual rate The actual application rate. This is the amount of product that is
currently being applied.
Application indicator The wheel spins when the Raven master switch is on and the booms are
on.
