FM-750 Display User Guide 75
Implement Application Controller 5
Raven
When using the Raven SCS 400 and 600 series controller with the FM-750 display, note
the following:
• The FM-750 display cannot control the status of the Raven controller master or
boom switches. This means that the operator must remain in complete control
of the sprayer at all times.
• The FM-750 display cannot automatically turn off the sprayer when going
outside headlands, across exclusion zones, or previously sprayed areas.
• The sprayer may not always switch off completely when the FM-750 sends a
zero rate. This means the operator may need to manually turn off the master
switch to ensure that spray is not applied.
Note – The only time the FM-750 display sends a zero rate is when the sprayer is outside a
prescription boundary and the "Rate outside polygon" option is zero.
• The operator must ensure that the master switch is off when there is no field
open so that no spray is accidentally applied to areas that shouldn't be sprayed,
for example, roads, paths, and neighboring fields.
Setup

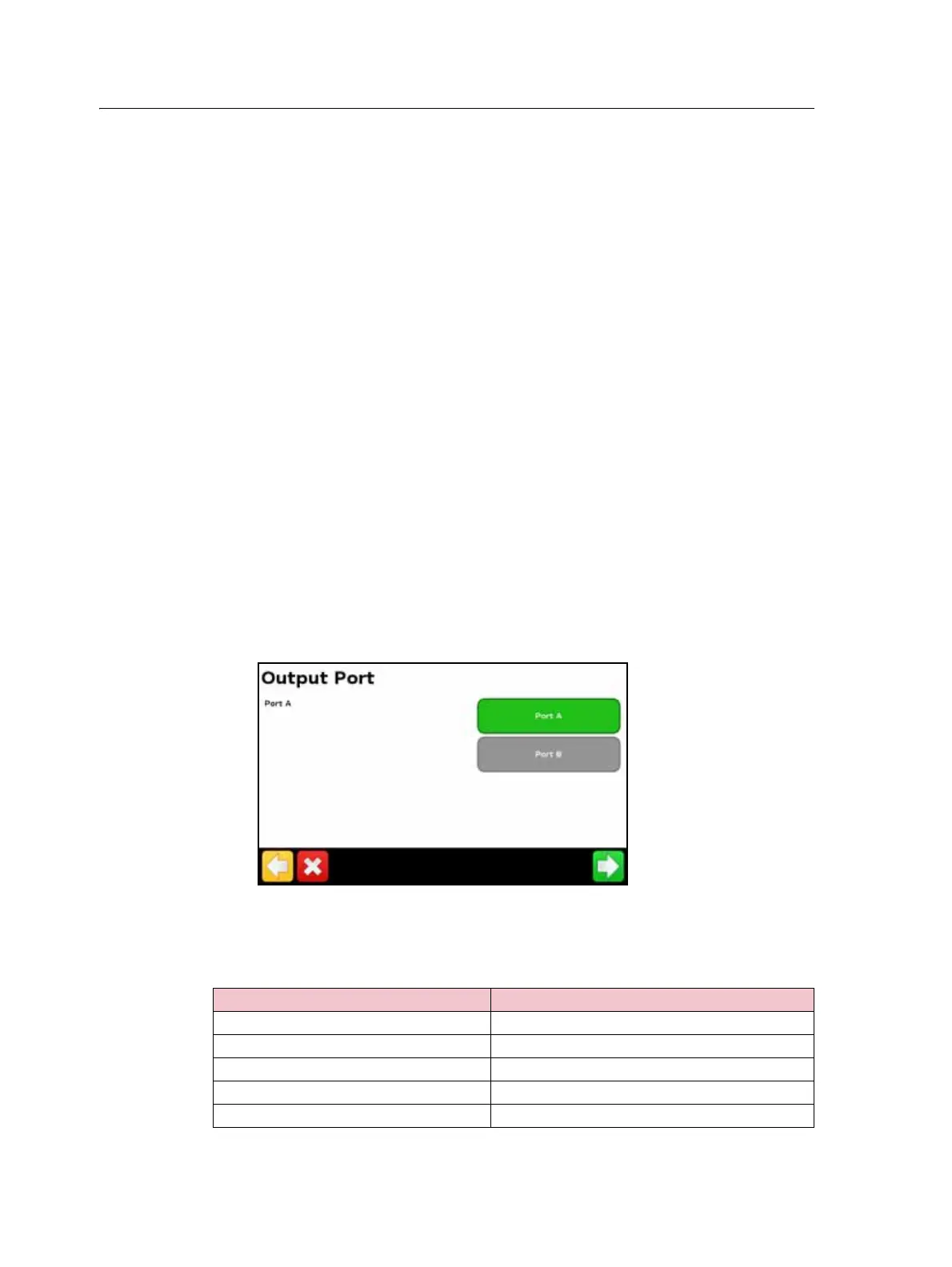

1. Once you select Raven as your controller, the following screen appears on the
display:
Note – Do not configure the display to output NMEA messages on the same port that your
controller is connected to.
2. On the Raven controller, configure the following Data Menu settings:
Item Setting
Baud or Baud Rate 9600
GPS Inac
DLOG or Data Log On
TRIG or Data Log Trigger Value 1
UNITor Data Log Trigger Units sec
To Next Page
