FM-750 Display User Guide 81
Implement Application Controller 5
Operation

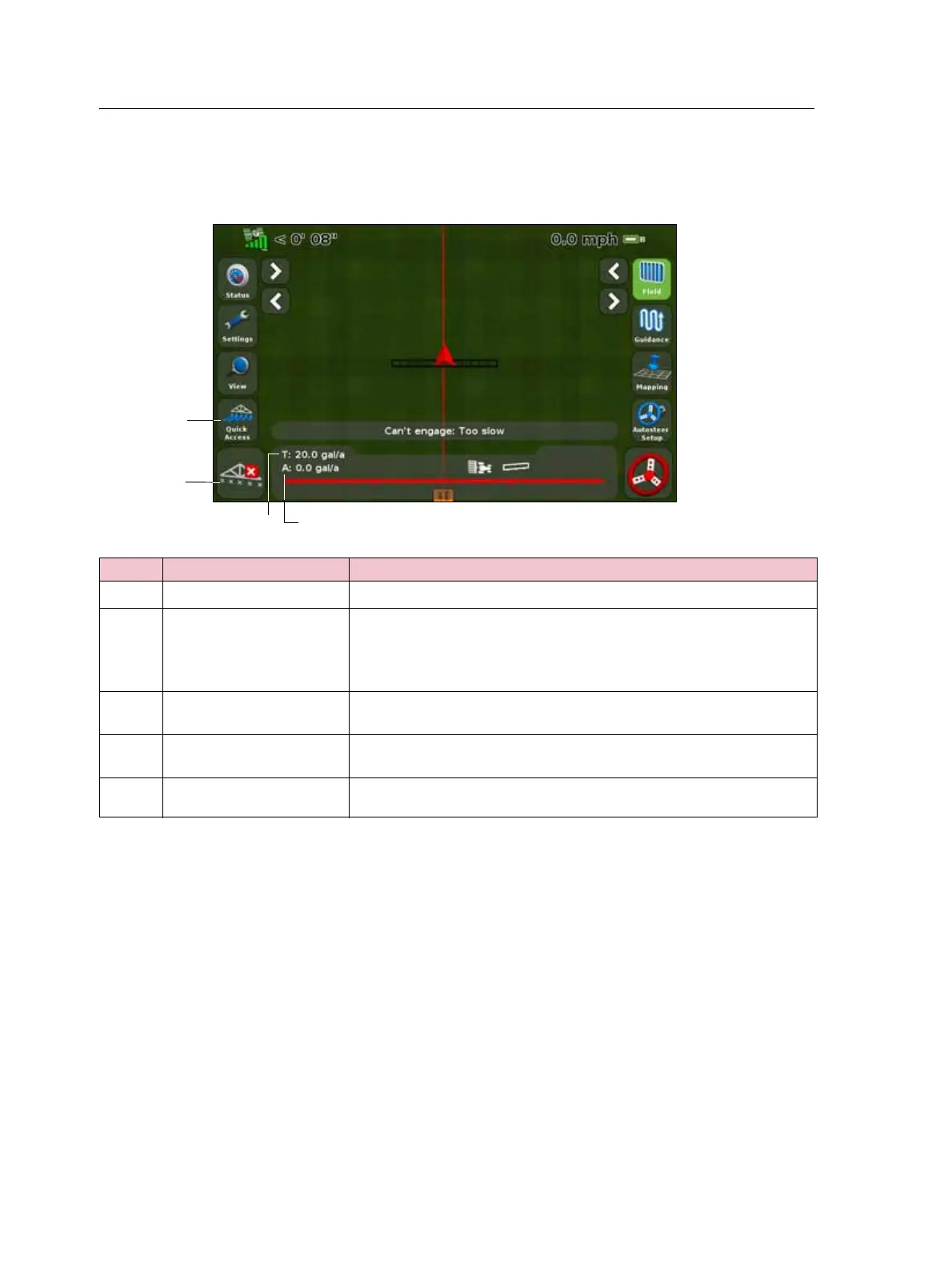

When you connect the Rawson controller to the display, the following items appear on
the FM-750 guidance screen:
Item Description Notes
c
Quick Access icon See, Quick Access icon, page 35.
d Boom section status
indicators
Shows the current state of each boom section:
• Green: Enabled and spraying
• Gray: Enabled but not currently spraying
• Red: The section is off (the switch is off)
e Target rate If a prescription is loaded, P displays to indicate that the prescription
rate is being used rather than the target rate.
f Actual rate The actual application rate. This is the amount of product that is
currently being applied.
Application indicator The wheel spins when the Rawson master switch is on and the lightbar
receives flow messages from the controller.
