Rate Snapping
Due to pump constraints, liquid flow is generally inconsistent. To control how these
inconsistencies appear on your display, turn rate snapping on or off.
Operation

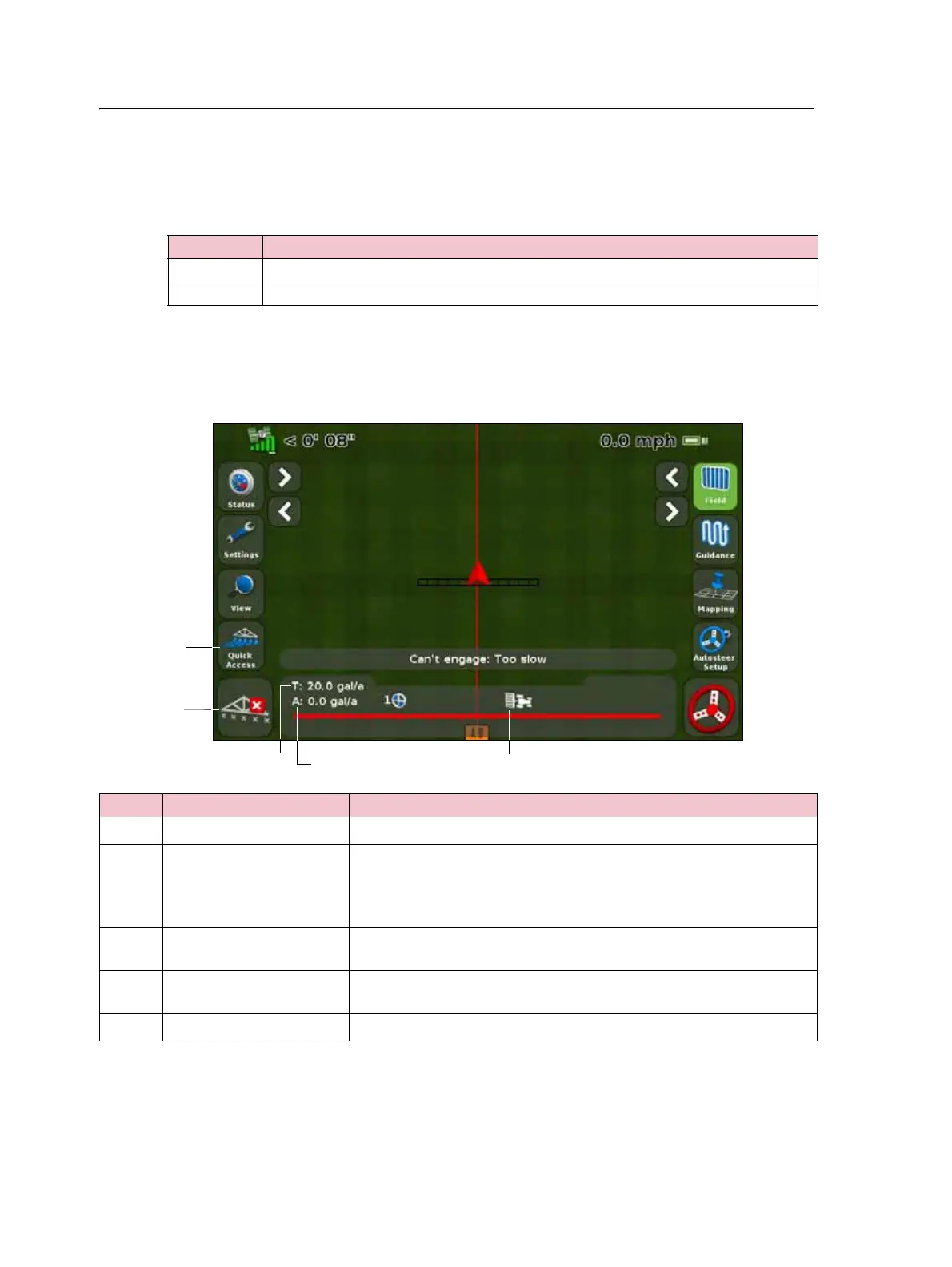

When you connect the HARDI 5500 controller to the FM-750 display, the following
items appear on the guidance screen:
Value ... Notes ...
On Matches the applied rate to the target rate when within 10% of the value.
Off Shows all fluctuations in the actual applied rate.
Item Description Notes
c
Quick Access icon See, Quick Access icon, page 35.
d Boom section status
indicators
Shows the current state of each boom section:
• Green: Enabled and spraying
• Gray: Enabled but not currently spraying
• Red: The section is off (the switch is off)
e Target rate If a prescription is loaded, P displays to indicate that the prescription
rate is being used rather than the target rate.
f Actual rate As the HARDI controller does not report the actual applied rate to the
display, this item always appears as N/A.
g
Section control Shows the current mode for the controller.
