Trimble FM-750 - Installing the display

FM-750 Display User Guide 17
Installing the Display and Antenna 2
Installing the display
Mount the FM-750 display in the vehicle cab. When you position the display, make sure
that:
• it is within the driver’s reach; the USB drive is easy to remove and replace.
• the touchscreen is easy to see but the display does not block the driver’s view.
• it does not interfere with the driver getting in or out of the cab, or any other
activities.

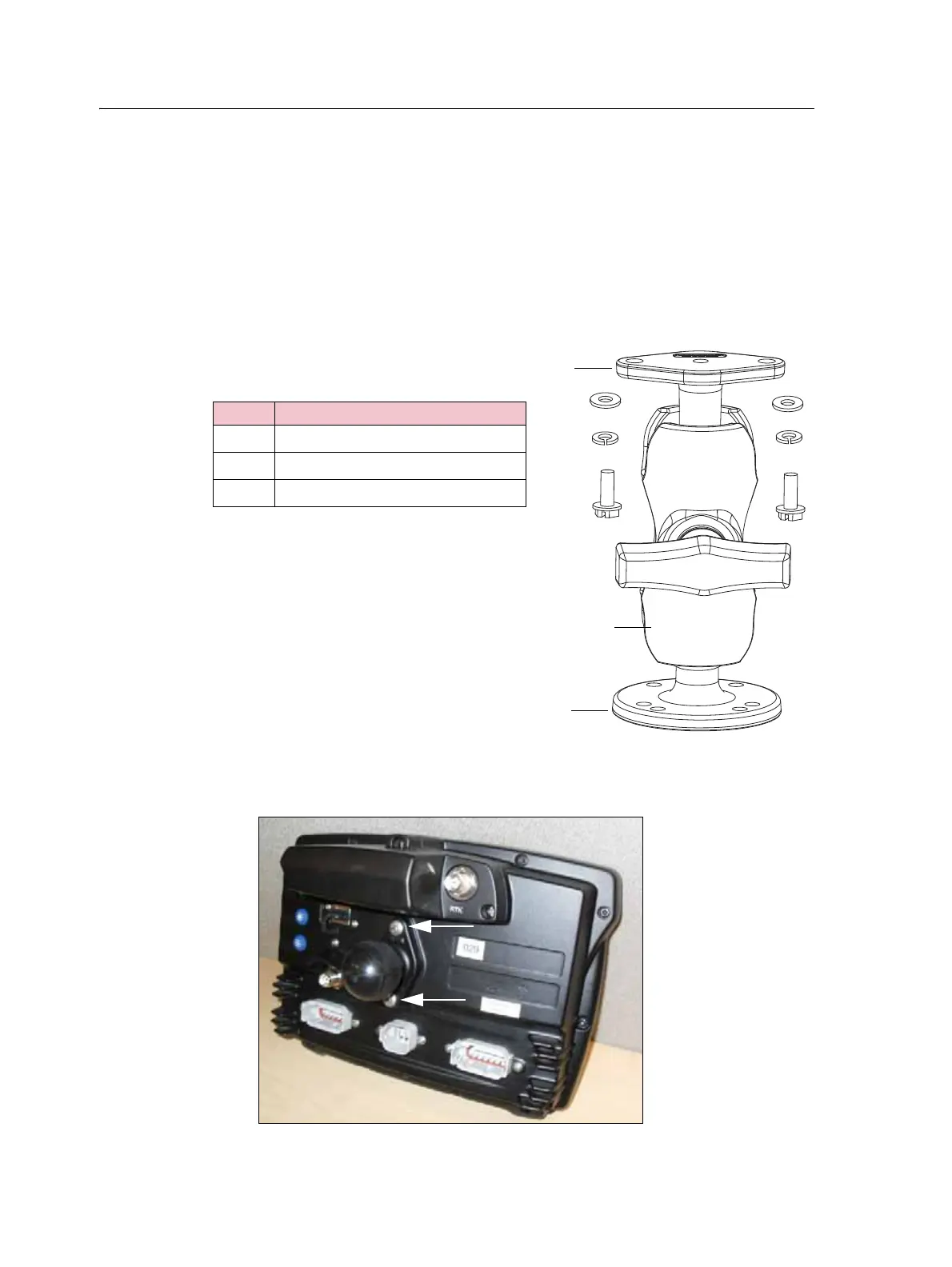

The image to the right shows the mounting
assembly for the display:
To install the display :
1. Use the supplied screws to firmly attach the diamond-shaped mounting plate to
the back of the display:
Item Description
c
Diamond-shaped mounting plate
d
RAM mount
e
Bar mount
c
d
e
