FM-750 Display User Guide 71
Implement Application Controller 5
HARDI 5500
Note – For the HARDI 5500 controller to work correctly with the FM-750 display, you must
install firmware version 3.16 or greater on the HARDI controller and connect a JOBCOM
control box.
Setup

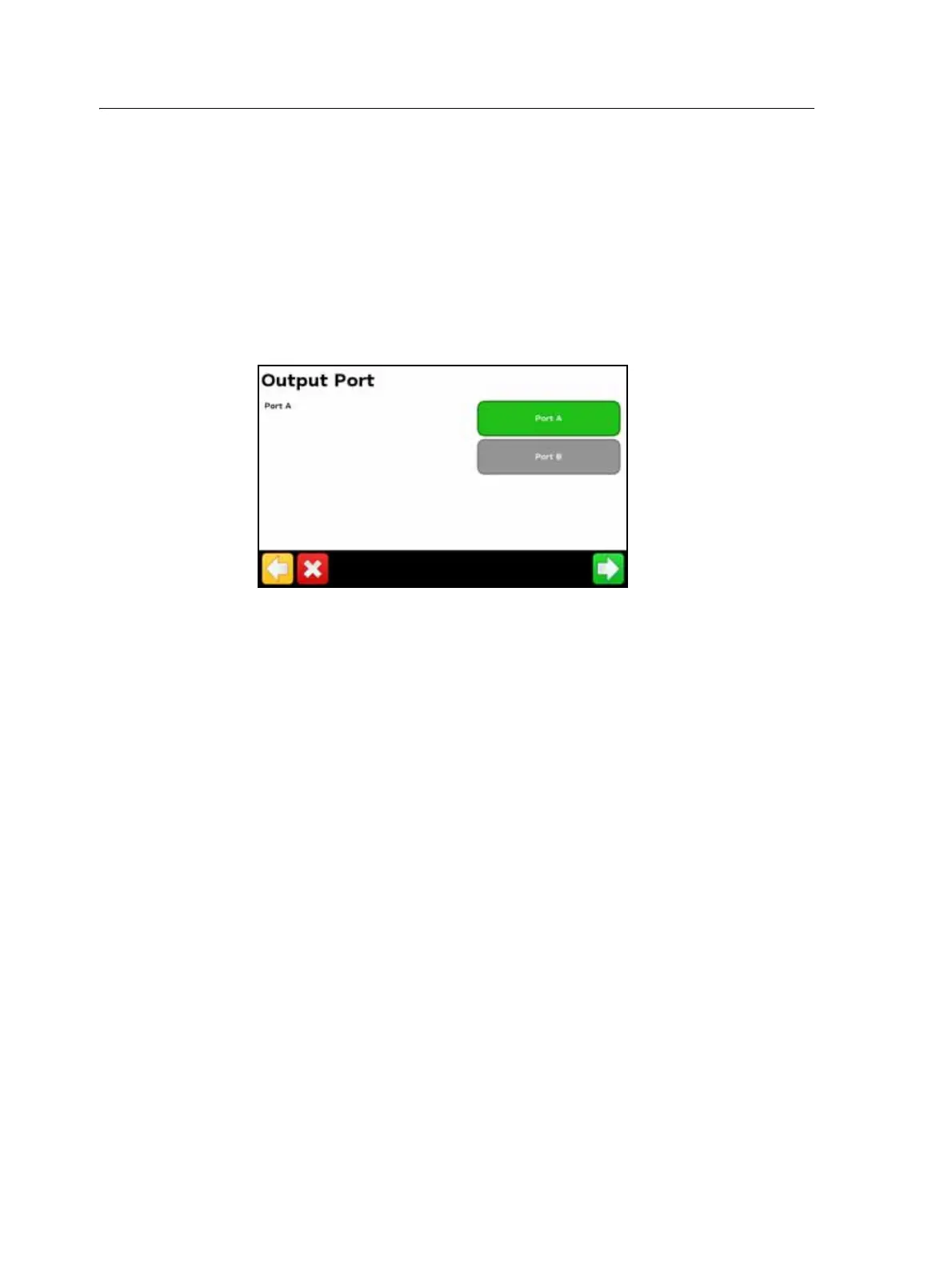

1. Once you select the HARDI 5500 as your controller, the following screen appears
on the display:
Note – Do not configure the display to output NMEA messages on the same port that your
controller is connected to.
2. On the HARDI 5500 controller, go to the Settings menu.
3. Change Remote to Enable.
For more information on setting up the HARDI 5500 controller, refer to the HARDI
instruction manual.
Advanced
Use the Advanced option in the Implement screen to configure the following:
• Boom Setup
• Swath Control
• Rate Control
• Off When Stopped
• Rate Snapping
Boom Setup
Note – The boom setup on the FM-750 display must match the setup on the HARDI
controller. If the boom setup differs between the display and the HARDI controller, a
warning message appears on the display.
