5-4 Expansion Modules
Input/Output Modules
Trio Motion Technology

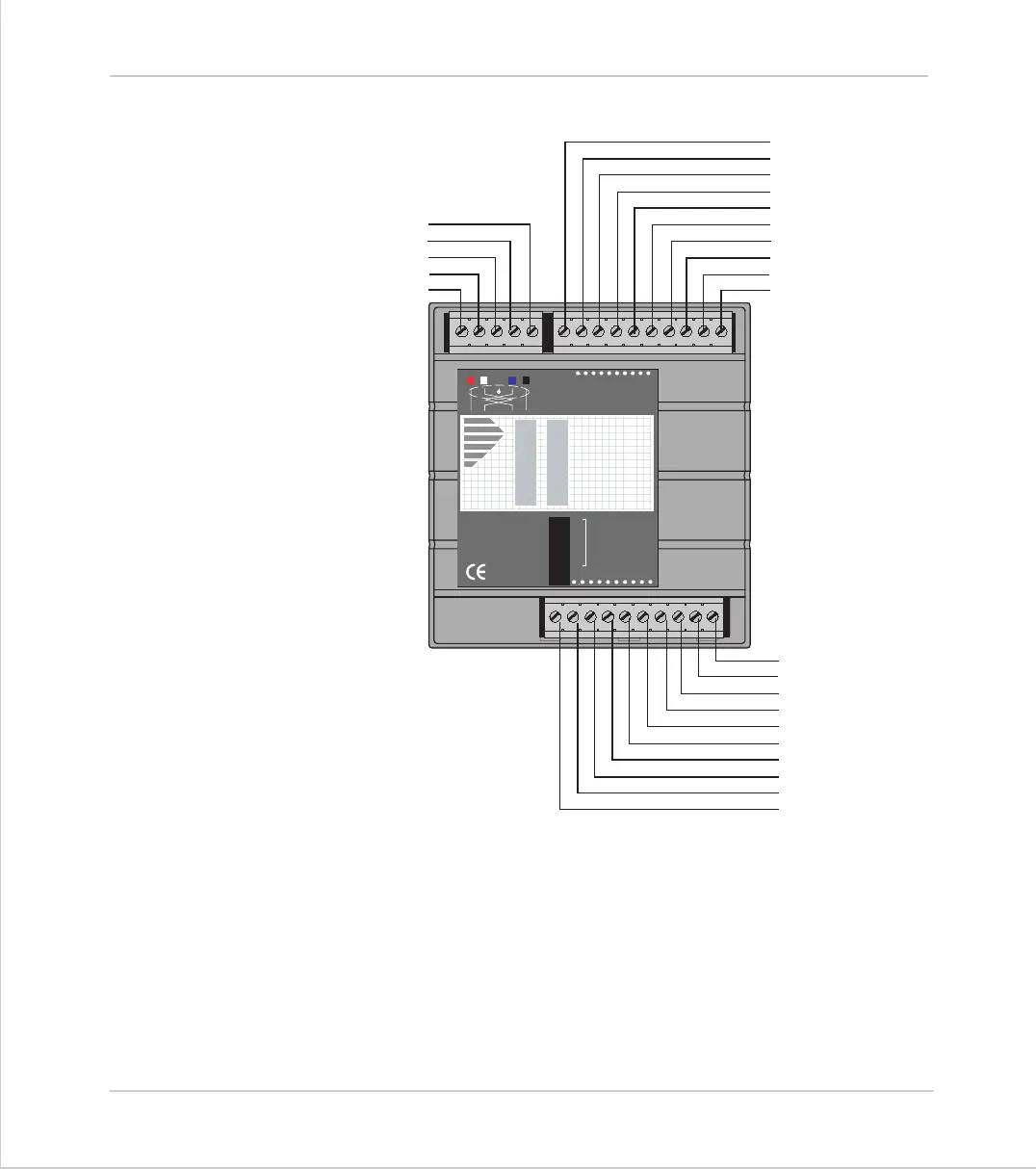

I/O Connections:
The CAN 16-I/O Module has 3 disconnect terminal connectors:
• DeviceNet physical format 5 way CAN connector
• Input/Output Bank 0 - 7 and power supply for bank 0 - 7 on 10 way
connector
• Input/Output Bank 8 - 15 and power supply for bank 8 - 15 on 10 way
connector.
P165
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
4
8
16
32
OFF
MS NS
PR
DR
10 11 12 13 14 15 24v Ov98
NODE
ADDRESS
CAN 16-I/O
Trio
7654321 00v 24v
0v for IO 0-7
24v for IO 0-7
IO 7
IO 6
IO 5
IO 4
IO 3
IO 2
IO 1
IO 0
0v for IO 8-15
24v for IO 8-15
IO 15
IO 14
IO 13
IO 12
IO 11
IO 10
IO 9
IO 8
(Black) V-
(Blue) CAN _L
SHIELD
(White) CAN_H
(Red) V+
