2-28 Hardware Overview
Motion Coordinator MC206
Trio Motion Technology
I/O Connector 3
Amplifier Enable (Watchdog) Relay Output
An internal relay contact is used to enable external amplifiers when the control-
ler has powered up correctly and the system and application software is ready.
The amplifier enable is a single pole relay with a set of normally open contacts.
The enable relay contact will be open circuit if there is no power on the control-
ler OR a following error exists on a servo axis OR the user program sets it open
with the WDOG=OFF command.
The amplifier enable relay may, for example, be incorporated within a hold-up
circuit or chain that must be intact before a 3-phase power input is made live.
Amplifier Enable Output
Note:
ALL STEPPER AND SERVO AMPLIFIERS MUST BE INHIBITED WHEN THE
AMPLIFIER ENABLE OUTPUT IS OPEN CIRCUIT

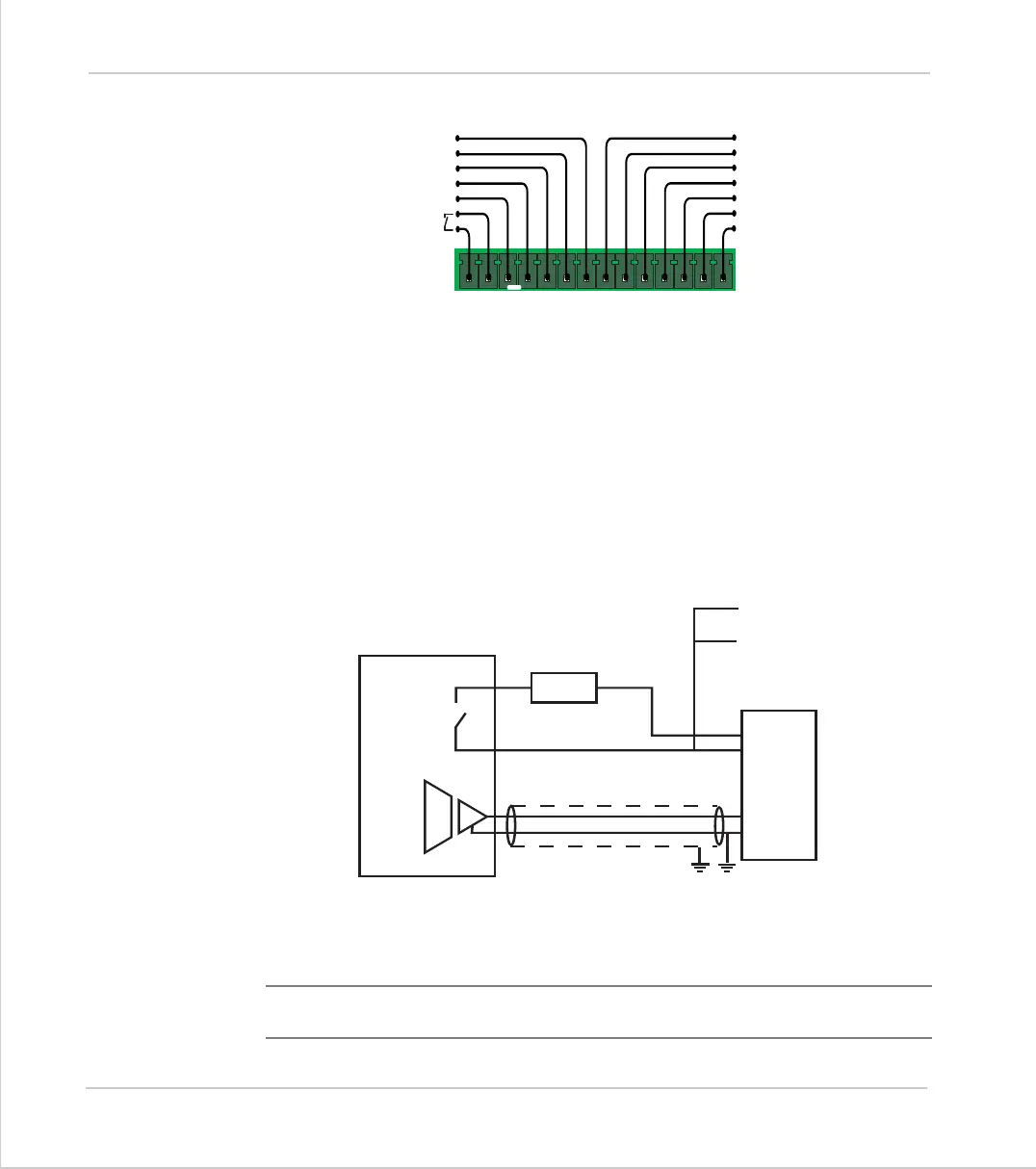

I/O Connector 3
WDOG / Ref. Enc. / Analog Outputs
Reference Encoder (Axis 4) 0v
Reference Encoder (Axis 4) A
Reference Encoder (Axis 4) /A
Reference Encoder (Axis 4)/B
Reference Encoder (Axis 4) Z
Reference Encoder (Axis 4) /Z
Analog Outputs 0v (Axes 0-3)
Analog Output - Axis 0
Analog Output - Axis 1
Analog Output - Axis 2
Analog Output - Axis 3
Reference Encoder (Axis 4) B
Amplifier Enable Relay
(Watchdog)
0v
24v
Amplifier
Enable 1
Amplifier
Enable 2
V+
V -
0v
Enable
VIN +
VIN -
SERVO
AMPLIFIER
To other axis enables
Trio Controller
