Motion Coordinator Technical Reference Manual
Installation 3-3
Motion Coordinator MC202
Motion Coordinator MC202
Packaging

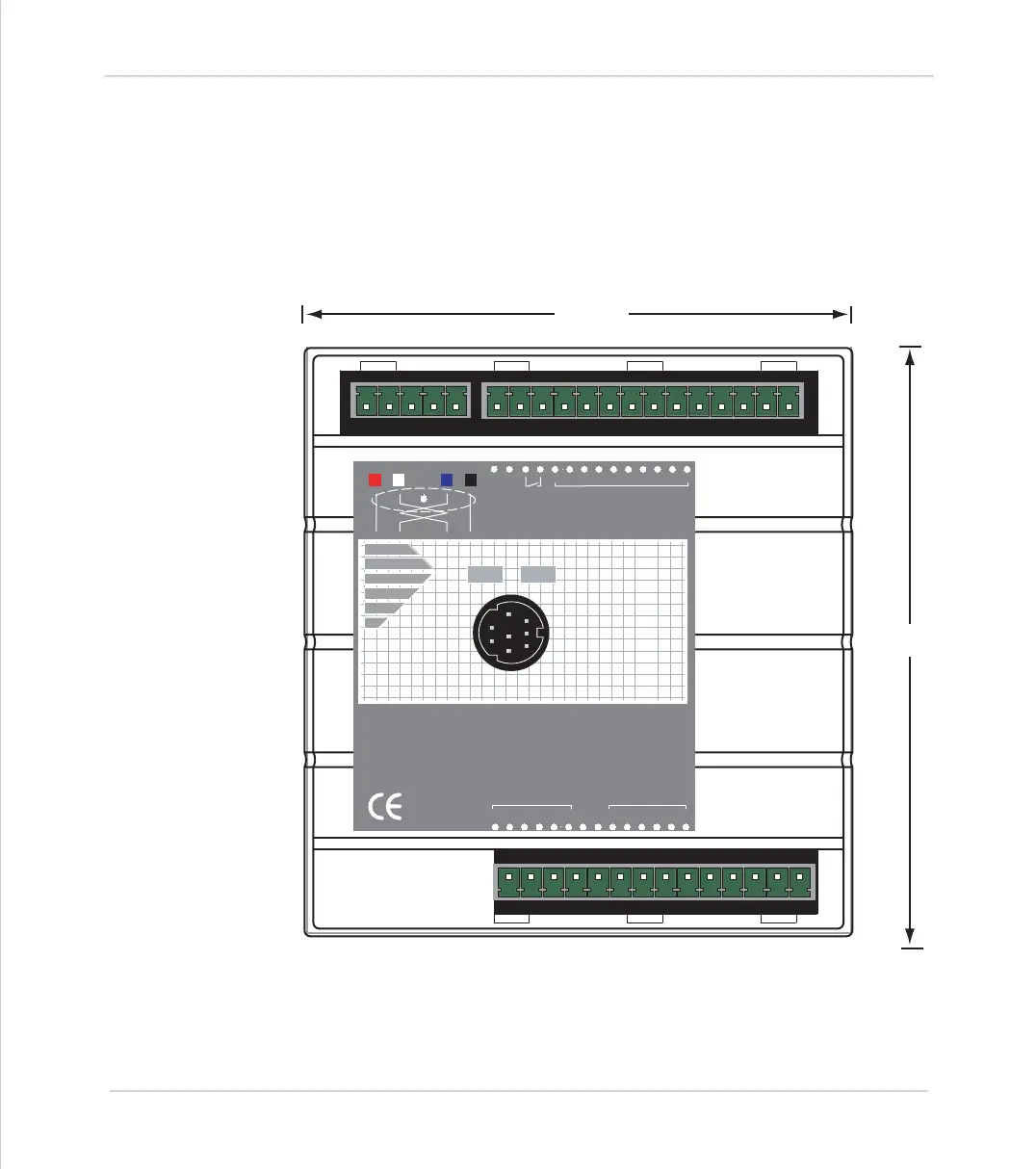

The Motion Coordinator MC202 is a DIN rail mounting product. The module is held
by a spring clip on its bottom edge on to the DIN rail. The unit should be mounted
vertically and should not be subjected to mechanical loading. Care should be
taken to ensure that there is a free flow of air vertically around the unit. The
dimensions are as shown below.
012389101124v
Trio
P165
MC202
Motion
Coordinator
0vV+V-
Input/Outputs
5v 0v
01234
5
AXIS 0
012345
AXIS 1
94mm
101mm
Including the disconnect terminal, the unit is 48mm deep.
When the serial connector is fitted, around 60mm more depth is required.
